Data Link Connector 3

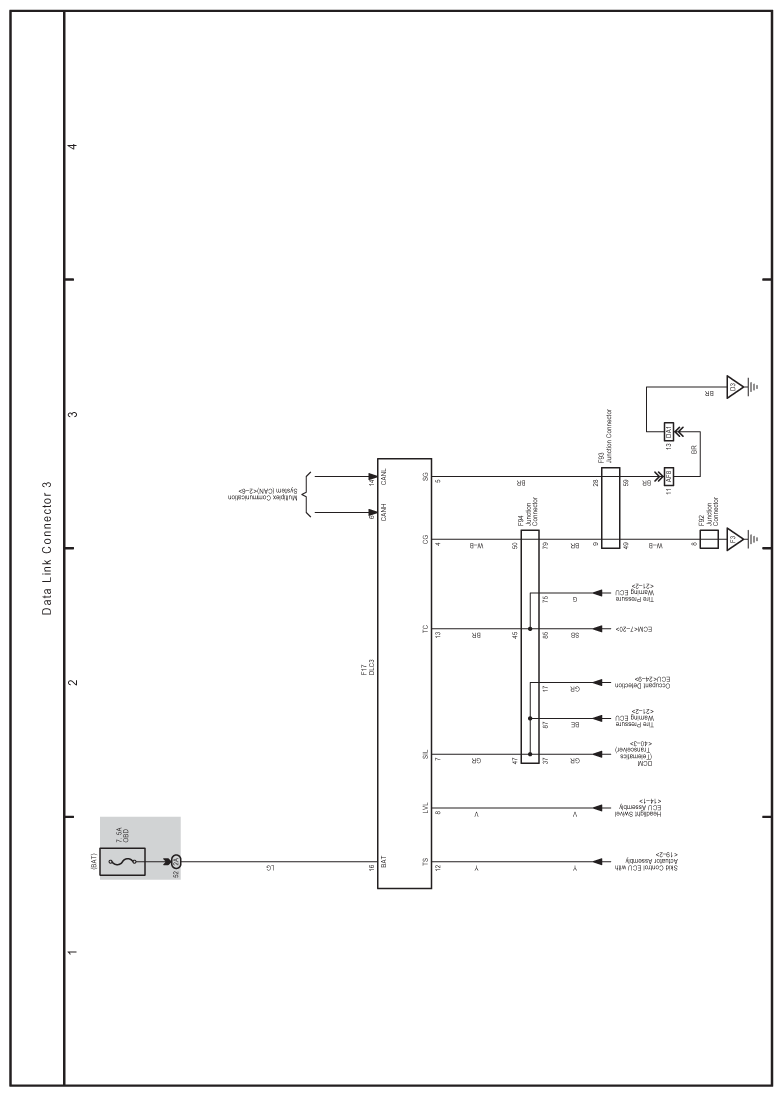

Fig 1: Data Link Connector Electrical Wiring Diagram

G07576403

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
