Climate Control Seat

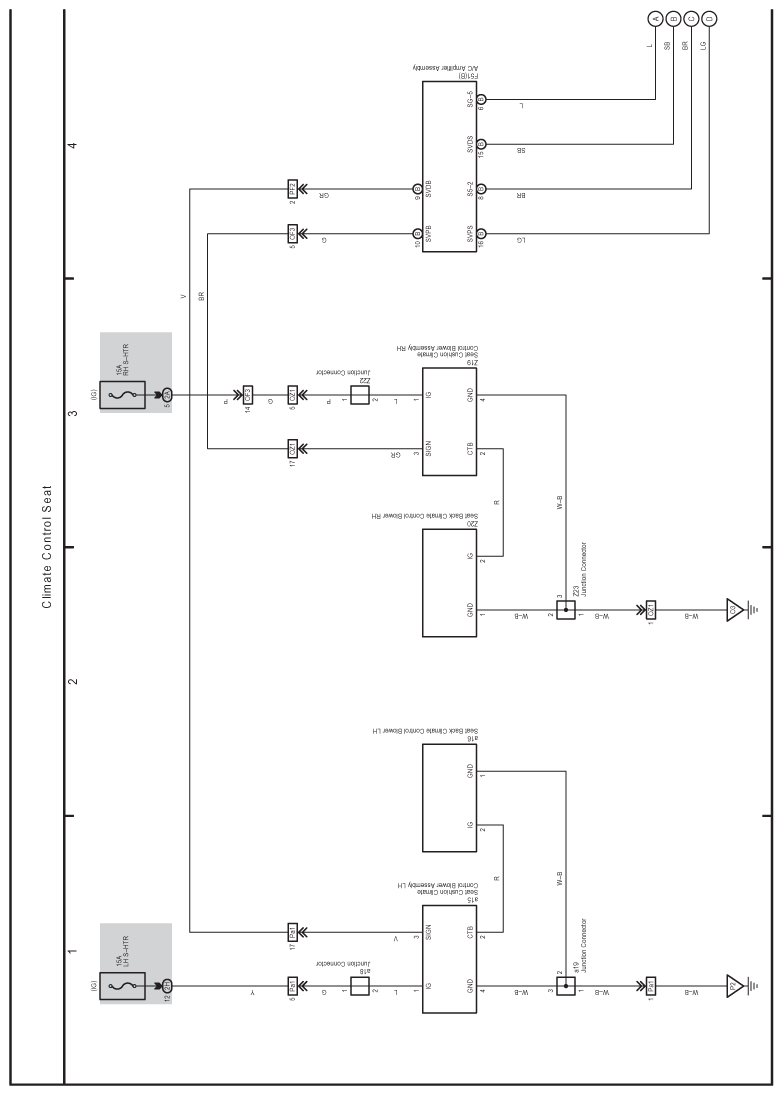

Fig 1: Climate Control Seat Electrical Wiring Diagram (1 Of 2)
G07576446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

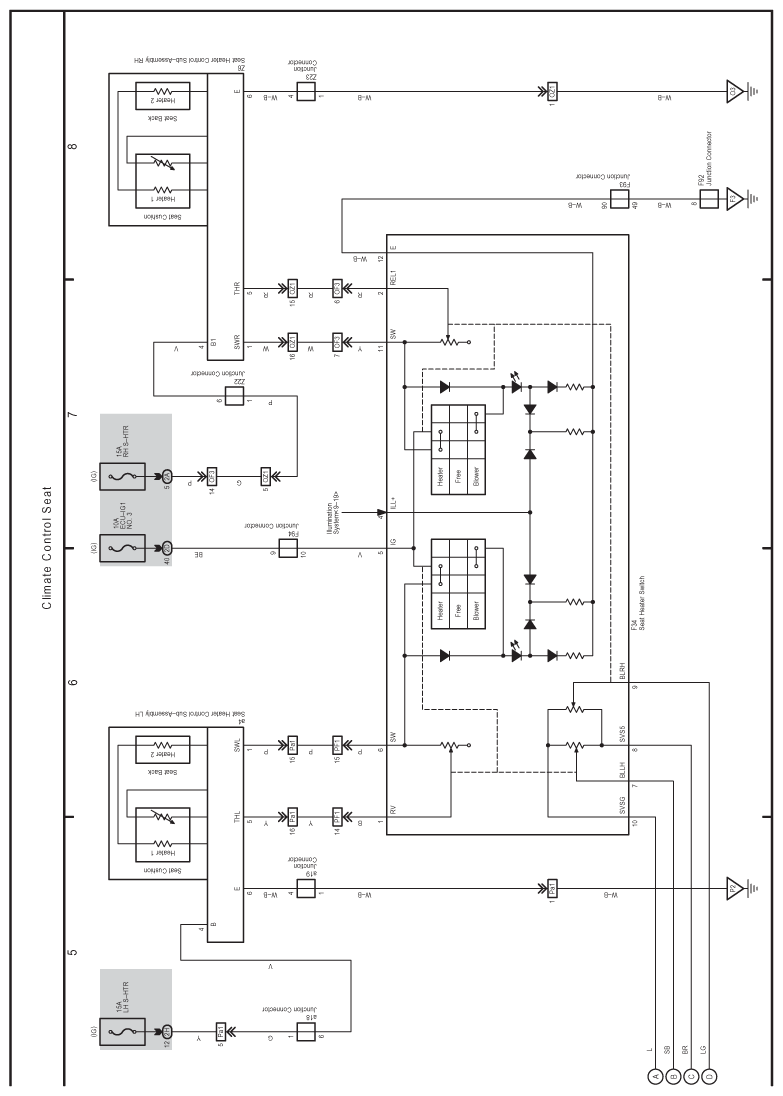

Fig 2: Climate Control Seat Electrical Wiring Diagram (2 Of 2)
G07576447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
