Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC and VSC)

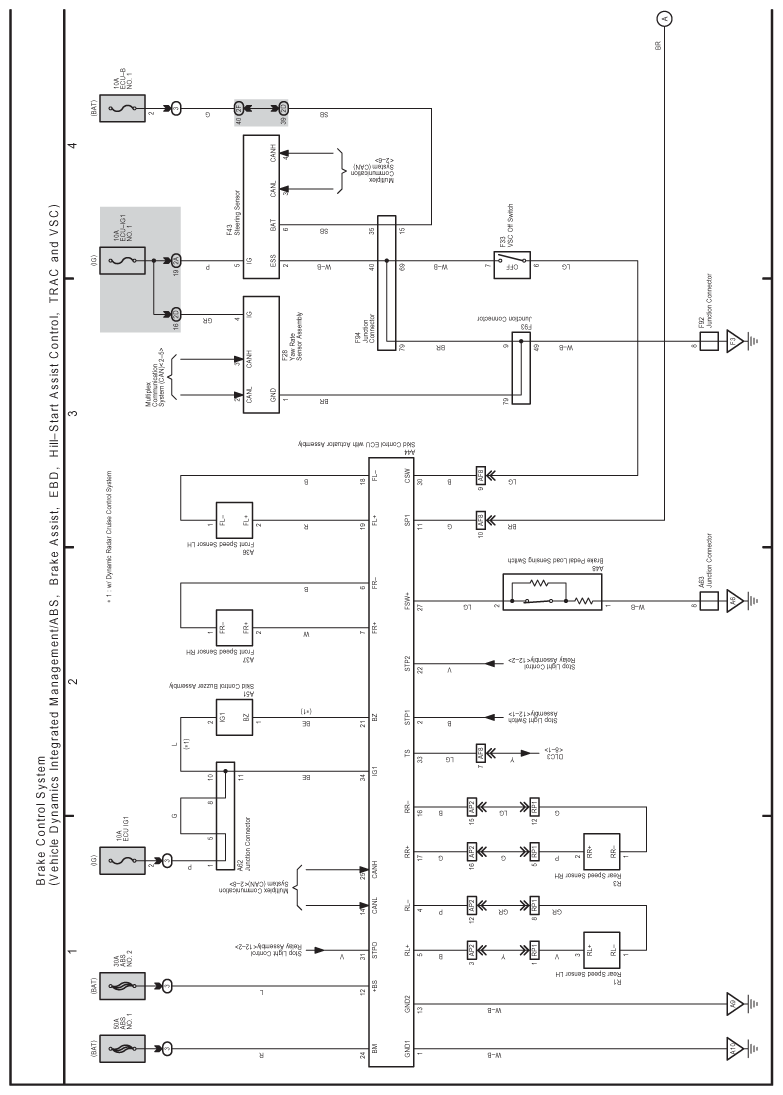

Fig 1: Brake Control System Electrical Wiring Diagram (1 Of 2)
G07576426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

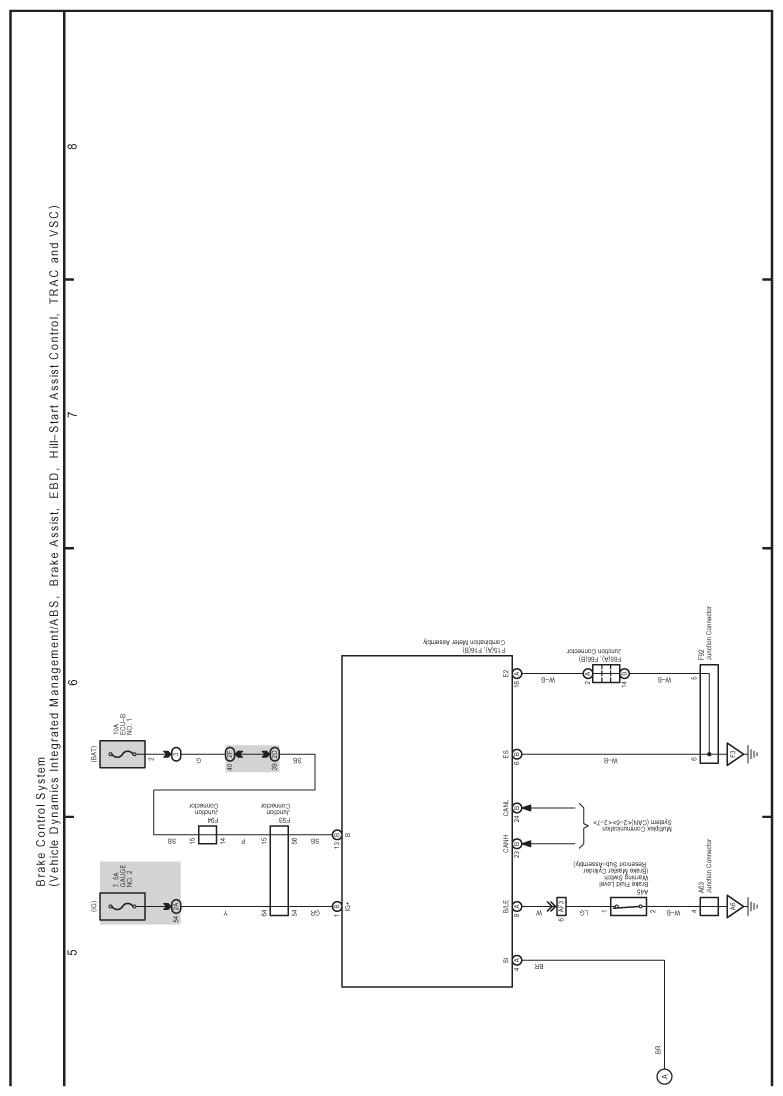

Fig 2: Brake Control System Electrical Wiring Diagram (2 Of 2)
G07576427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
