Automatic Glare-Resistant EC Mirror with Compass, Garage Door Opener, Parking Assist (Rear View Monitor w/o LEXUS Navigation System)

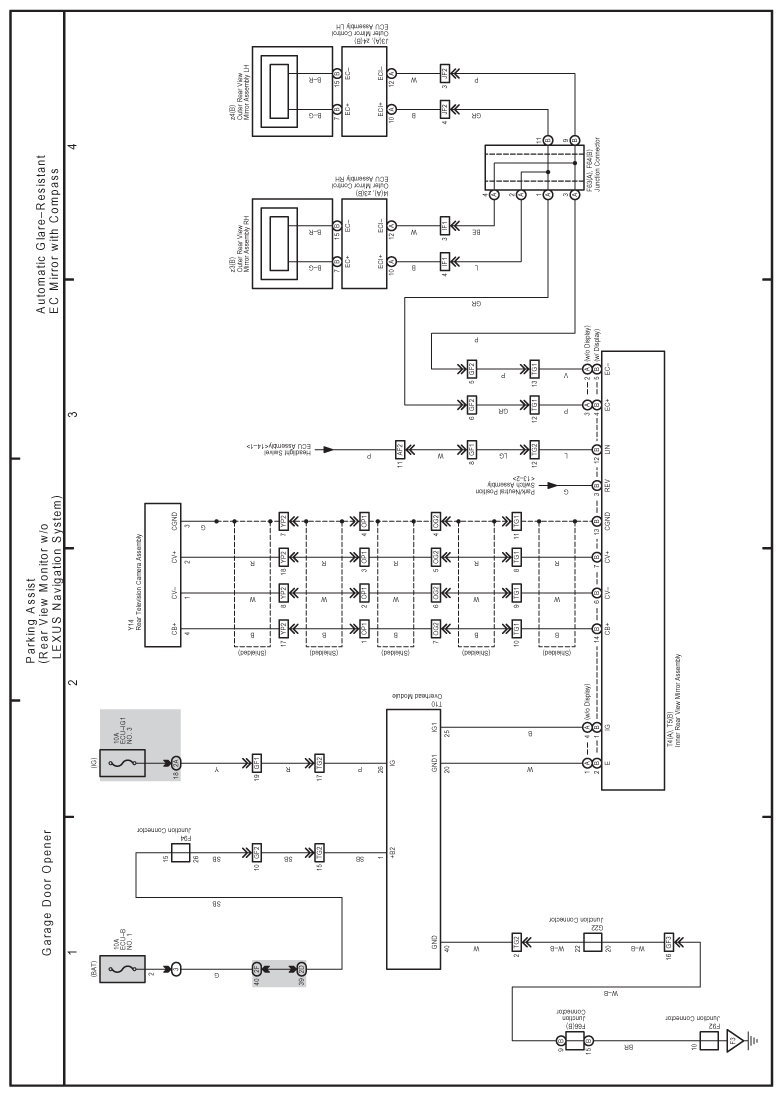

Fig 1: Parking Assist (Rear View Monitor W/O Lexus Navigation System) Electrical Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
