Electrical Wiring Routing
>>
Position of Parts in Seat
Position of Parts in Seat

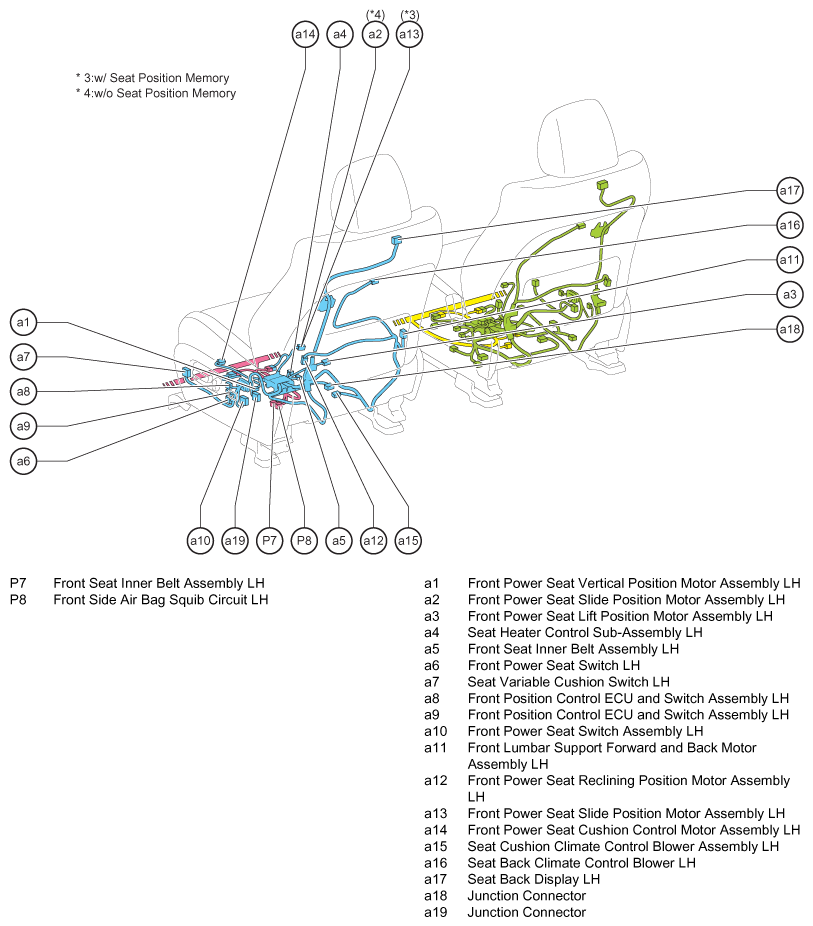

Fig 1: Seat Parts (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

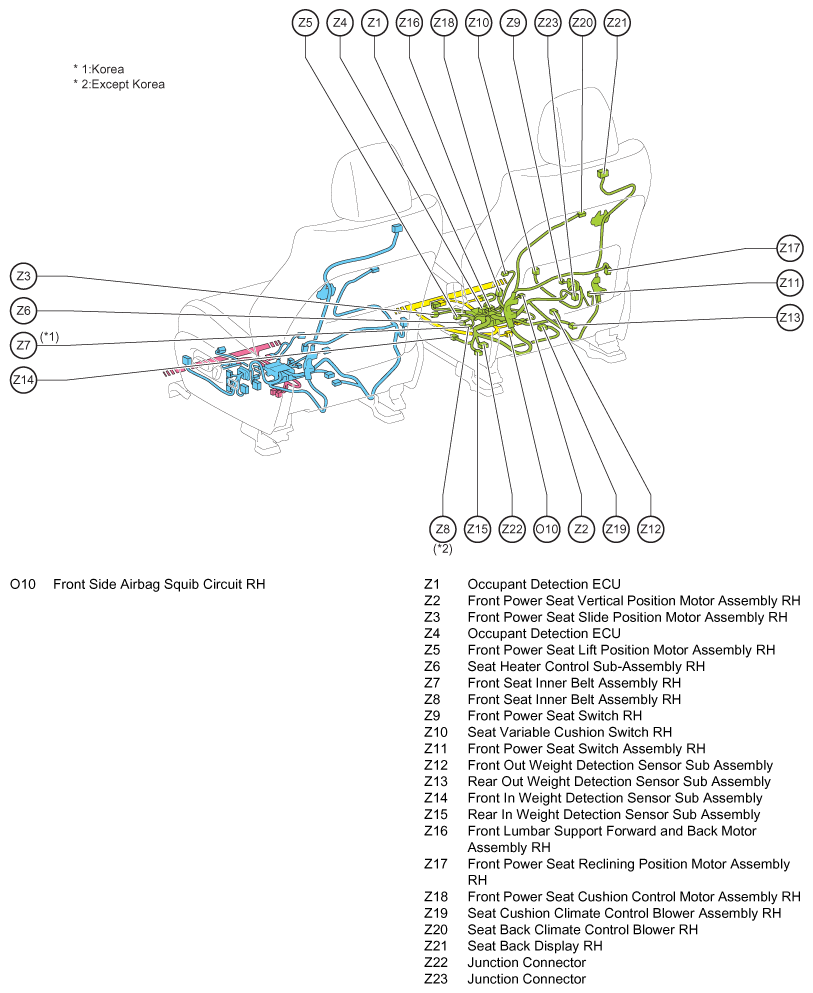

Fig 2: Seat Parts (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
