Position of Parts in Engine Compartment

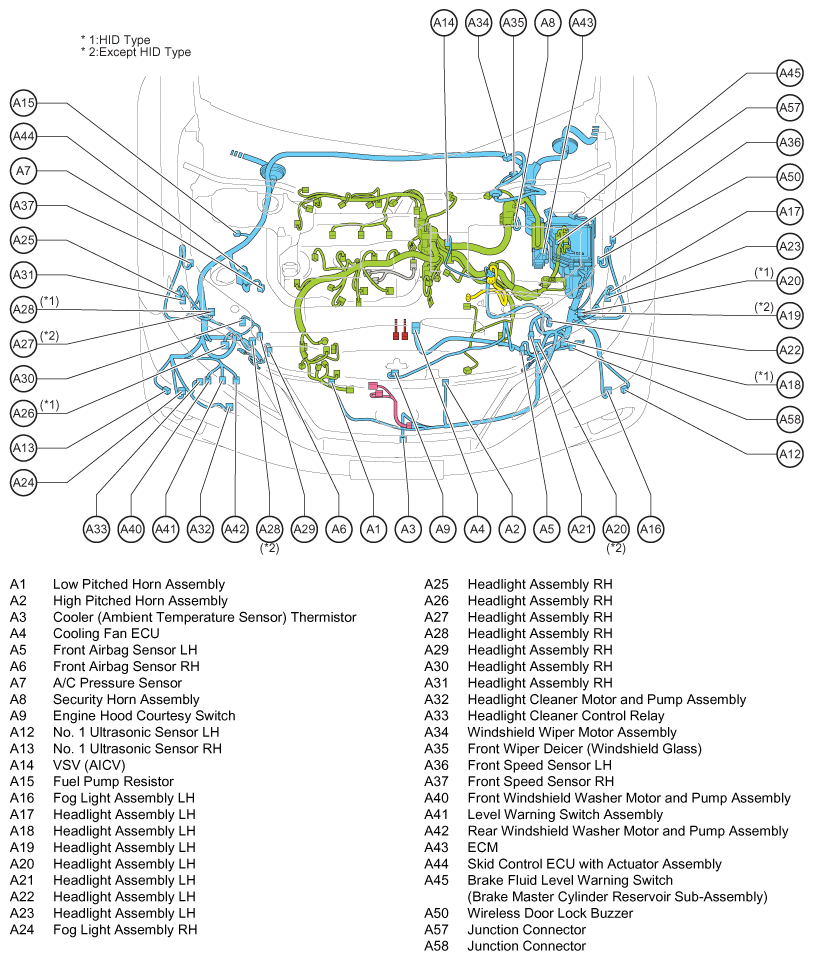

Fig 1: Engine Compartment Parts (1 Of 2)
G07575962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

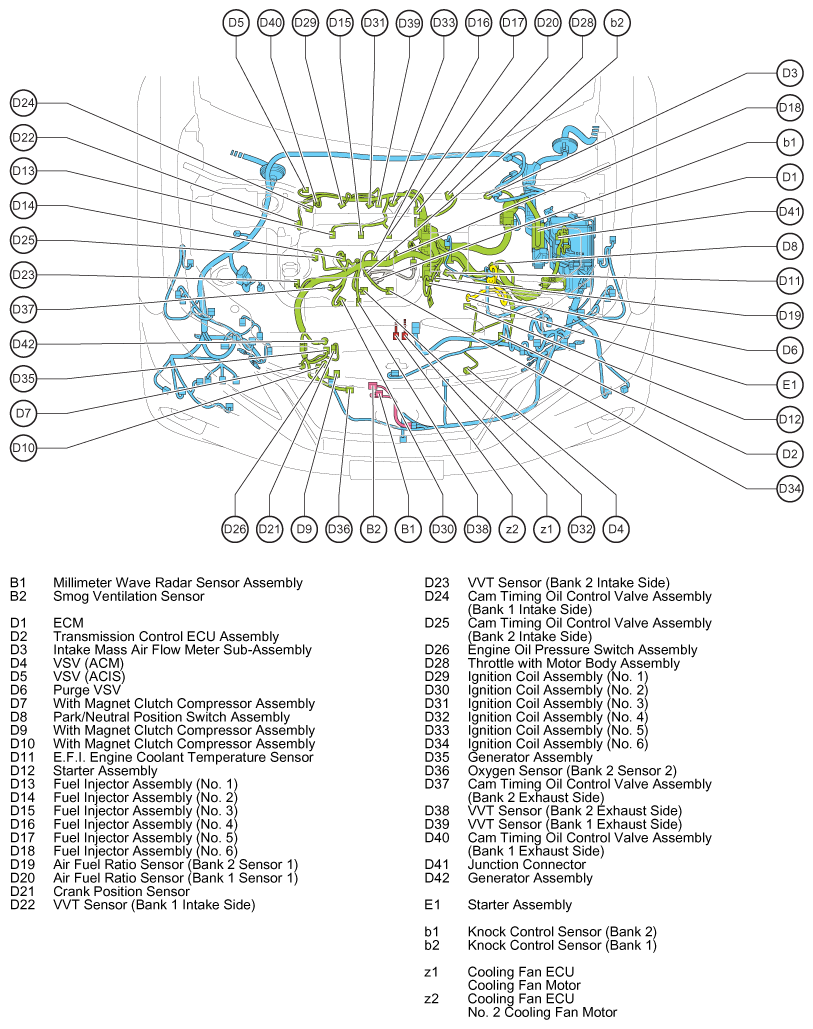

Fig 2: Engine Compartment Parts (2 Of 2)
G07575963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
