Position of Parts in Body — 2011 Lexus RX 350 AWD Service Manual ~ LEMON Manuals

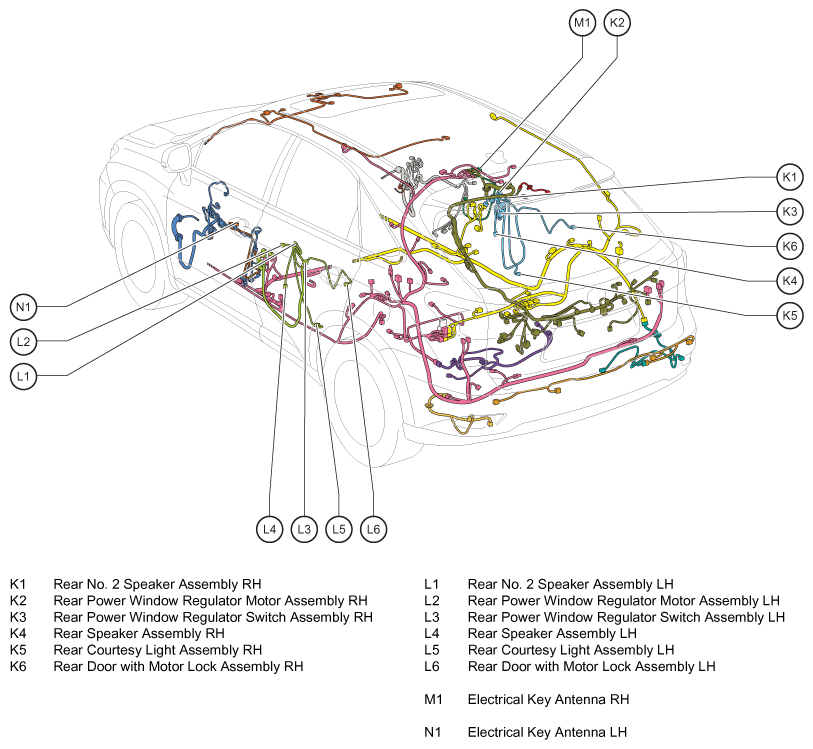

Fig 1: Body Parts (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

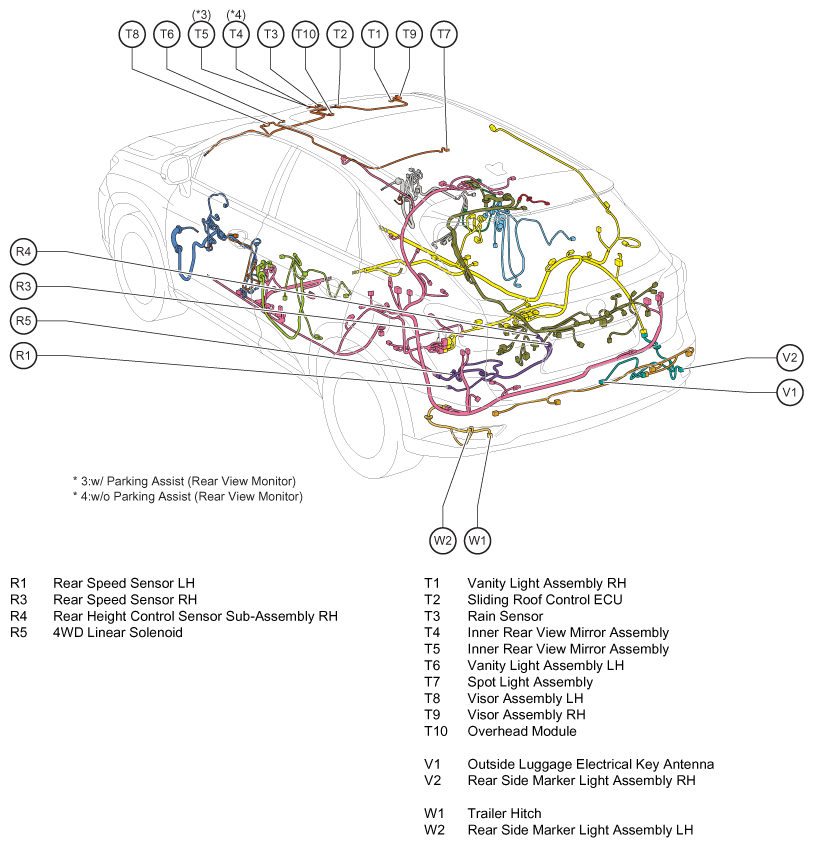

Fig 2: Body Parts (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

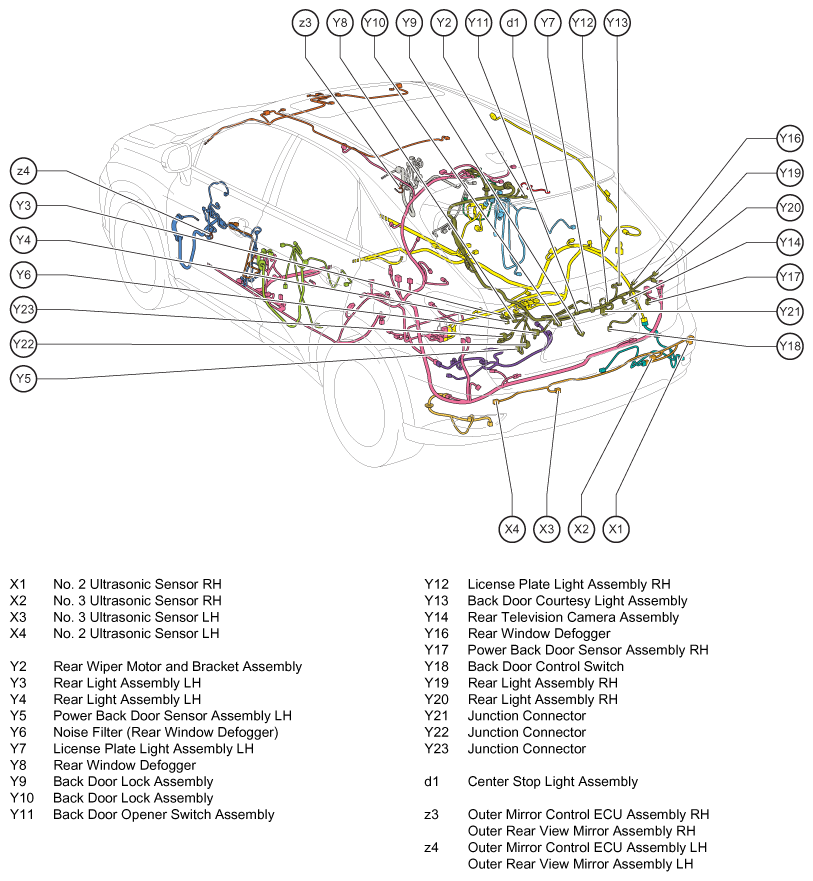

Fig 3: Body Parts (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

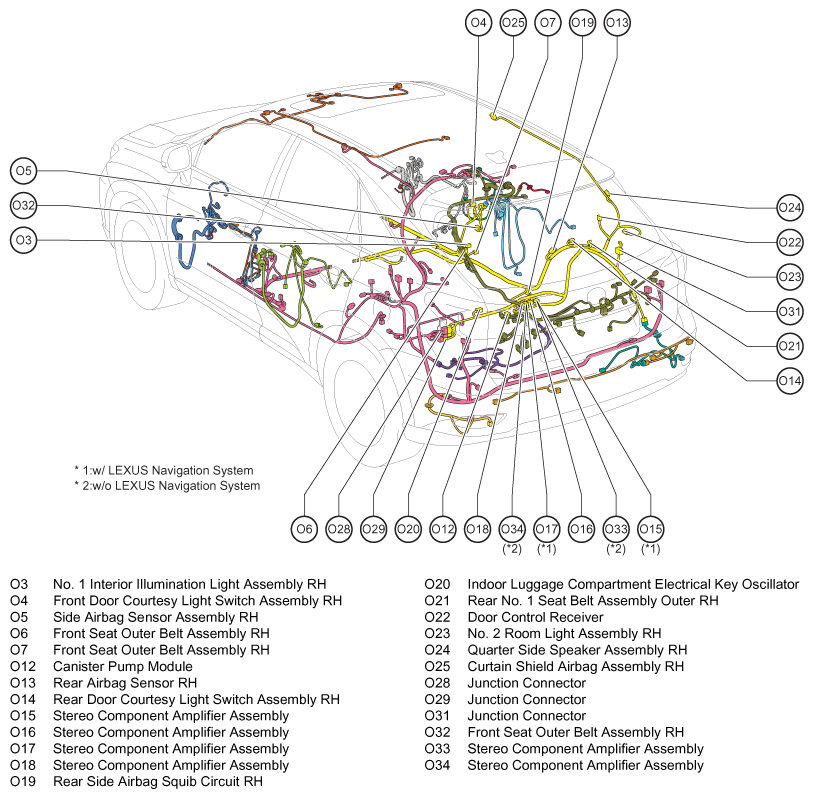

Fig 4: Body Parts (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

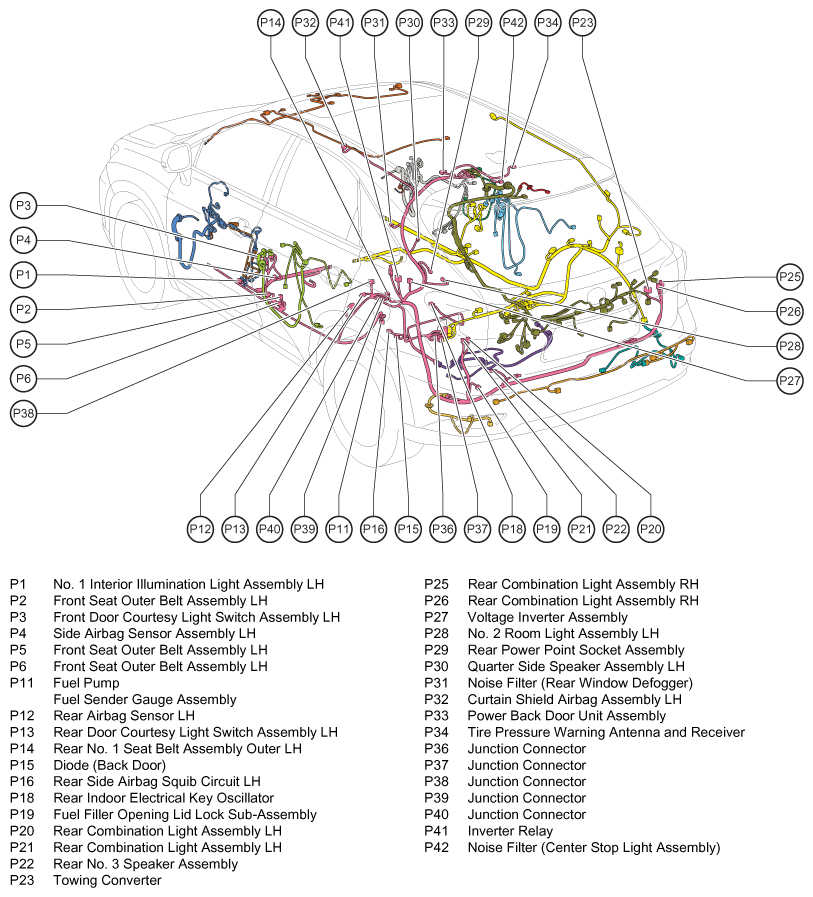

Fig 5: Body Parts (5 Of 6)

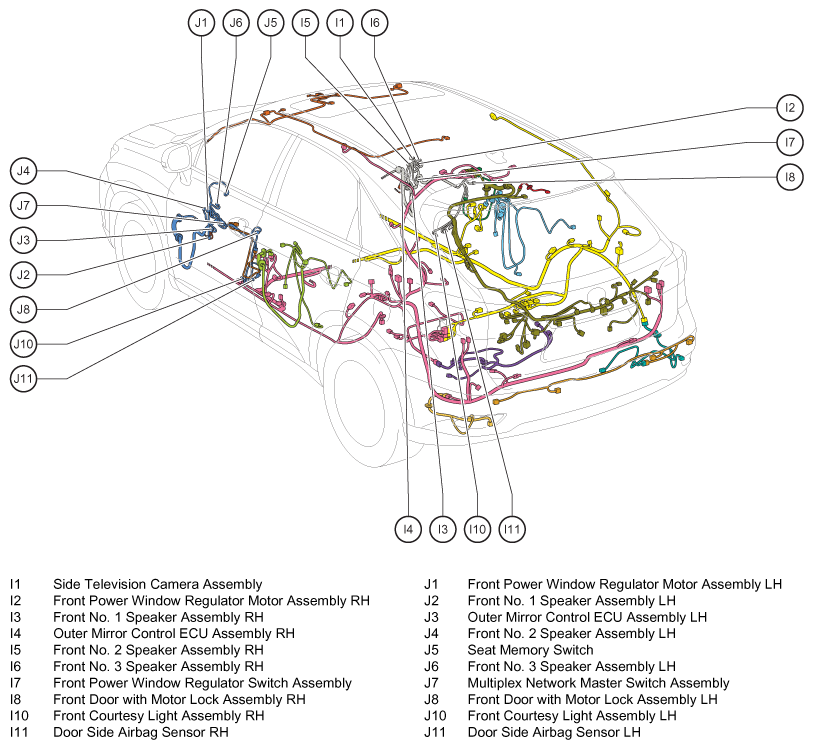

Fig 6: Body Parts (6 Of 6)
