REAR DRIVE SHAFT ASSEMBLY (for TMMC Made): Components: Illustration

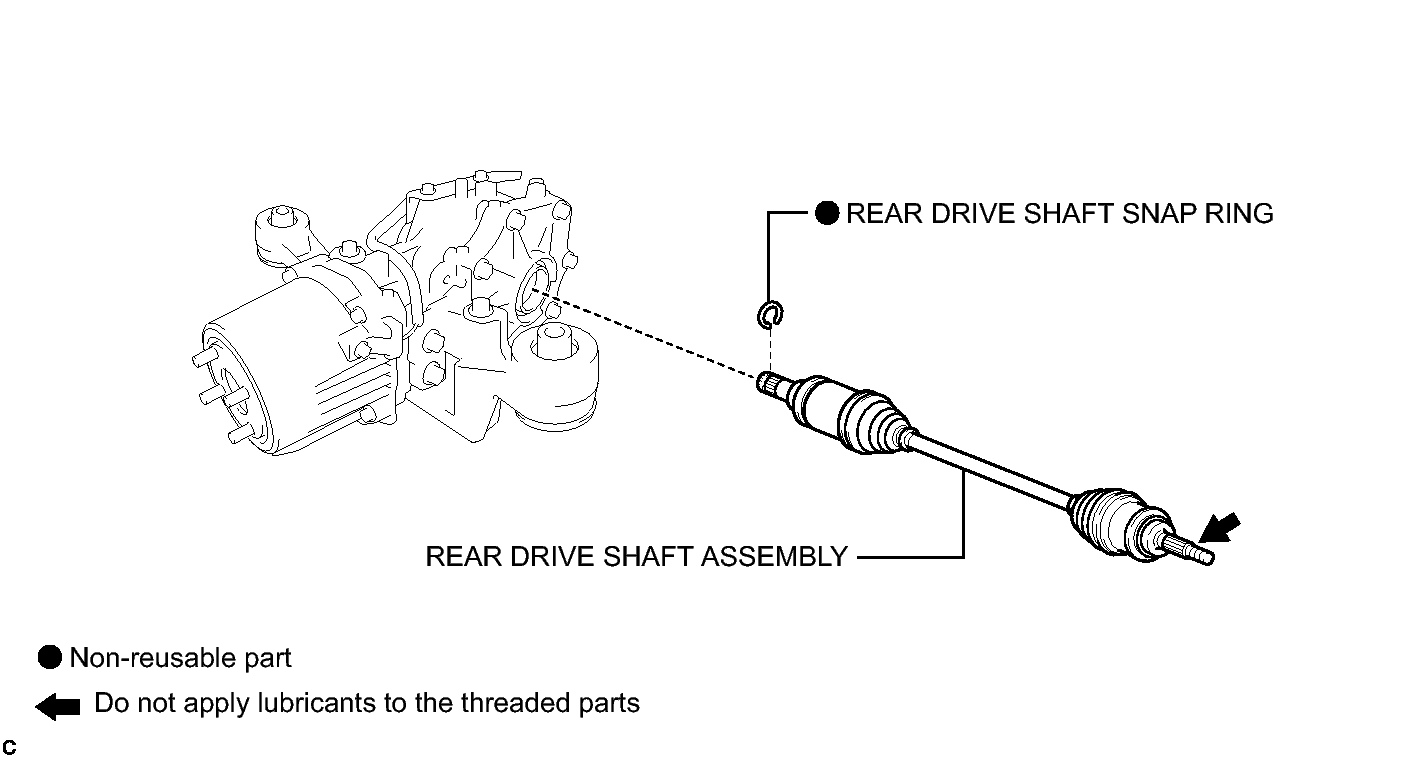

Fig 1: Identifying Rear Drive Shaft Assembly (for TMMC Made) Replacement Components (1 of 2)
GTY270739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

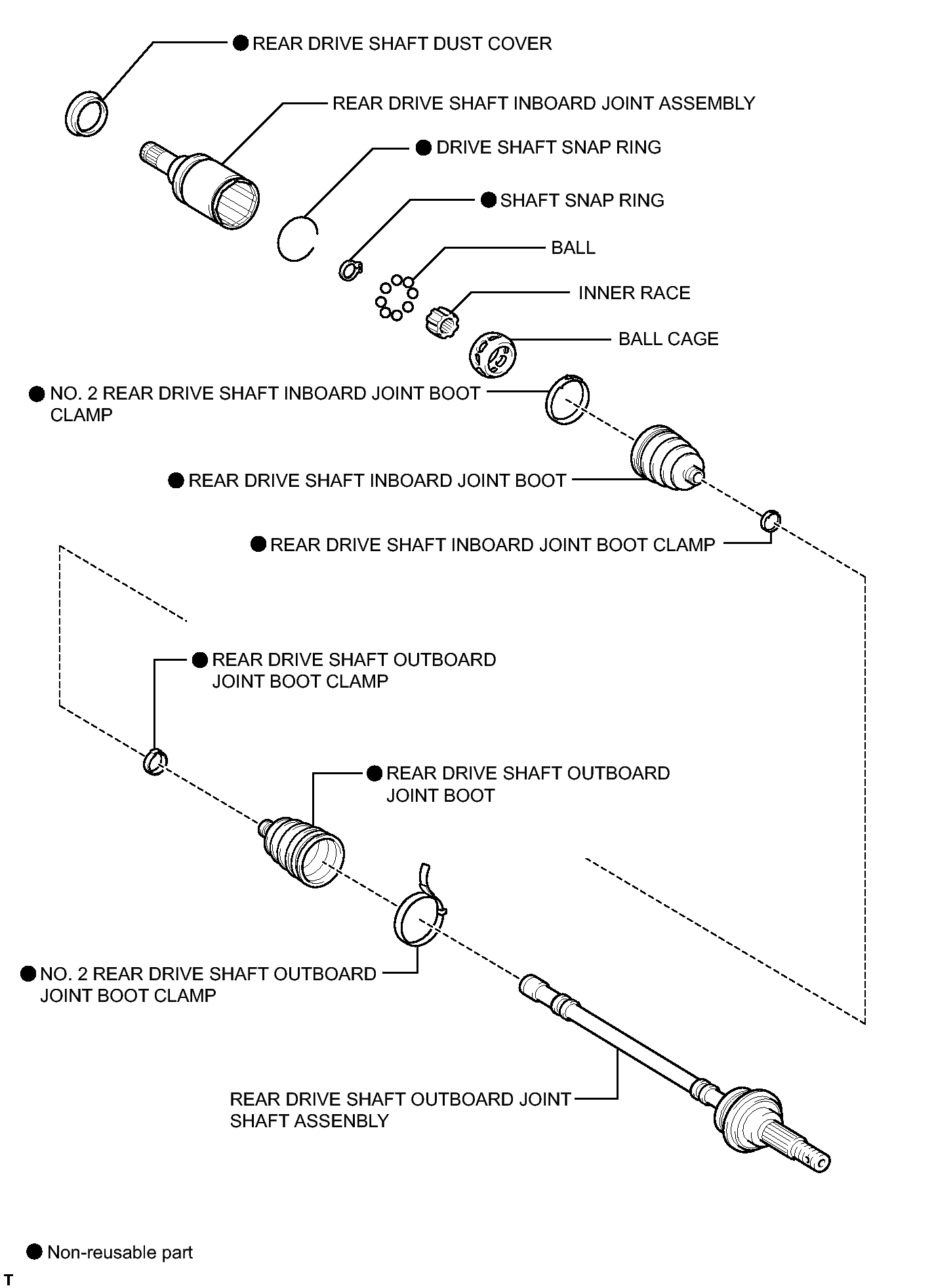

Fig 1: Identifying Rear Drive Shaft Assembly (for TMMC Made) Replacement Components (2 of 2)
GTY254358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
