REAR DRIVE SHAFT ASSEMBLY (for TMC Made): Components: Illustration

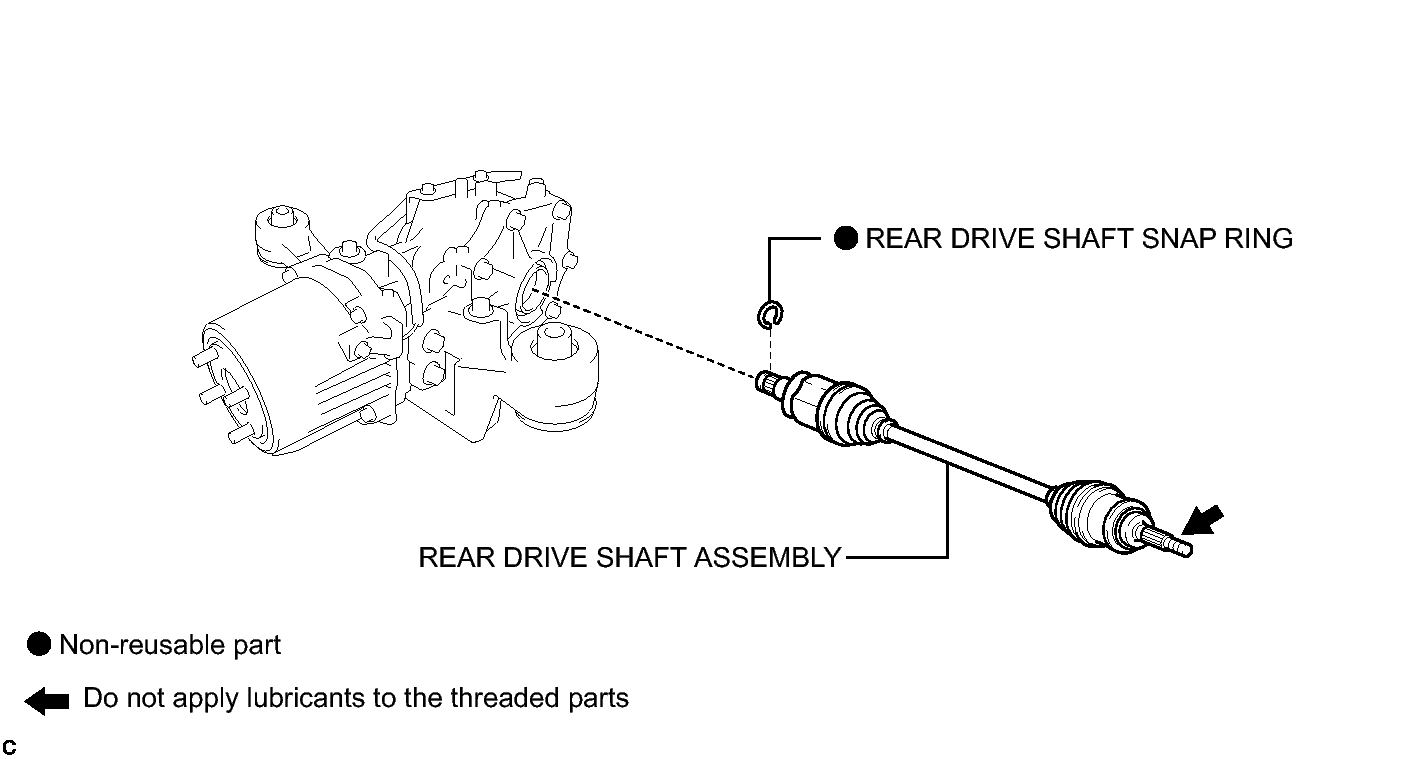

Fig 1: Identifying Rear Drive Shaft Assembly (for TMC Made) Replacement Components (1 of 2)
GTY263286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

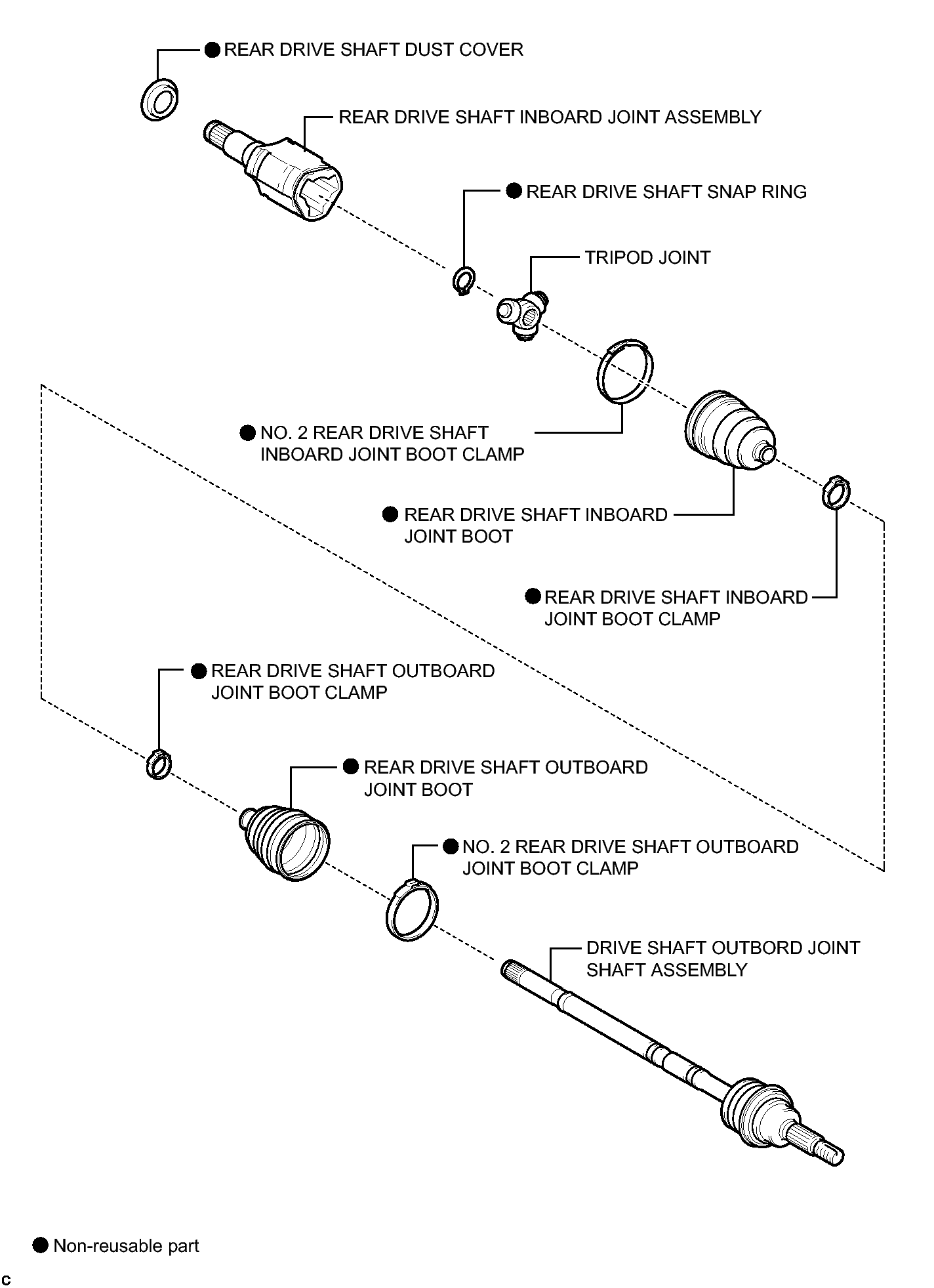

Fig 1: Identifying Rear Drive Shaft Assembly (for TMC Made) Replacement Components (2 of 2)
GTY272780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
