Parking Brake Switch: Components: Illustration

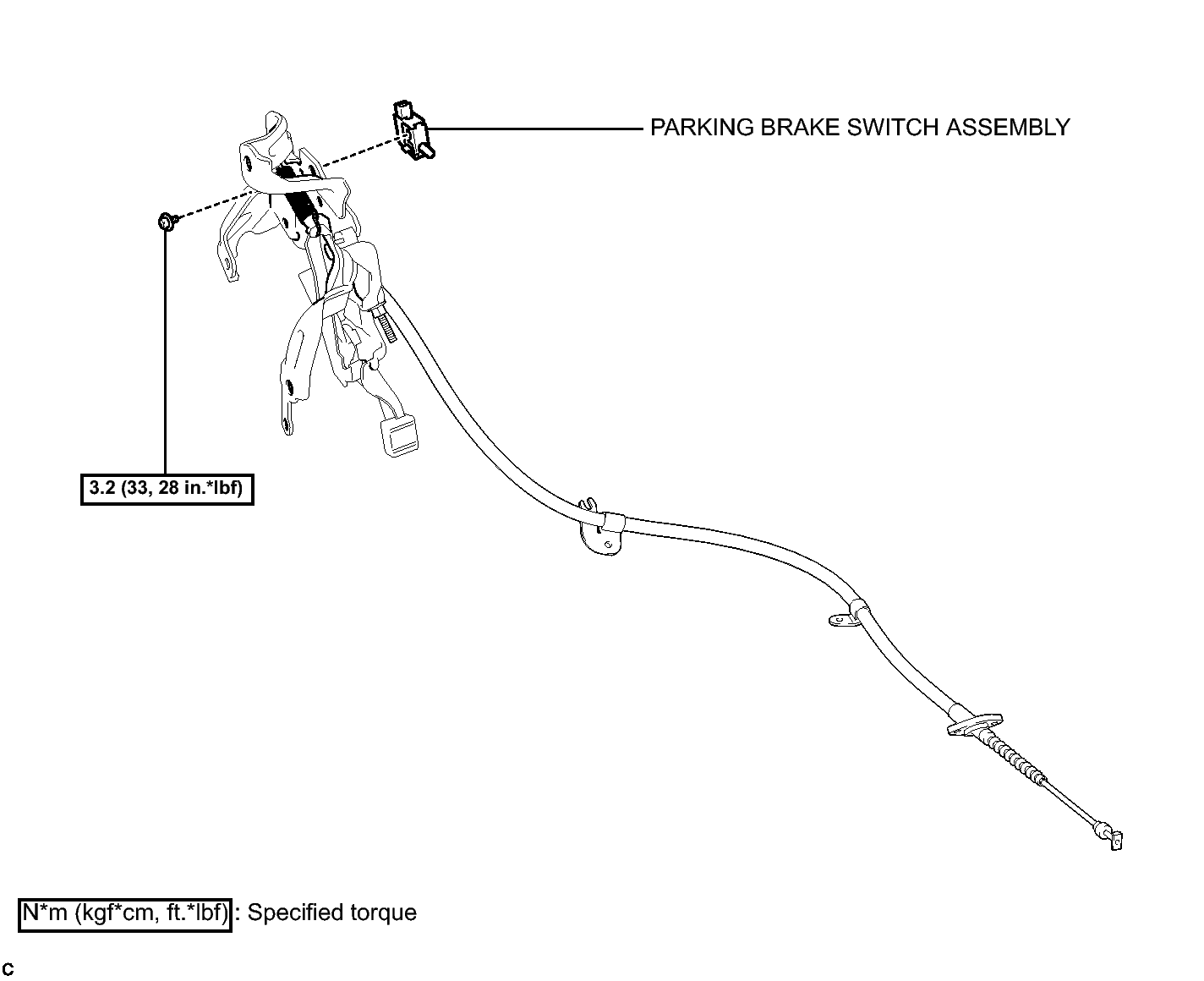

Fig 1: Identifying Parking Brake Switch Replacement Components With Torque Specifications

GTY287403

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
