Parking Brake Pedal: Installation: Installation

  1. INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY
    1. Install the parking brake control pedal assembly with the 3 nuts.

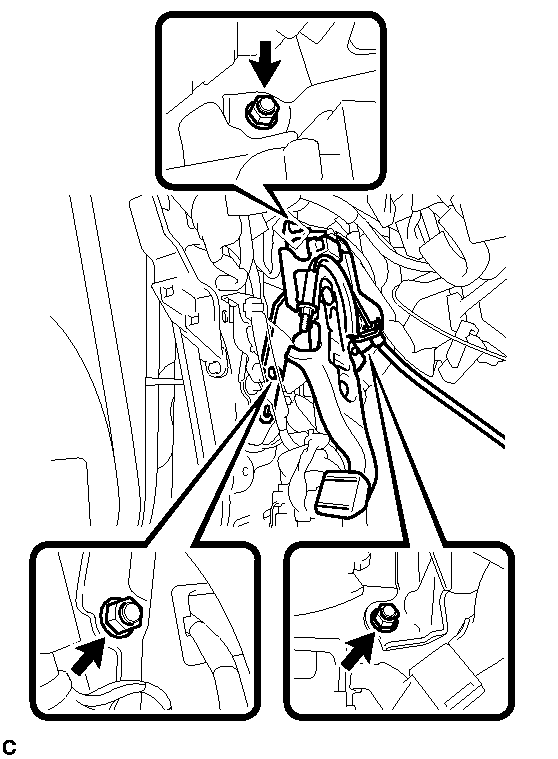

      Fig 1: Remove The 3 Nuts
      GTY279158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)

    2. Engage the 2 clamps to install the wire harness clamp.
      Fig 2: Identifying Wire Harness Clamp
      GTY279345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the parking brake switch connector.
      Fig 3: Identifying Parking Brake Switch Connector
      GTY277003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Insert the No. 1 parking brake cable assembly toward the outside of the cabin.
      Fig 4: Location of No. 1 Parking Brake Cable Assembly
      GTY203861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the No. 1 parking brake cable assembly with the 2 bolts and 2 nuts.

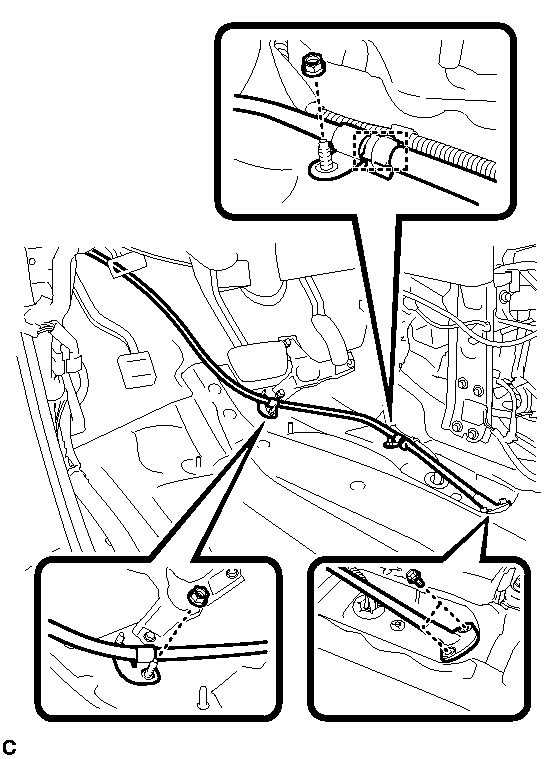

      Fig 5: Parking Brake Control Pedal Assembly
      GTY276764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      Nut

      Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

    6. Install the clamp.
    7. Temporarily install the lock nut.
      Fig 6: Lock Nut
      GTY352357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Nut

      HINT:

      After adjusting parking brake pedal travel, tighten the lock nut.

  2. INSTALL INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY  . Refer to INSTALLATION - Step 2
  3. INSTALL PARKING BRAKE EQUALIZER
    1. Install the parking brake equalizer to the No. 1 parking brake cable assembly as shown in the illustration.

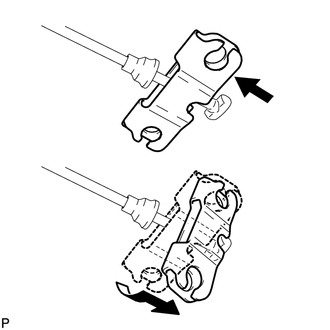

      Fig 7: Identifying Parking Brake Equalizer
      GTY188679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the rubber boot back as shown in the illustration.
      Fig 8: Sliding Rubber Boot Back
      GTY176531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY
    1. Connect the No. 3 parking brake cable assembly to the parking brake equalizer.
      Fig 9: Separating No. 3 Parking Brake Cable Assembly
      GTY277441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. CONNECT NO. 2 PARKING BRAKE CABLE ASSEMBLY

    HINT:

    Perform the same procedure as for the No. 3 parking brake cable assembly.

  6. INSTALL REAR ENGINE SERVICE COVER ASSEMBLY
    1. Install the rear engine service cover assembly with the 2 bolts.
      Fig 10: Identifying Rear Engine Service Cover Assembly
      GTY277240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL CENTER FRONT FLOOR COVER
    1. Engage the 4 clips to install the center front floor cover.

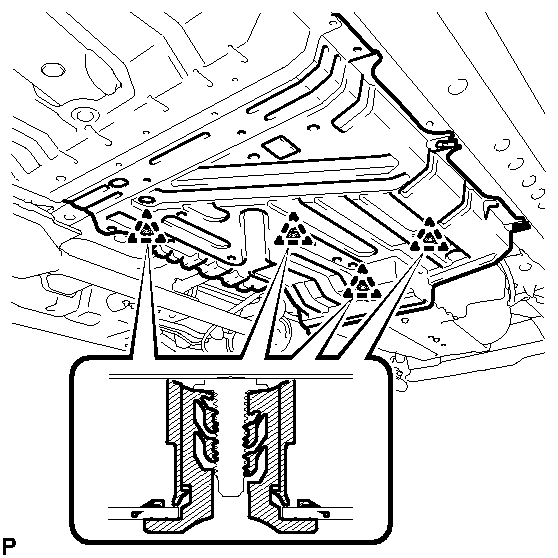

      Fig 11: Center Front Floor Cover
      GTY276698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 bolts, 2 screws and nut.

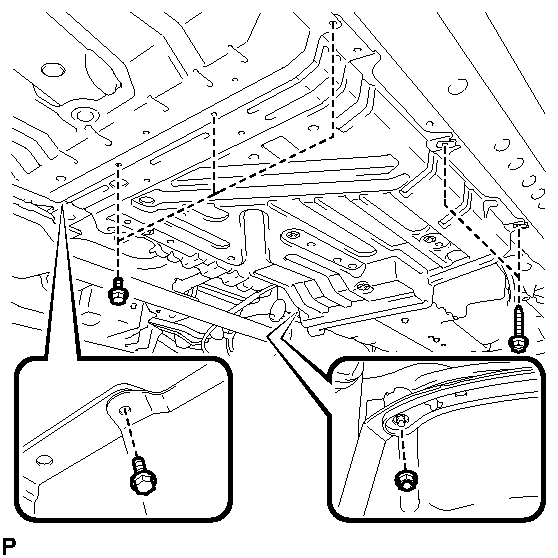

      Fig 12: Identifying Center Front Floor Cover Bolts, Screws And Nut
      GTY204317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL FRONT FLOOR FOOTREST
    1. Engage the 2 clips to install the front floor footrest.
      Fig 13: Identifying Front Floor Footrest
      GTY258864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR NO. 1 AIR DUCT
    1. Install the rear No. 1 air duct.
      Fig 14: Identifying Wire Harness Clamp & Rear No. 1 Air Duct
      GTY286976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the wire harness clamp.
  10. INSTALL REAR NO. 2 AIR DUCT
    1. Install the rear No. 2 air duct with the clip.
      Fig 15: Identifying Rear No. 2 Air Duct With The Clip
      GTY258645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the floor carpet.
  11. INSTALL CONSOLE BOX  . Refer to INSTALLATION - Step 23
  12. INSTALL FRONT CONSOLE BOX COVER  . Refer to INSTALLATION - Step 24
  13. INSTALL INSTRUMENT PANEL FINISH PANEL  . Refer to INSTALLATION - Step 27
  14. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY

    HINT:

    Refer to the instructions for Installation of the driver side knee airbag assembly. Refer to INSTALLATION .

  15. INSTALL REAR CONSOLE BOX ASSEMBLY

    HINT:

    Refer to the instructions for Installation of the rear console box. Refer to INSTALLATION .

  16. INSTALL FRONT SEAT ASSEMBLY LH

    HINT:

    Refer to the instructions for Installation of the front seat assembly. Refer to INSTALLATION .

  17. ADJUST PARKING BRAKE SHOE CLEARANCE AND PARKING BRAKE PEDAL TRAVEL  . Refer to ADJUSTMENT - Step 2
  18. INSPECT BRAKE WARNING LIGHT  . Refer to ADJUSTMENT - Step 3
