Parking Brake Assembly: Components: Illustration

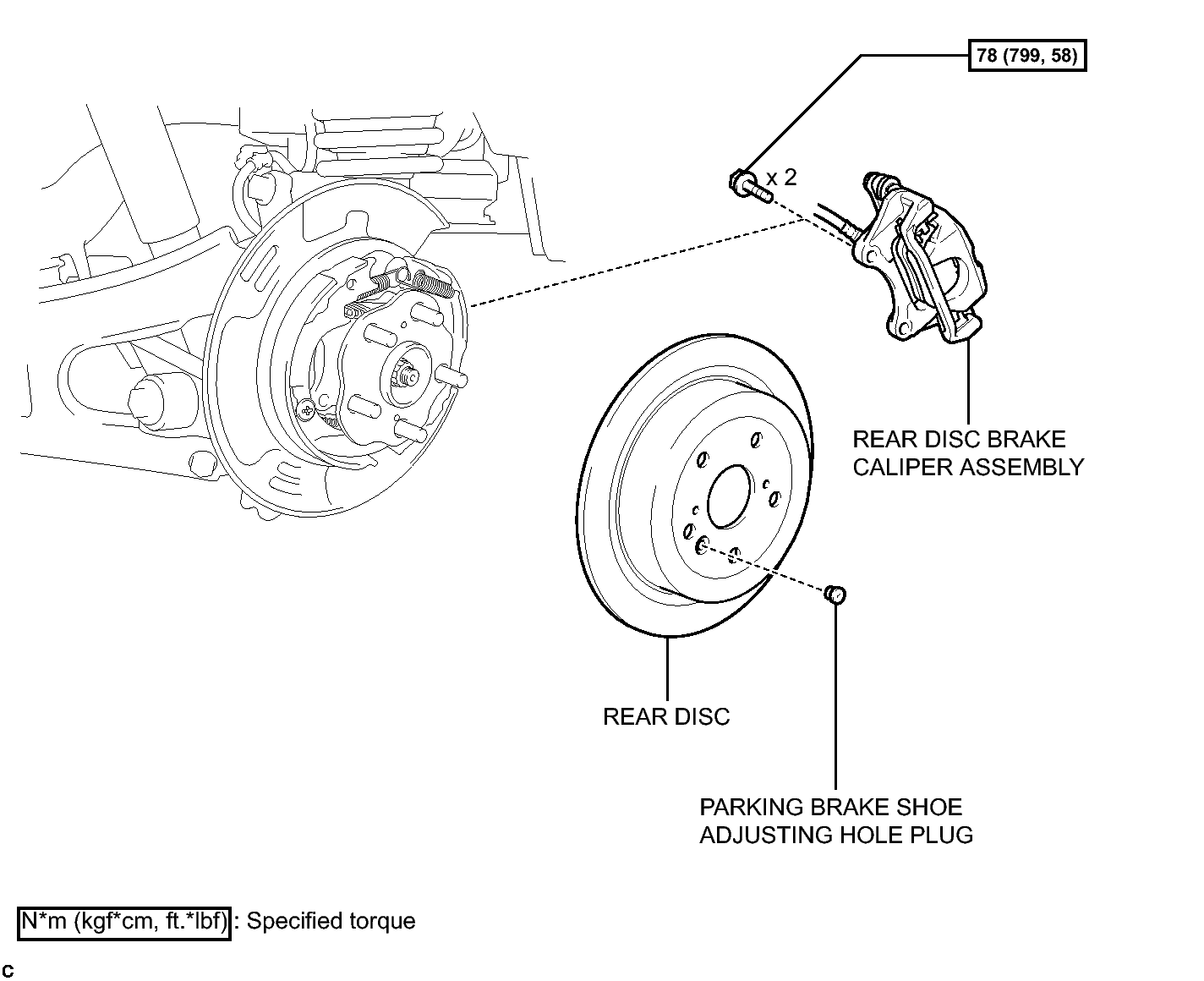

Fig 1: Identifying Parking Brake Assembly Replacement Components With Torque Specifications (1 Of 4)
GTY259849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

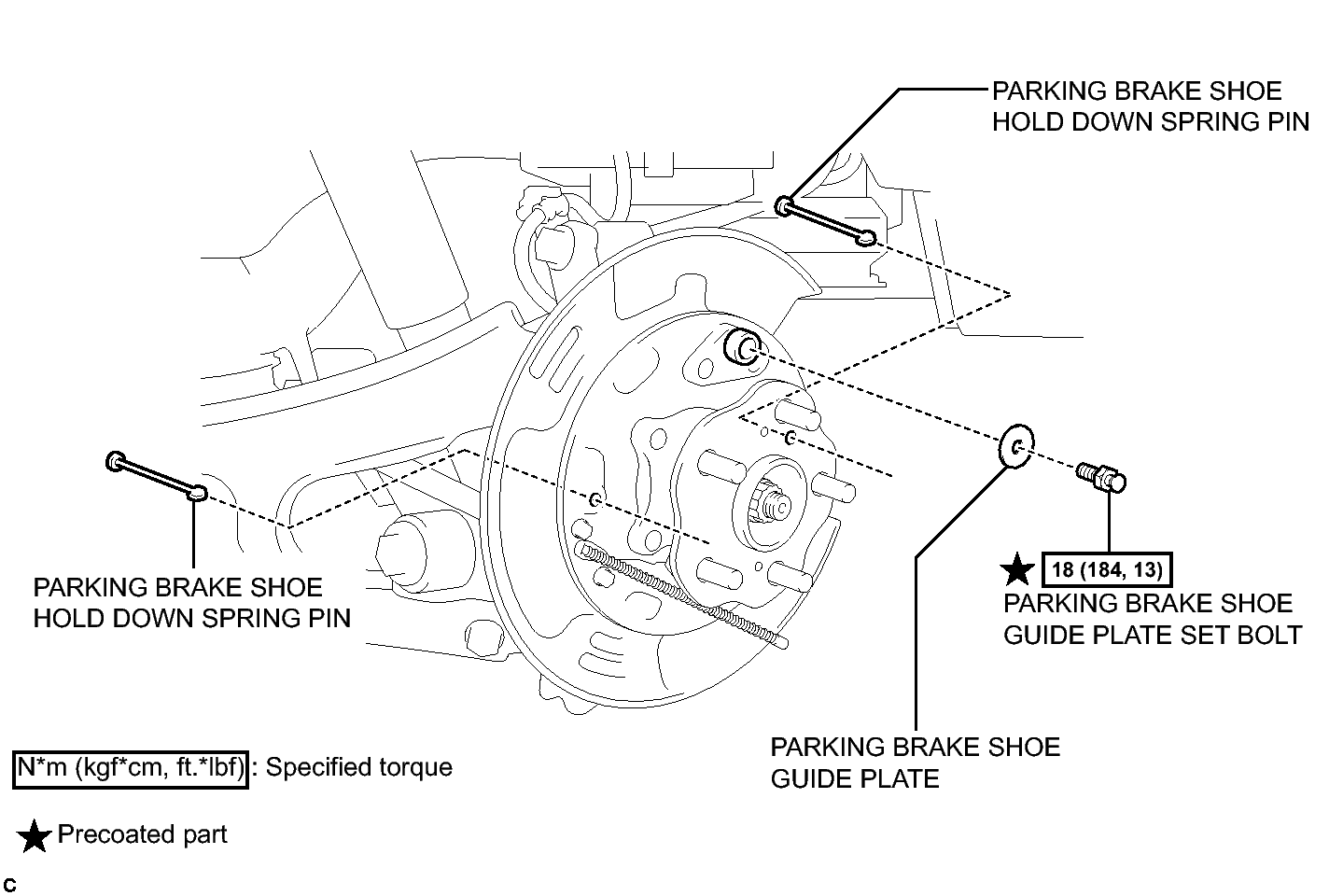

Fig 1: Identifying Parking Brake Assembly Replacement Components (2 Of 4)
GTY279404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

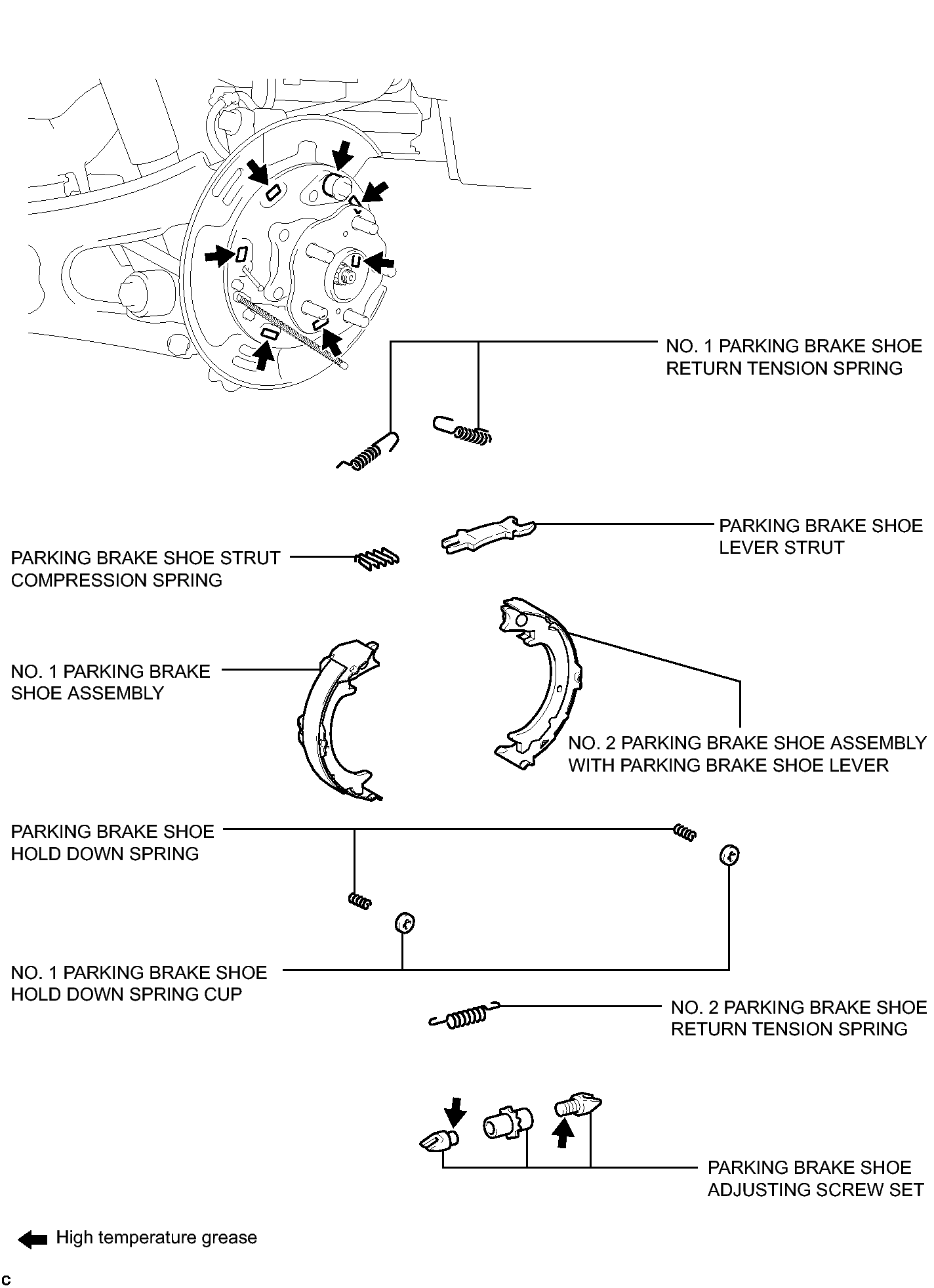

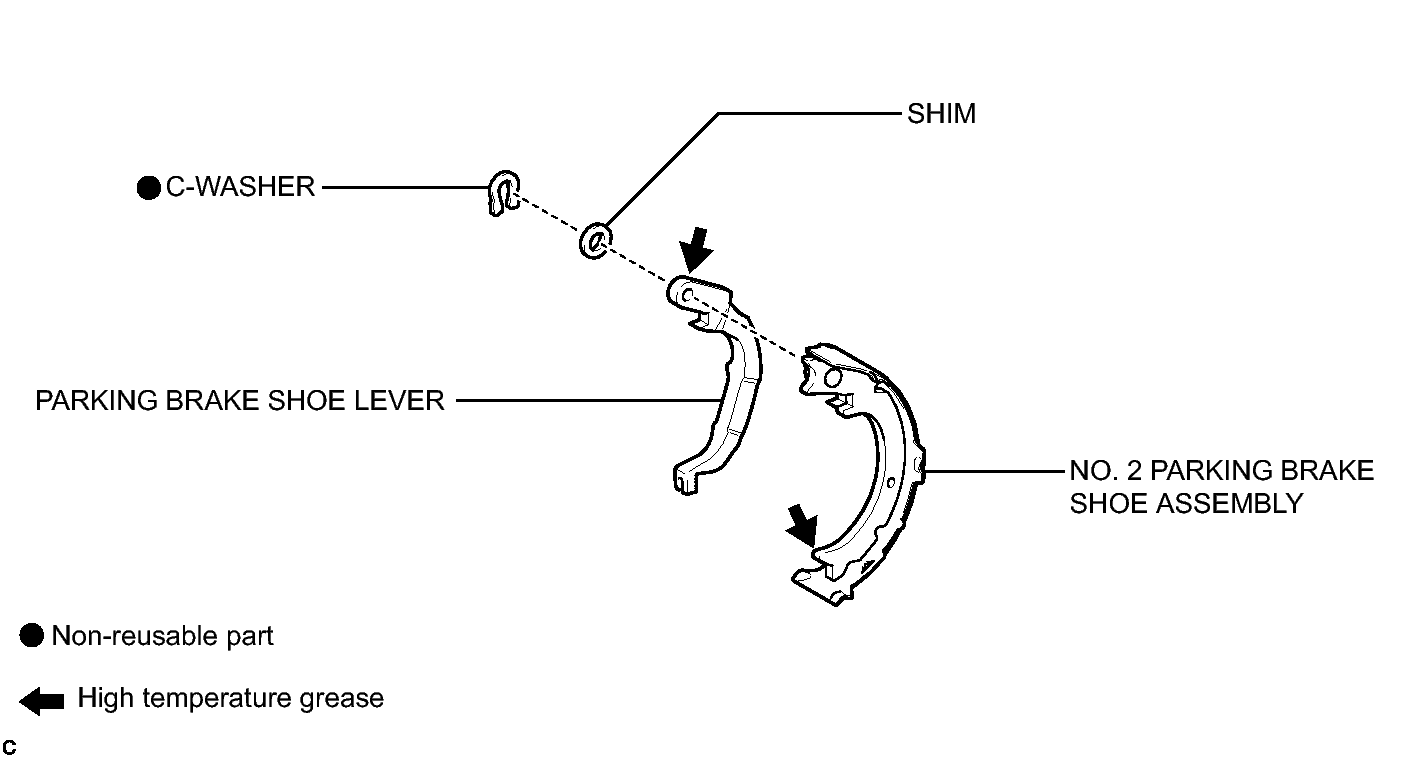

Fig 1: Identifying Parking Brake Assembly Replacement Components (3 Of 4)
GTY266738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Parking Brake Assembly Replacement Components With Torque Specifications (4 Of 4)
GTY272514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
