Rear Brake: Components: Illustration

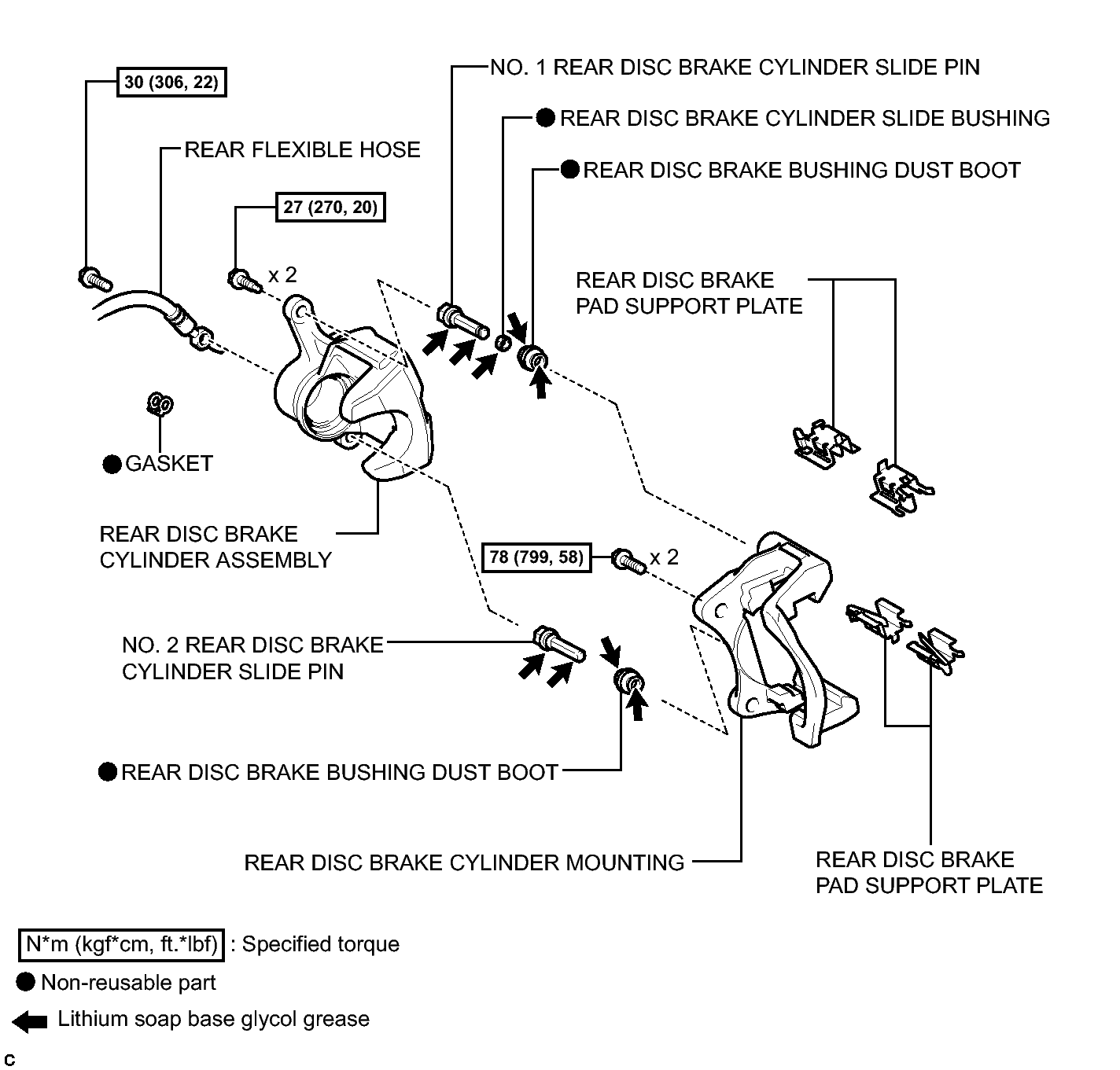

Fig 1: Identifying Rear Brake Replacement Components With Torque Specifications (1 Of 2)
GTY277005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

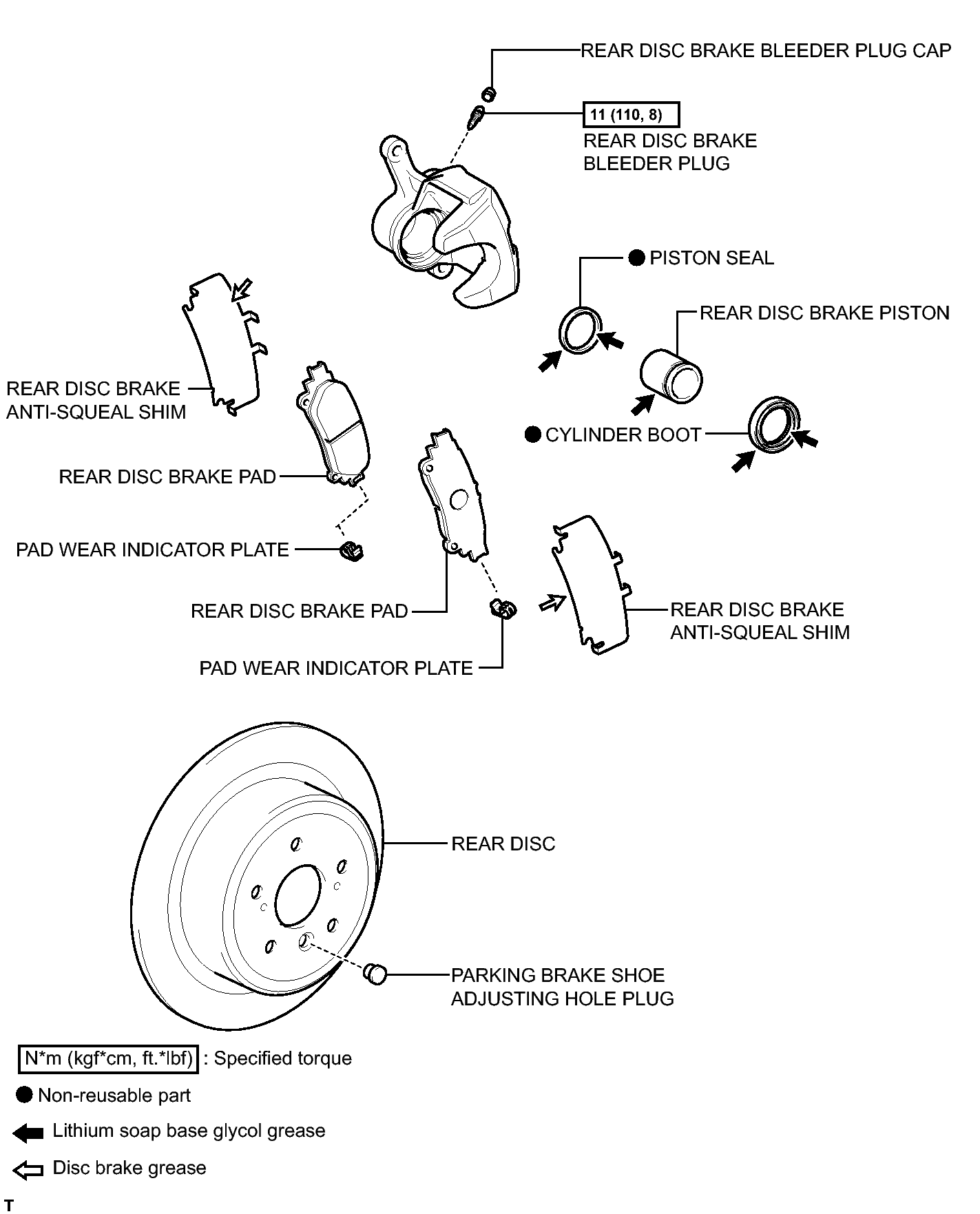

Fig 1: Identifying Rear Brake Replacement Components With Torque Specifications (2 Of 2)
GTY265107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
