Brake Pedal: Components: Illustration

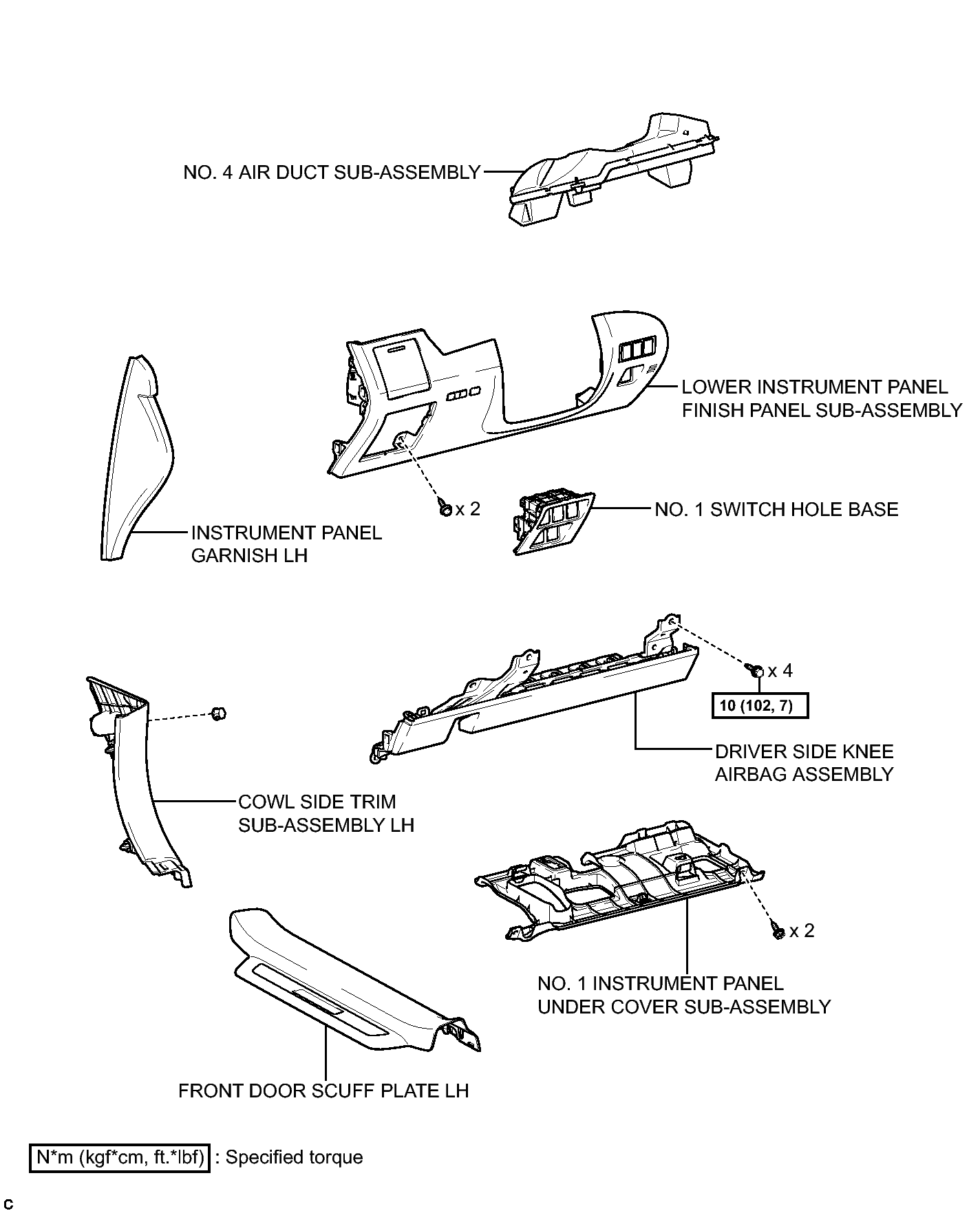

Fig 1: Identifying Brake Pedal Replacement Components (1 of 4) With Torque Specifications
GTY285425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

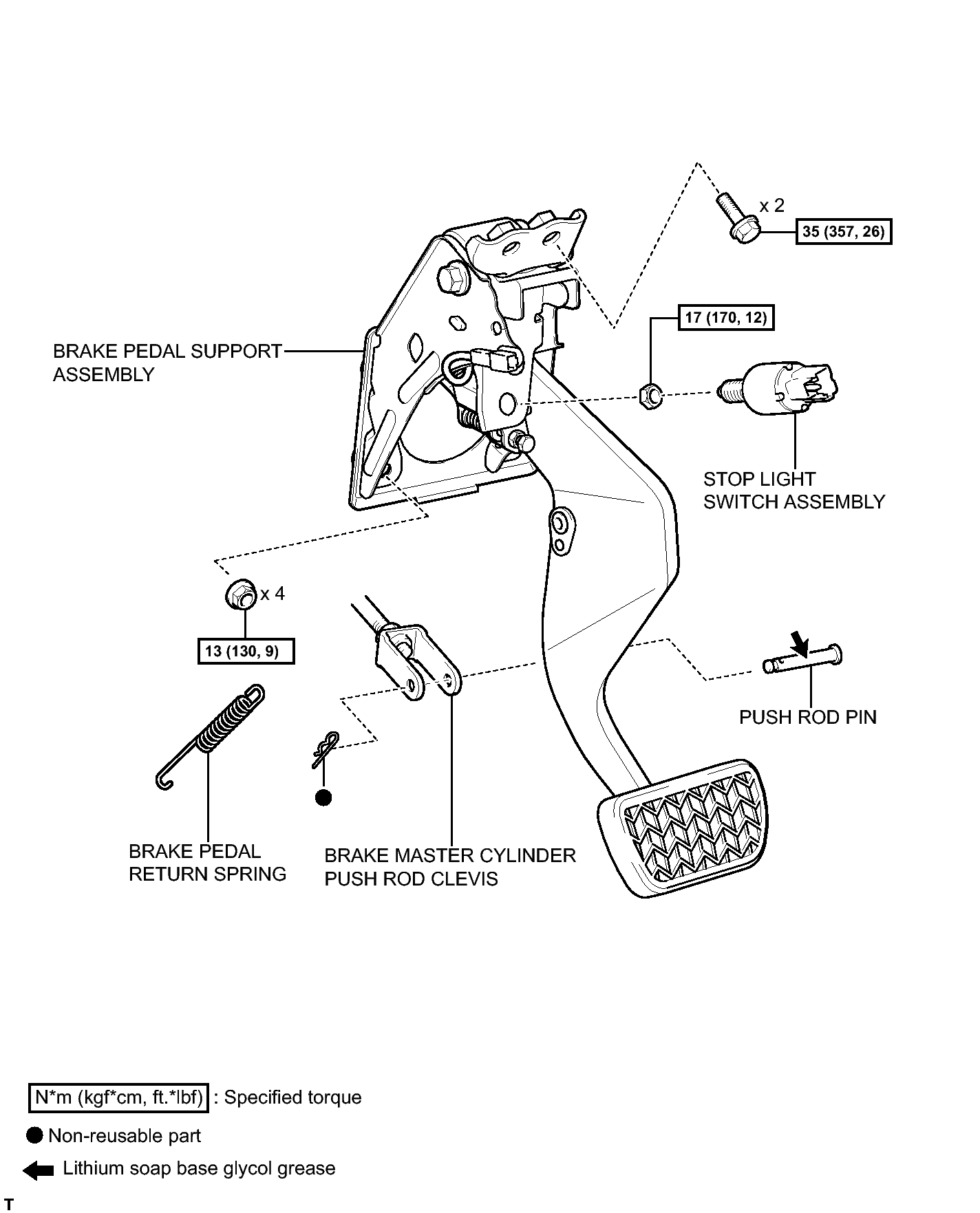

Fig 1: Identifying Brake Pedal Replacement Components (2 of 4) With Torque Specifications
GTY272662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

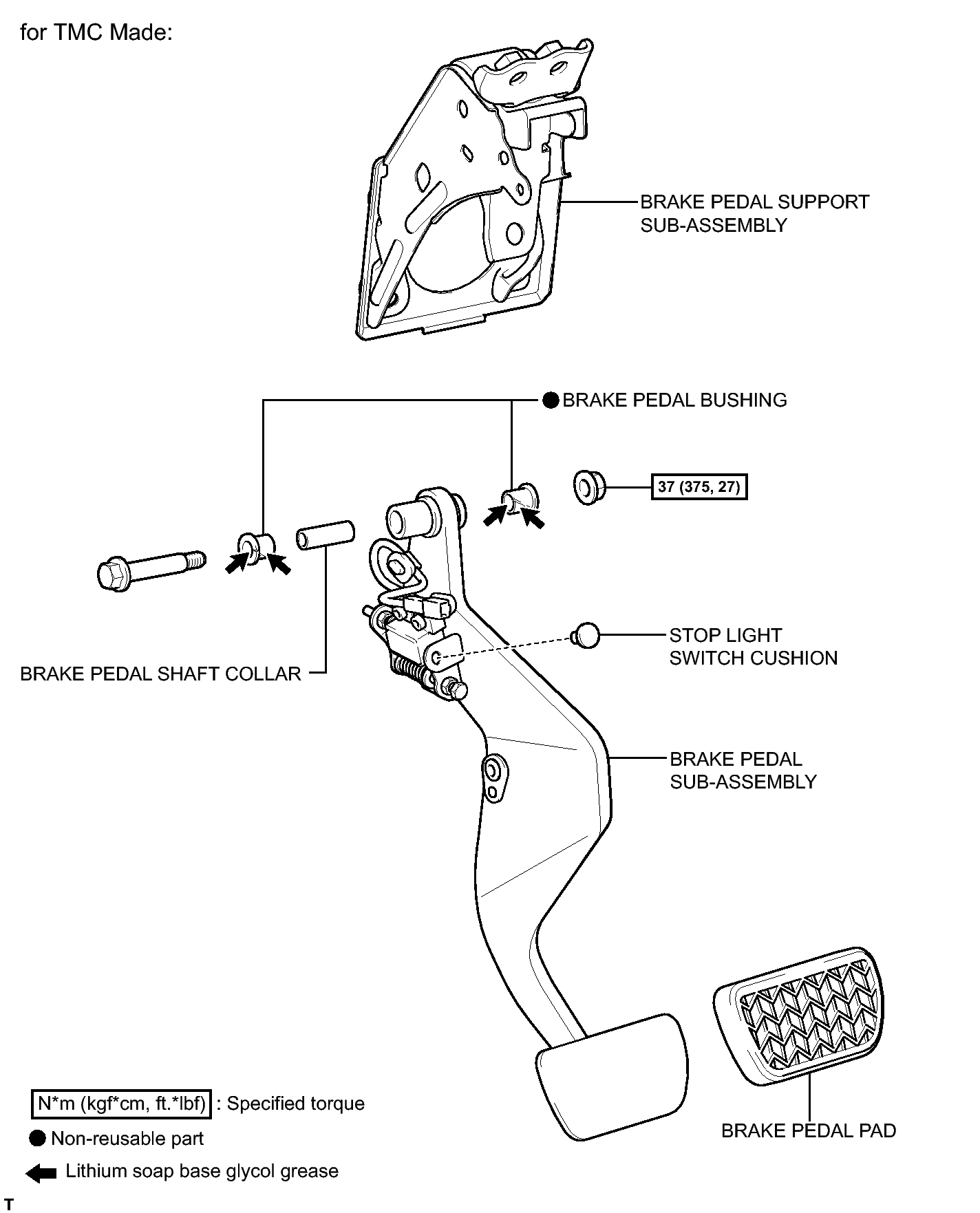

Fig 1: Identifying Brake Pedal Replacement Components (3 of 4) With Torque Specifications
GTY254695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

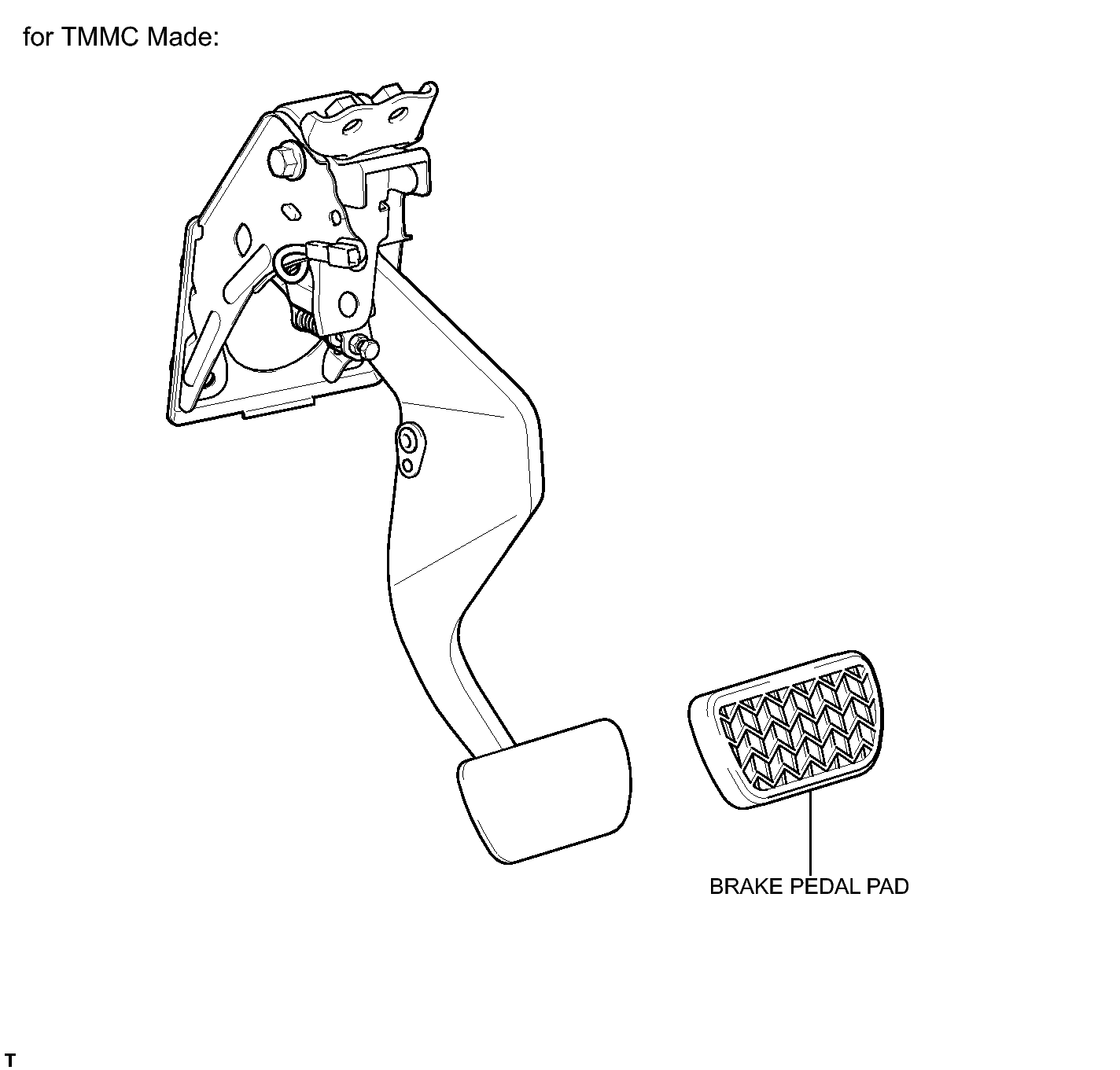

Fig 1: Identifying Brake Pedal Replacement Components (4 of 4)
GTY279261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
