Brake Booster: Components: Illustration

Fig 1: Identifying Brake Booster Replacement Components (1 of 2)
GTY275638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

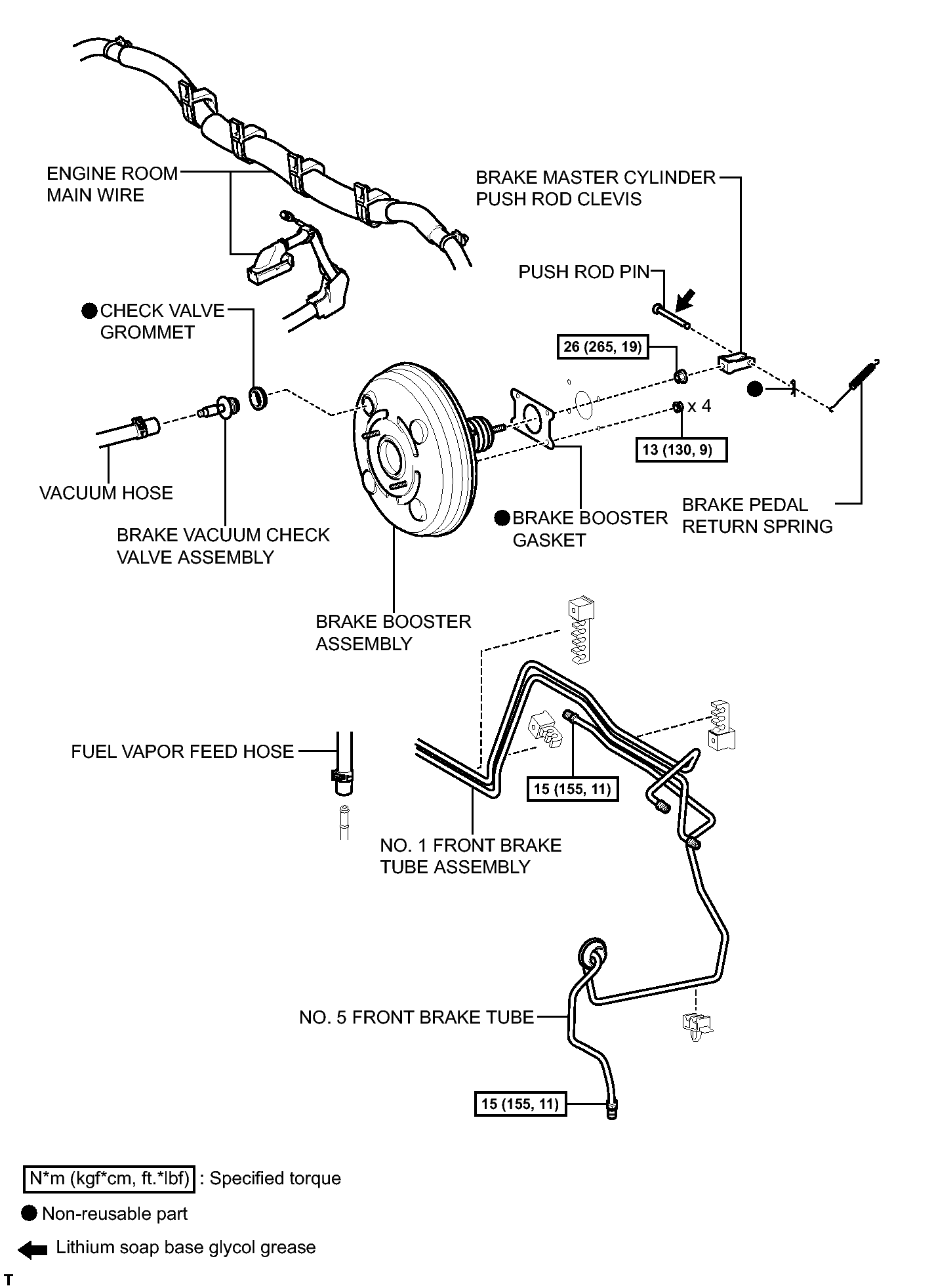

Fig 1: Identifying Brake Booster Replacement Components (2 of 2) With Torque Specifications
GTY277451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
