Front Brake Flexible Hose: Components: Illustration

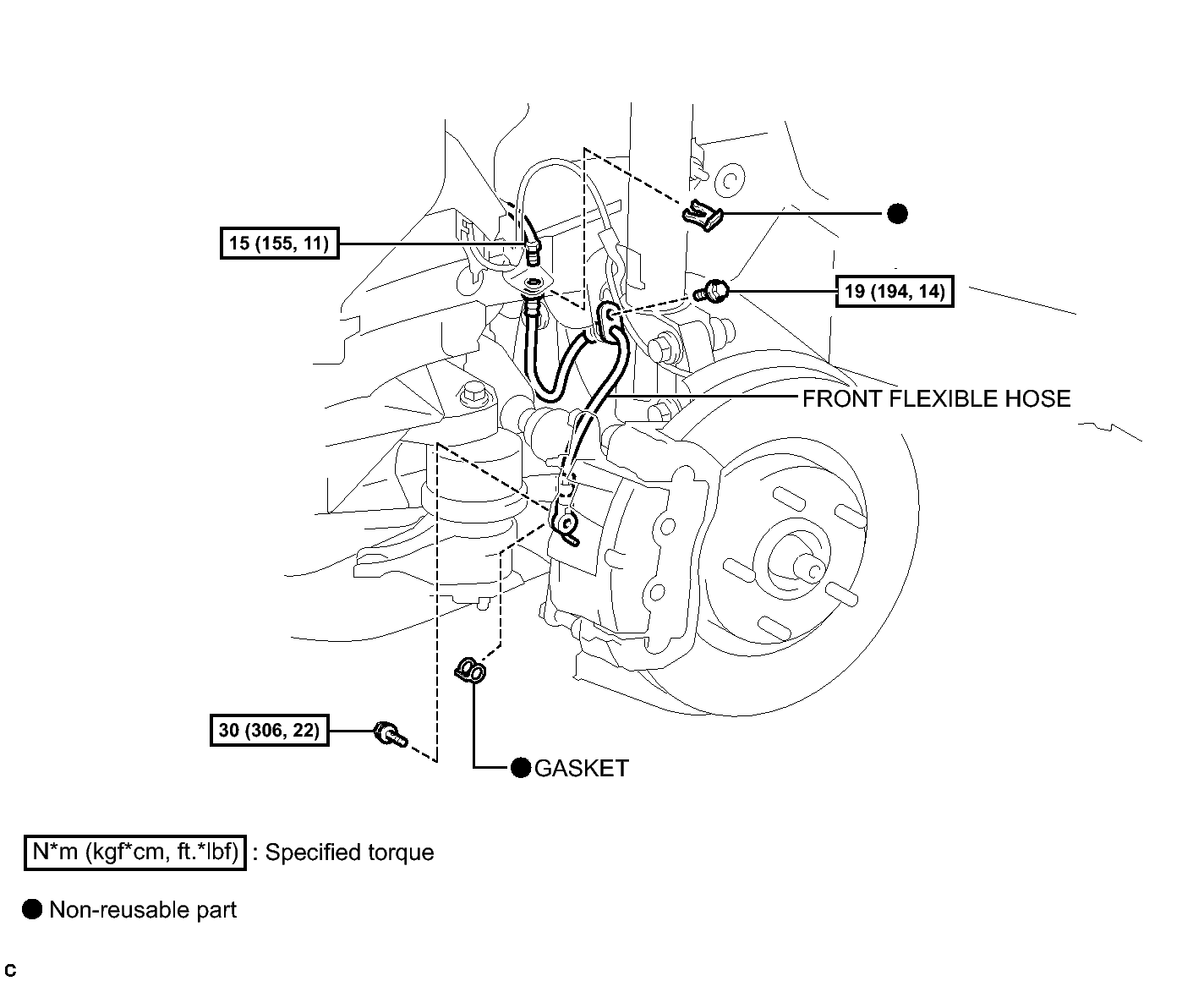

Fig 1: Identifying Front Brake Flexible Hose Replacement Components With Torque Specifications

GTY284413

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
