DTC B2341: Sensor (Motor) Failure; DTC B2344: Position Failure: Wiring Diagram

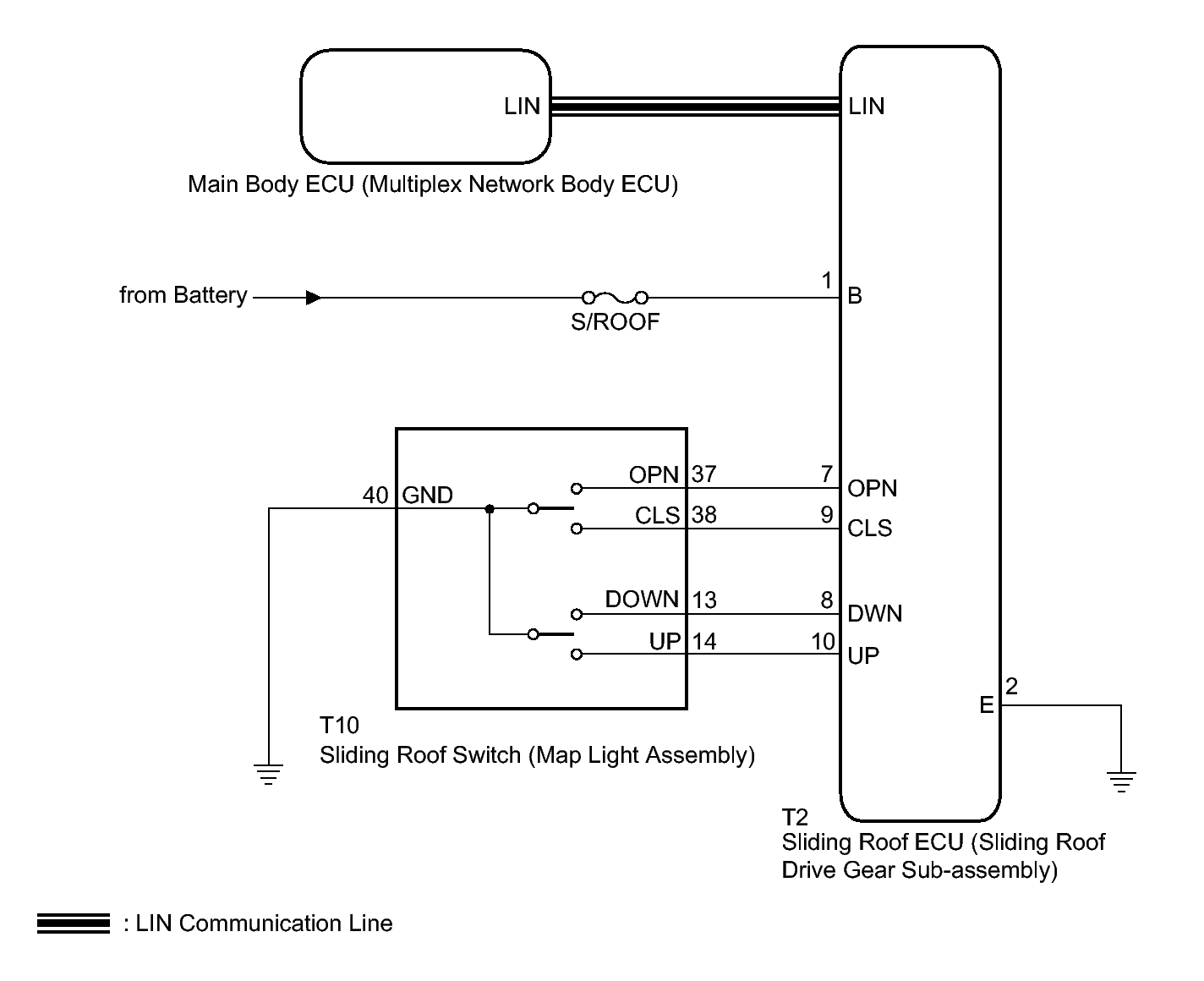

Fig 1: Identifying Sliding Roof Drive Gear Sub-Assembly Wiring Diagram

GTY279547

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
