REAR SEAT ASSEMBLY (for RH Side): Components: Illustration

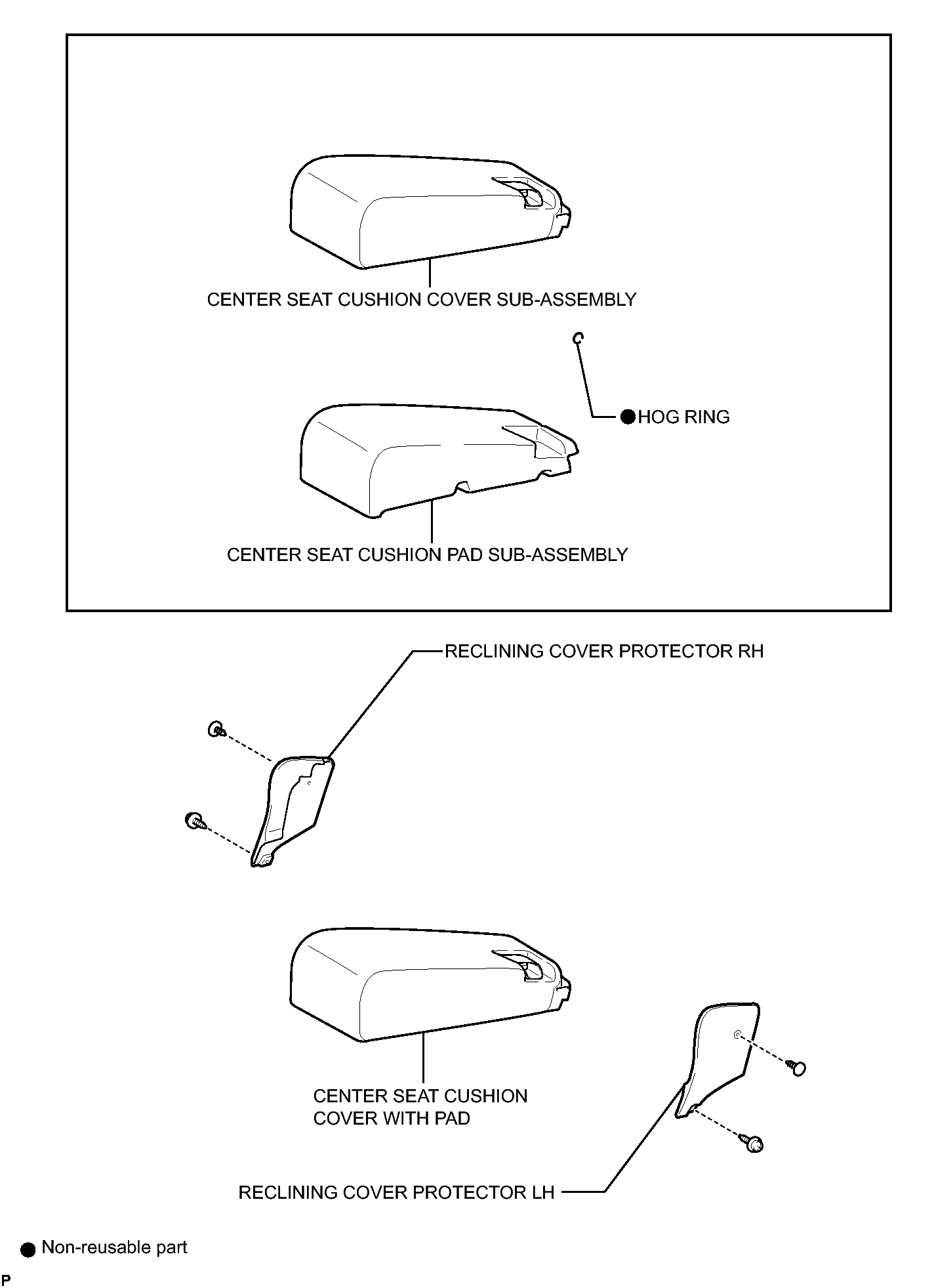

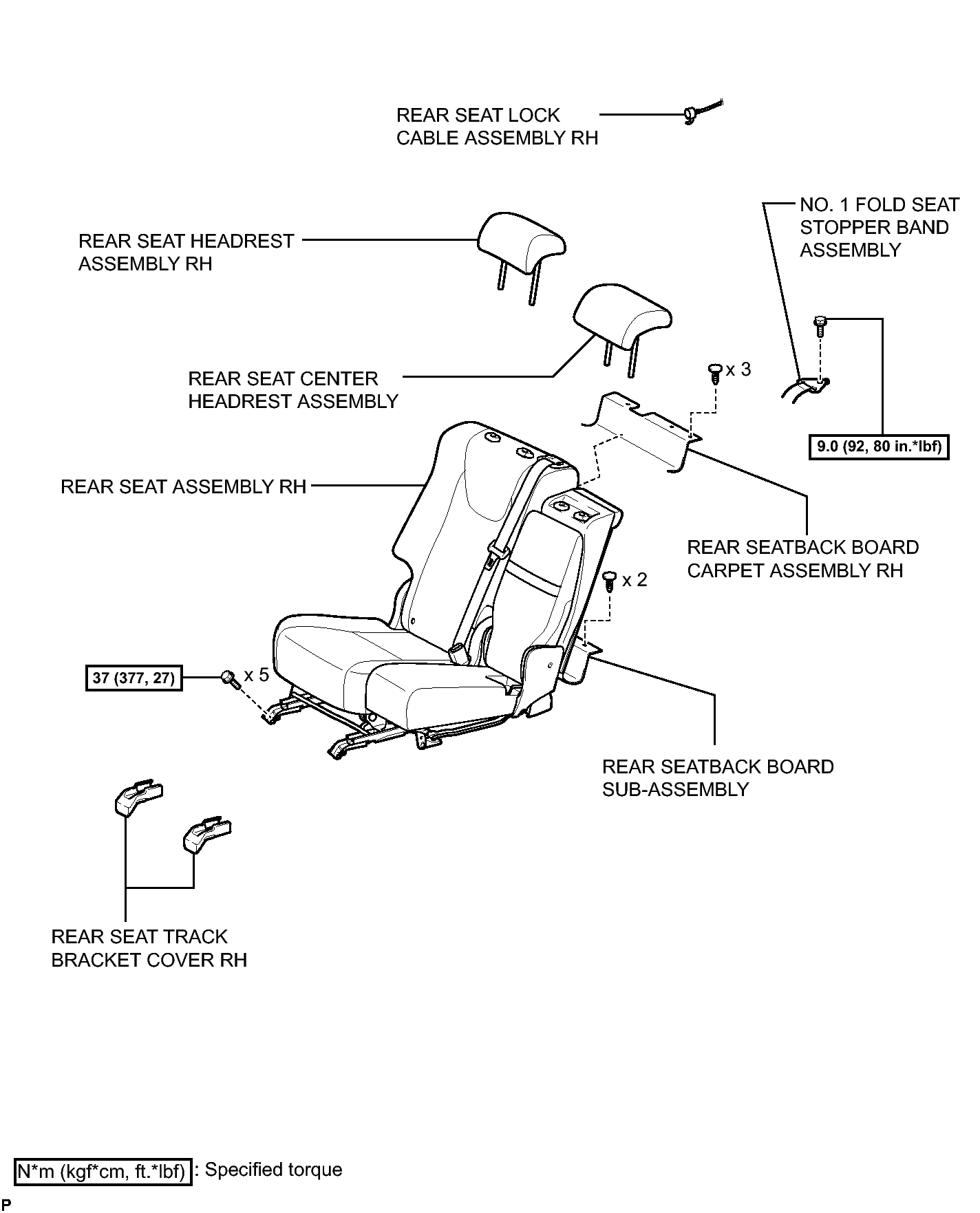

Fig 1: Identifying Rear Seat Assembly (For Rh Side) Replacement Components With Torque Specifications (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

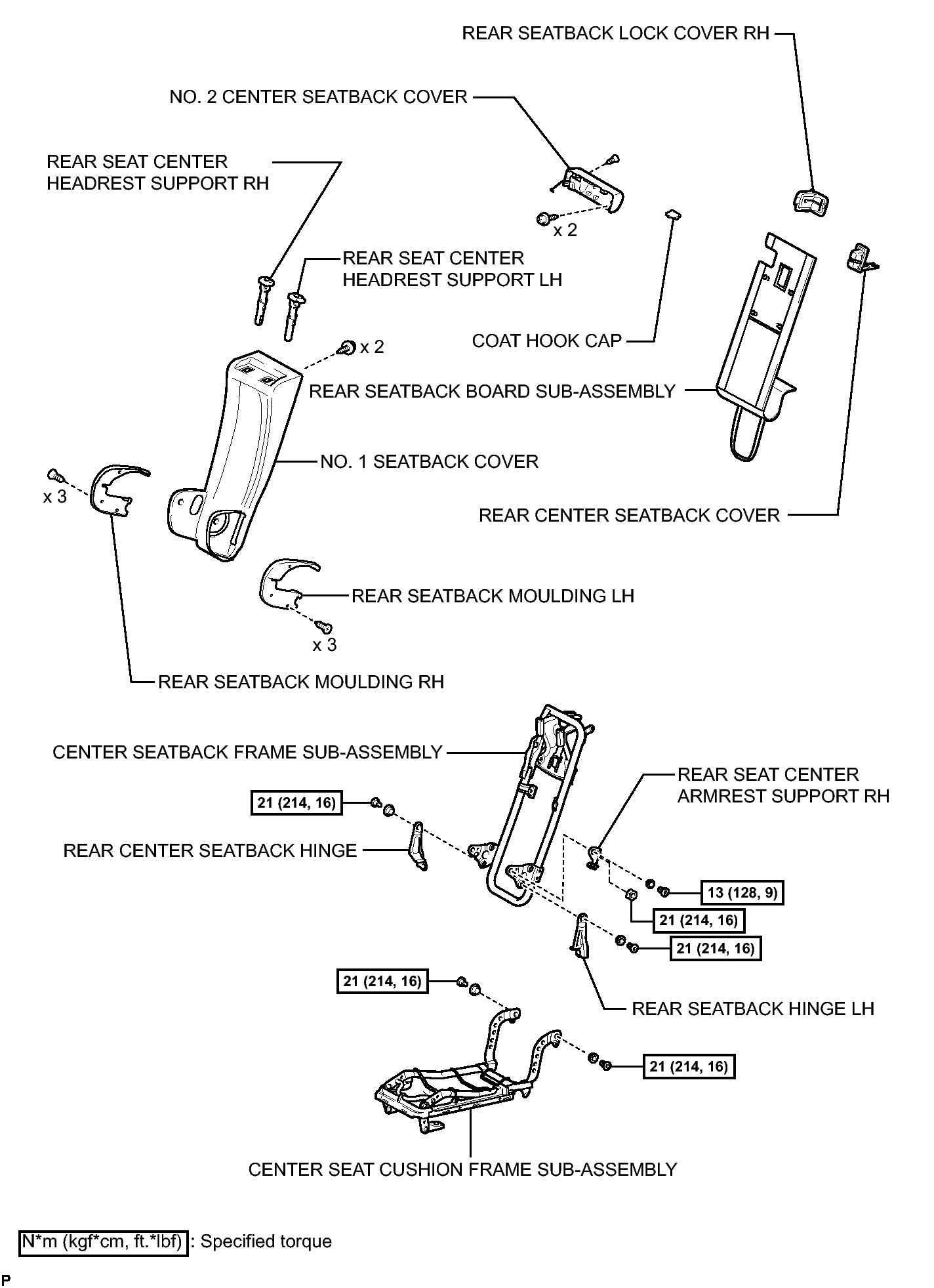

Fig 1: Identifying Rear Seat Assembly (for RH Side) Replacement Components (2 Of 9) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

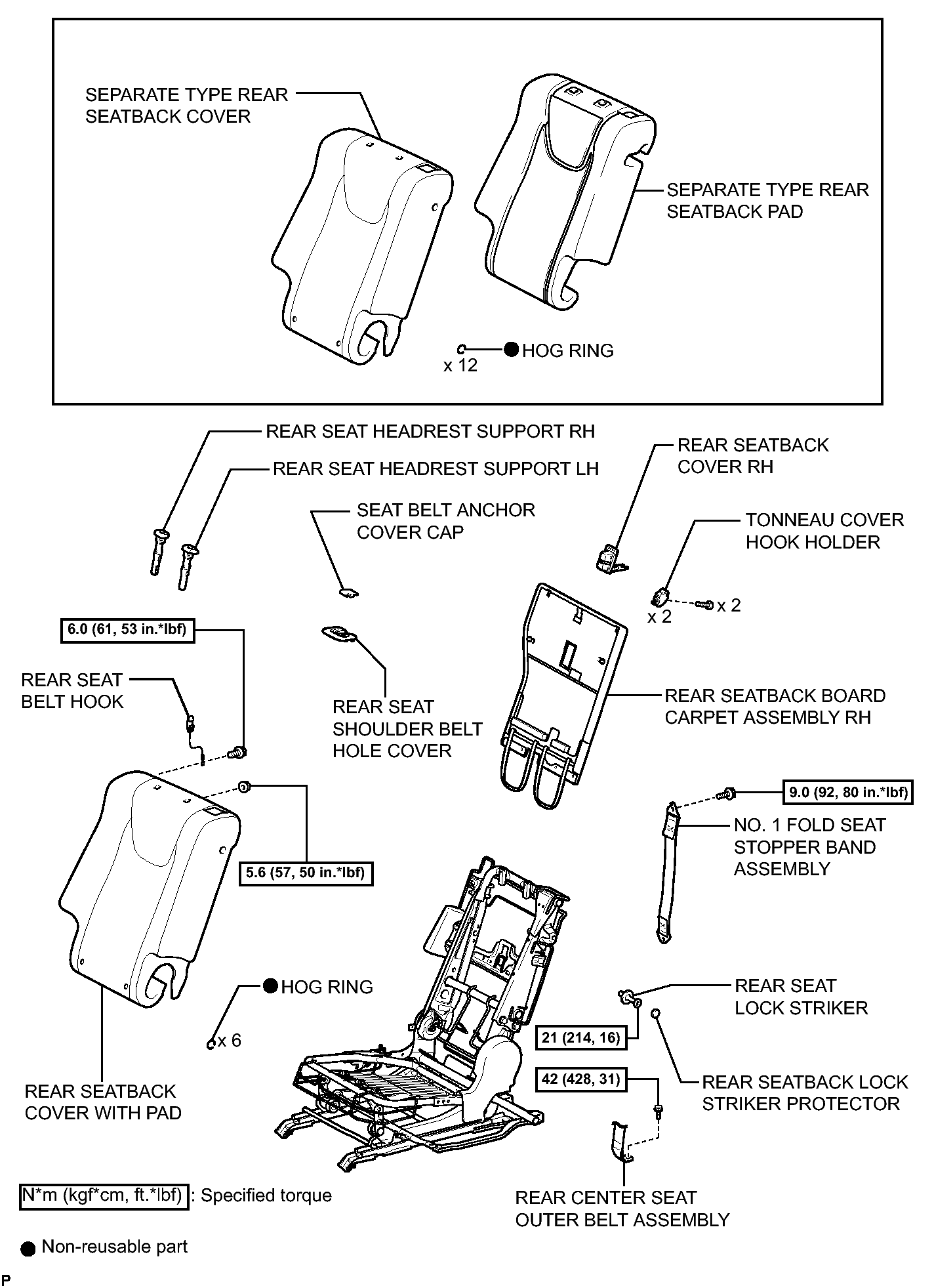

Fig 1: Identifying Rear Seat Assembly (for RH Side) Replacement Components (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

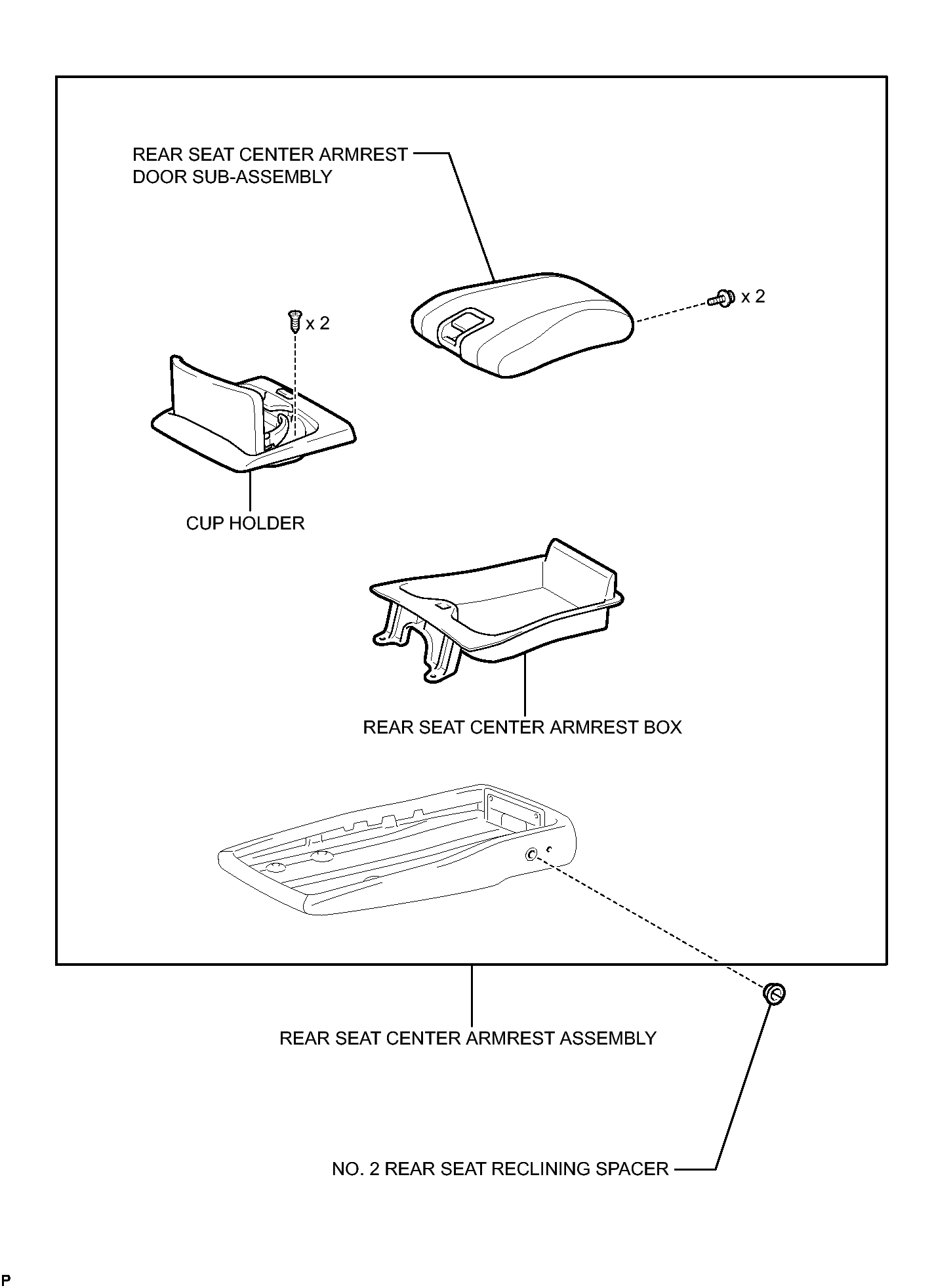

Fig 1: Identifying Rear Seat Assembly (for RH Side) Replacement Components (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

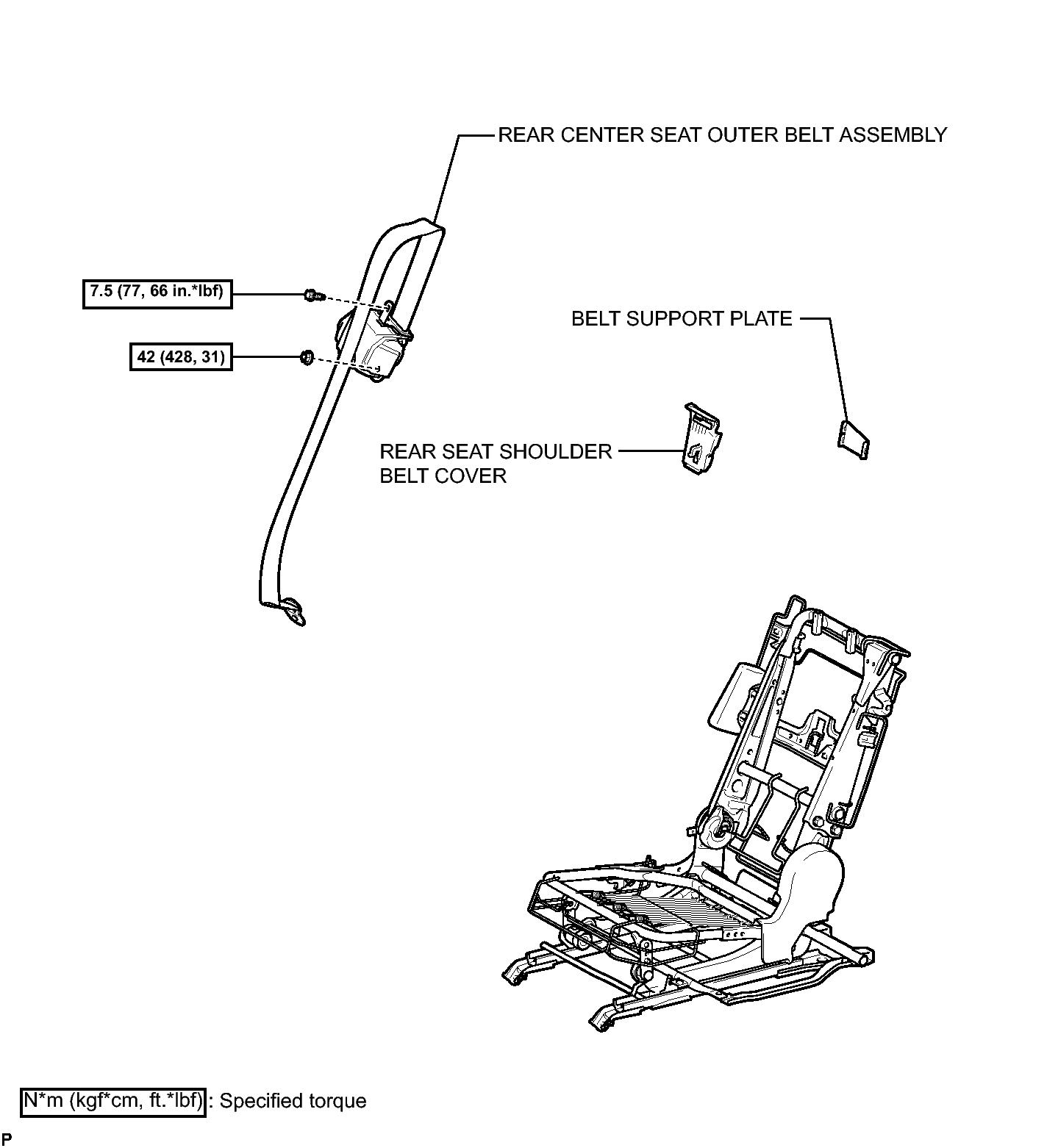

Fig 1: Identifying Rear Seat Assembly (for RH Side) Replacement Components (5 Of 9) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

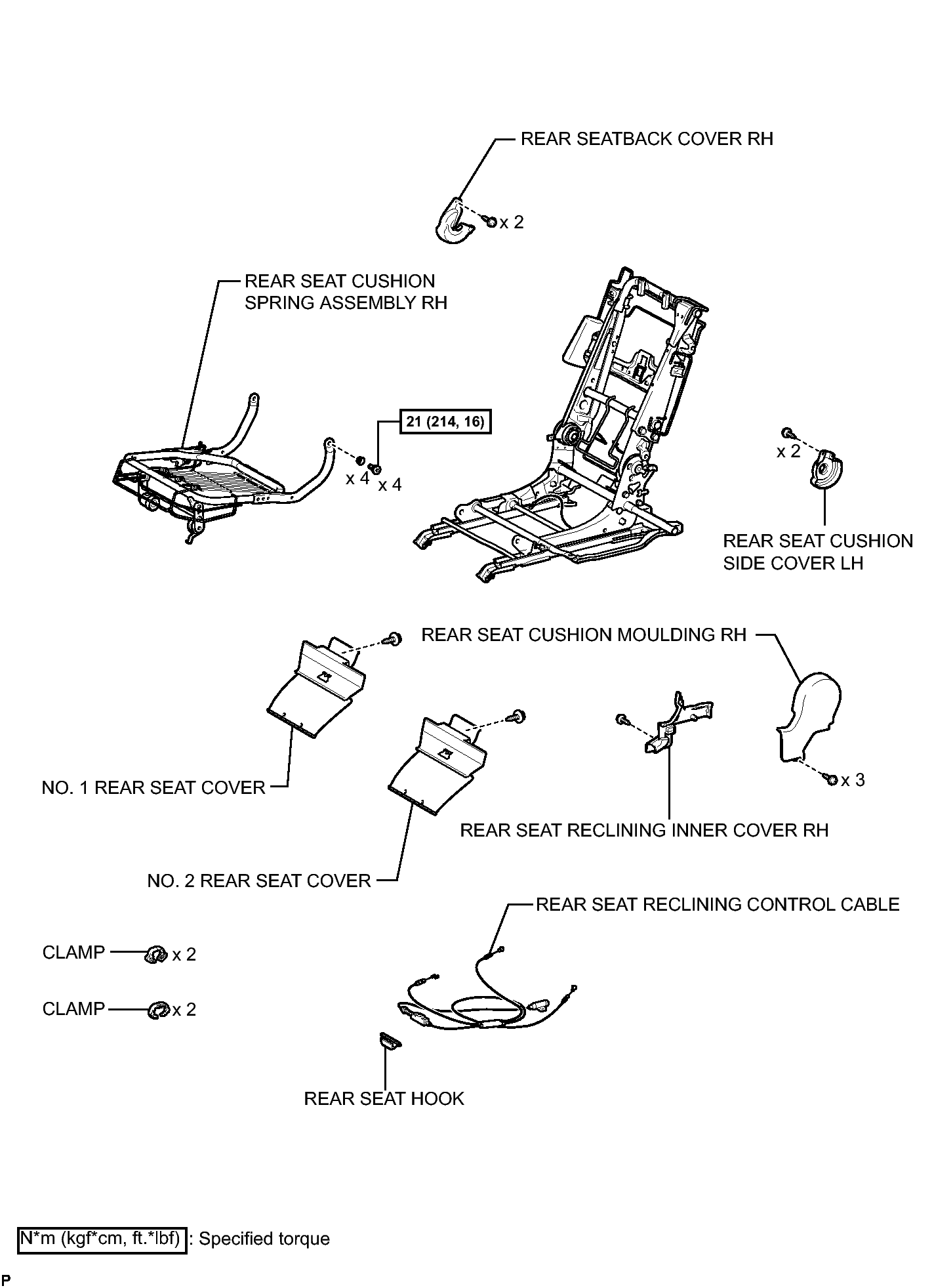

Fig 1: Identifying Rear Seat Assembly (for RH Side) Replacement Components (6 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

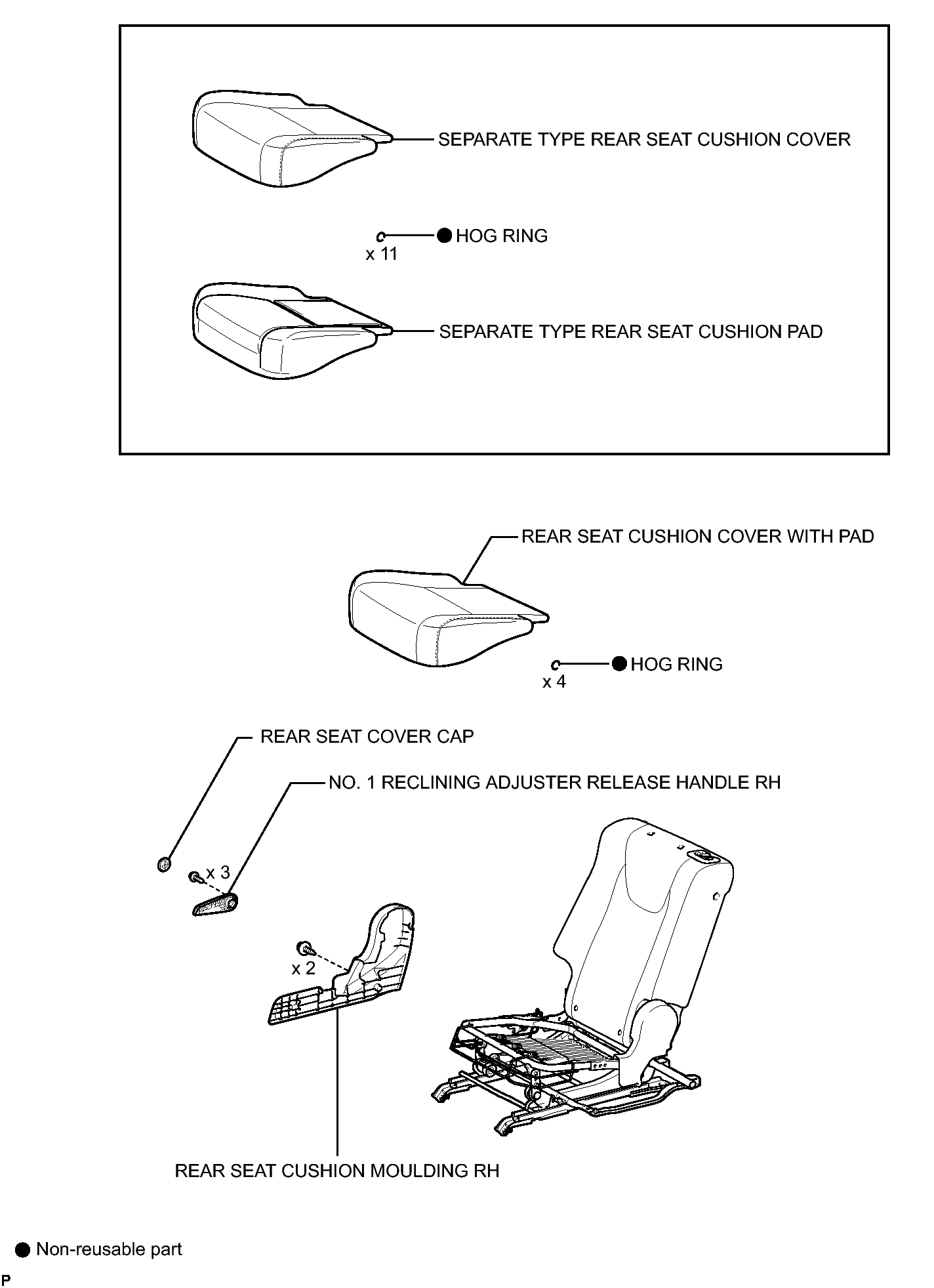

Fig 1: Identifying Rear Seat Assembly (for RH Side) Replacement Components (7 Of 9) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

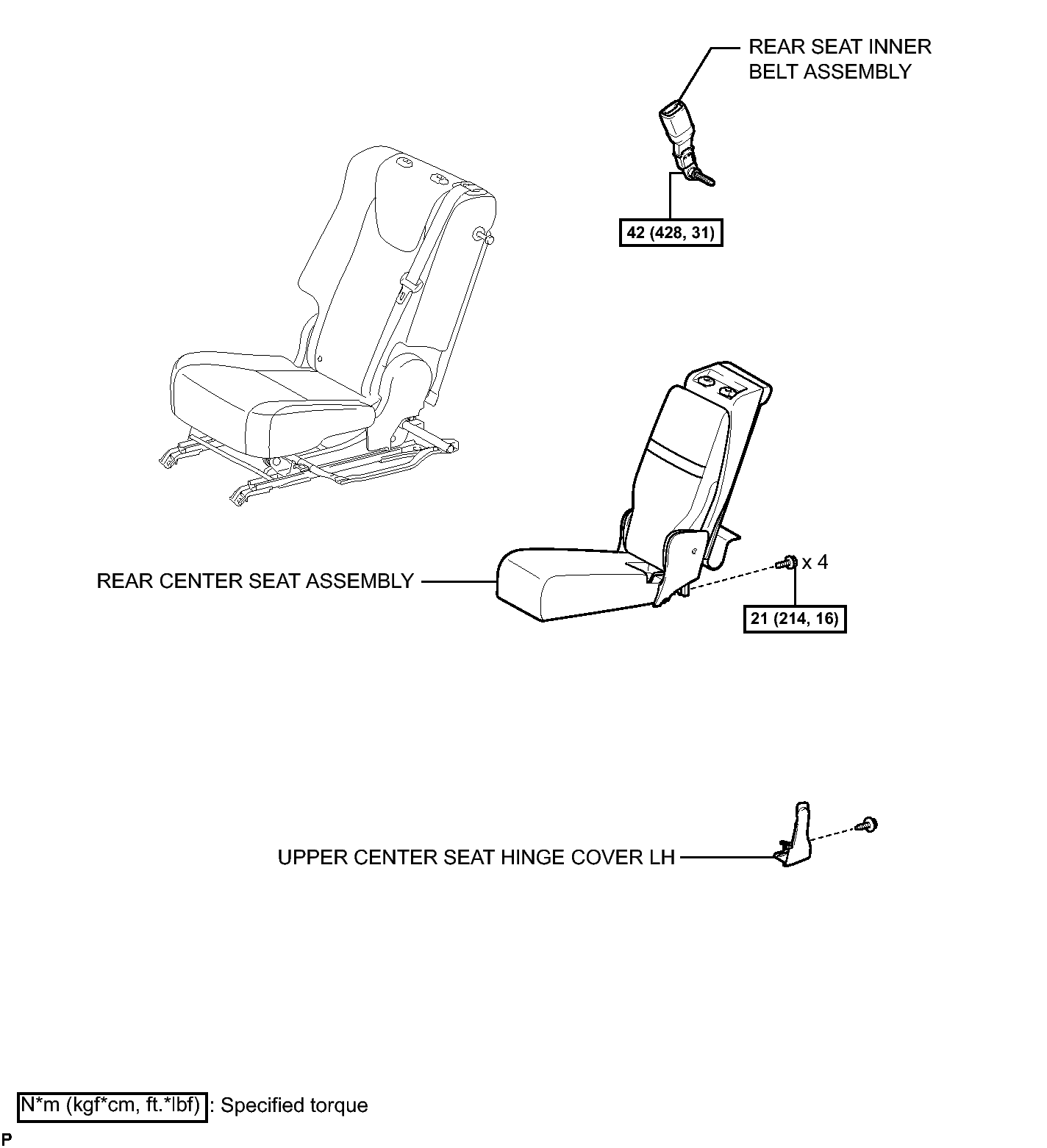

Fig 1: Identifying Rear Seat Assembly (For Rh Side) Replacement Components With Torque Specifications (8 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Seat Assembly (for RH Side) Replacement Components (9 Of 9) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
