Roof Drip Side Finish Molding: Components: Illustration

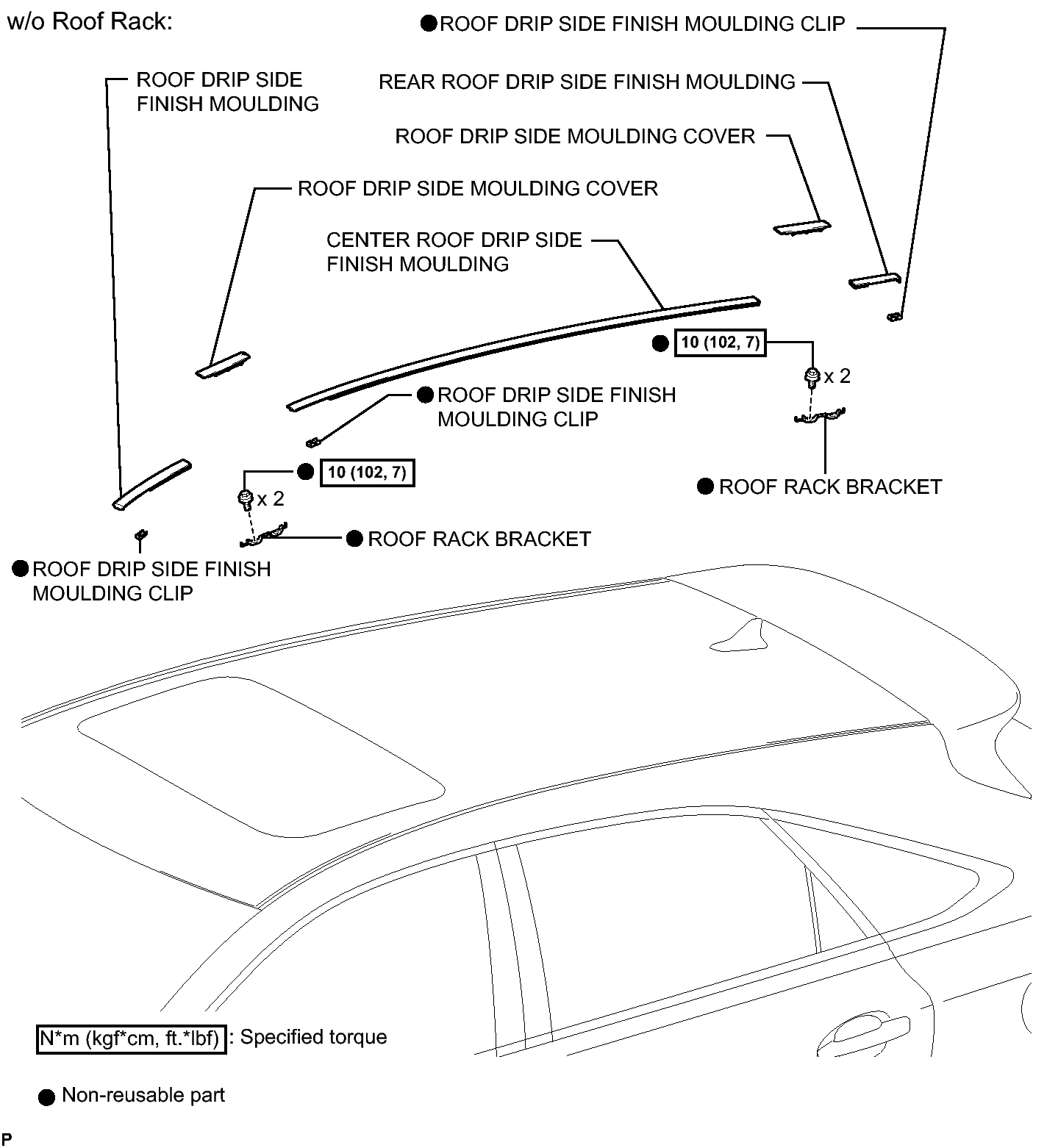

Fig 1: Identifying Roof Drip Side Finish Molding Replacement Components With Torque Specifications (1 Of 2)
GTY258595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

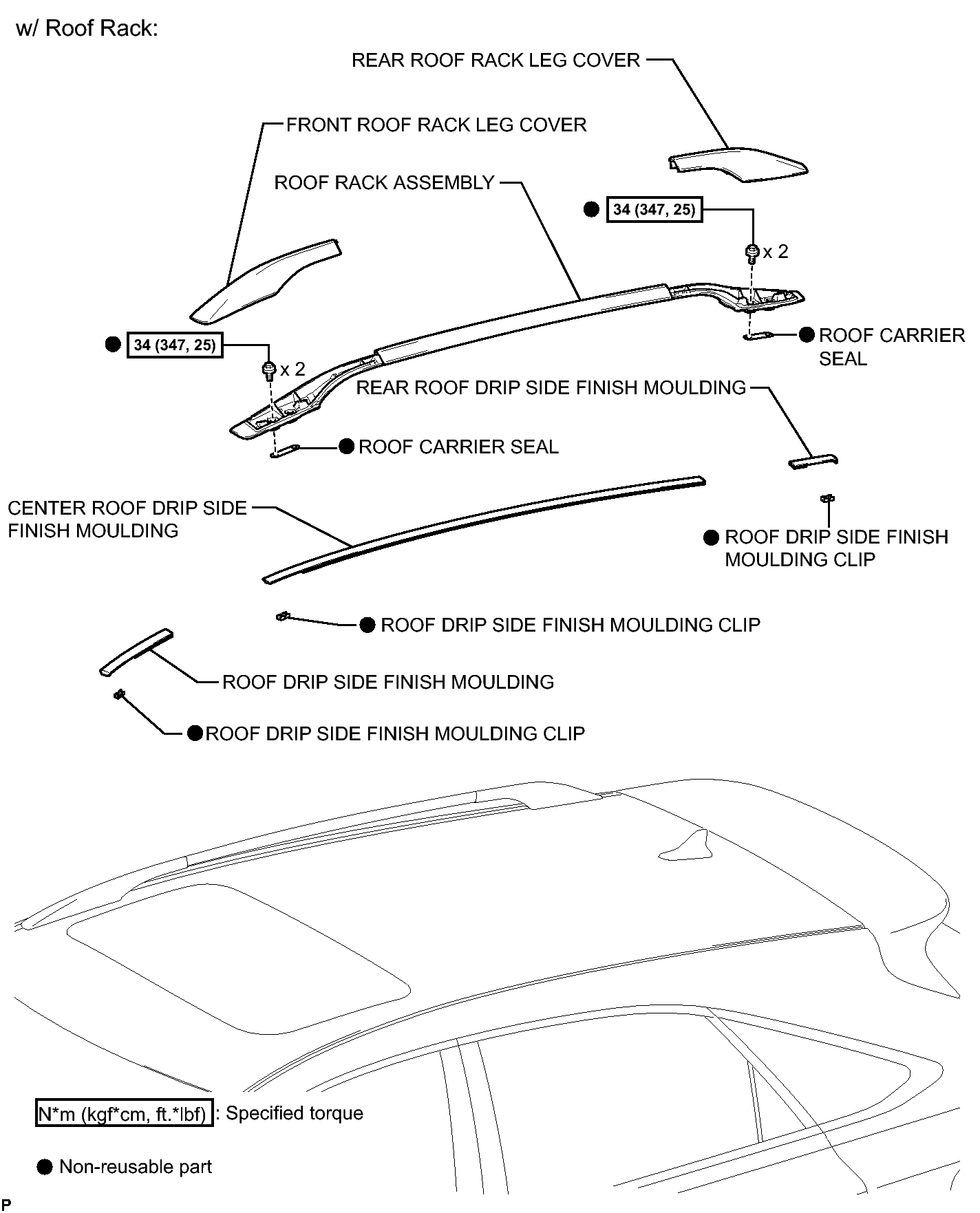

Fig 1: Identifying Roof Drip Side Finish Molding Replacement Components With Torque Specifications (2 Of 2)
GTY265763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
