Rear Bumper: Components: Illustration

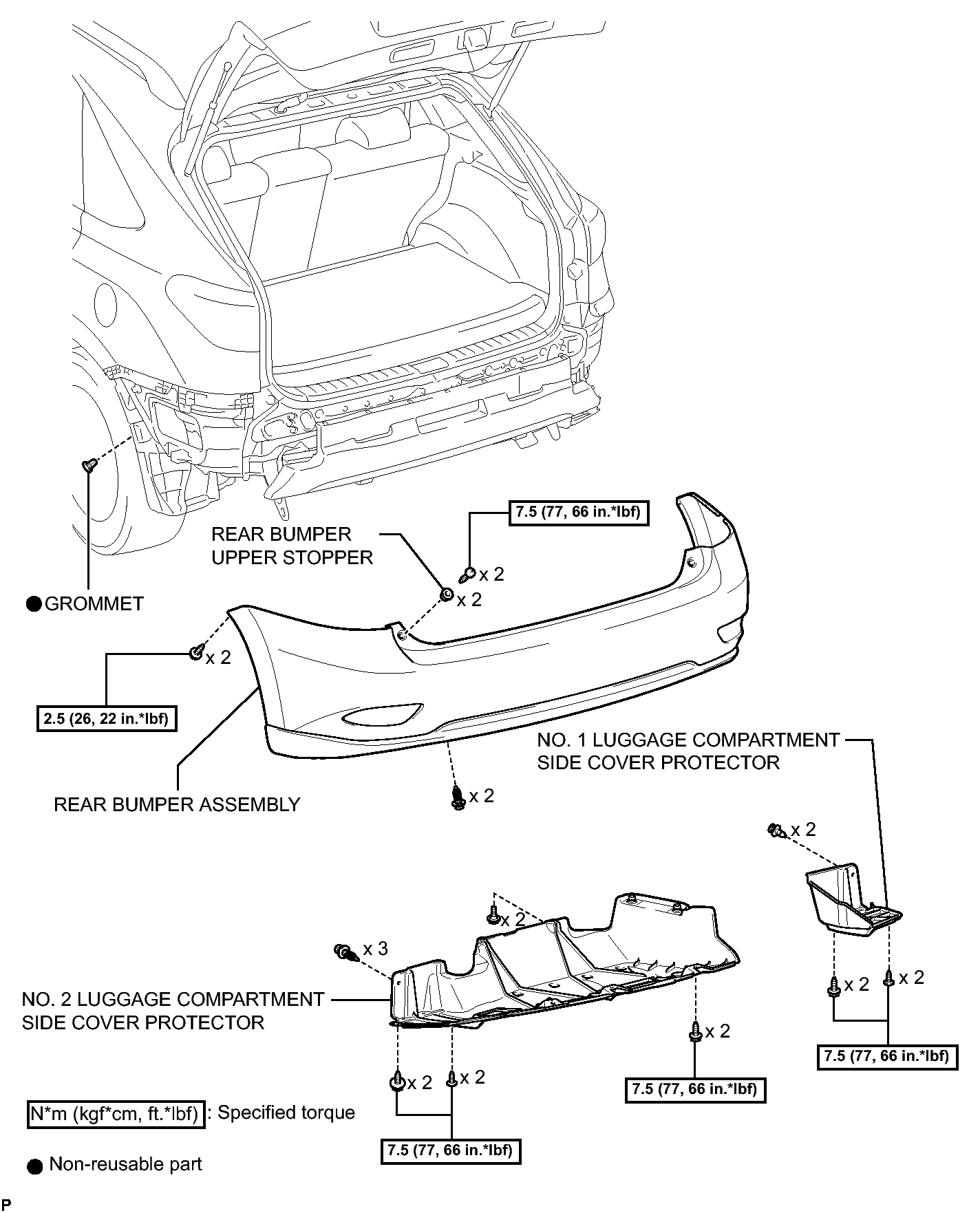

Fig 1: Identifying Rear Bumper Replacement Components With Torque Specifications (1 Of 2)
GTY287125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

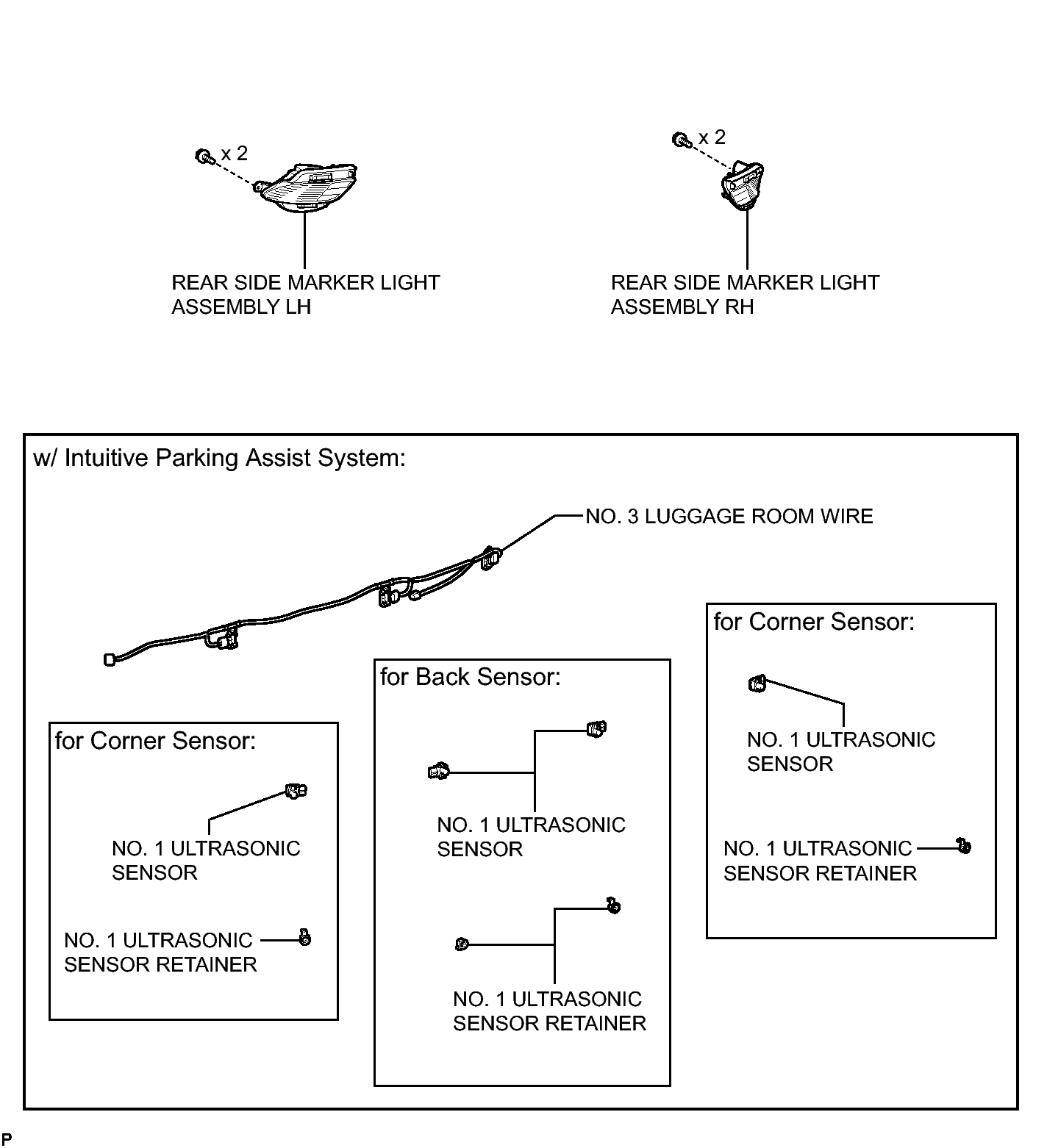

Fig 1: Identifying Rear Bumper Replacement Components (2 Of 4)
GTY257860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

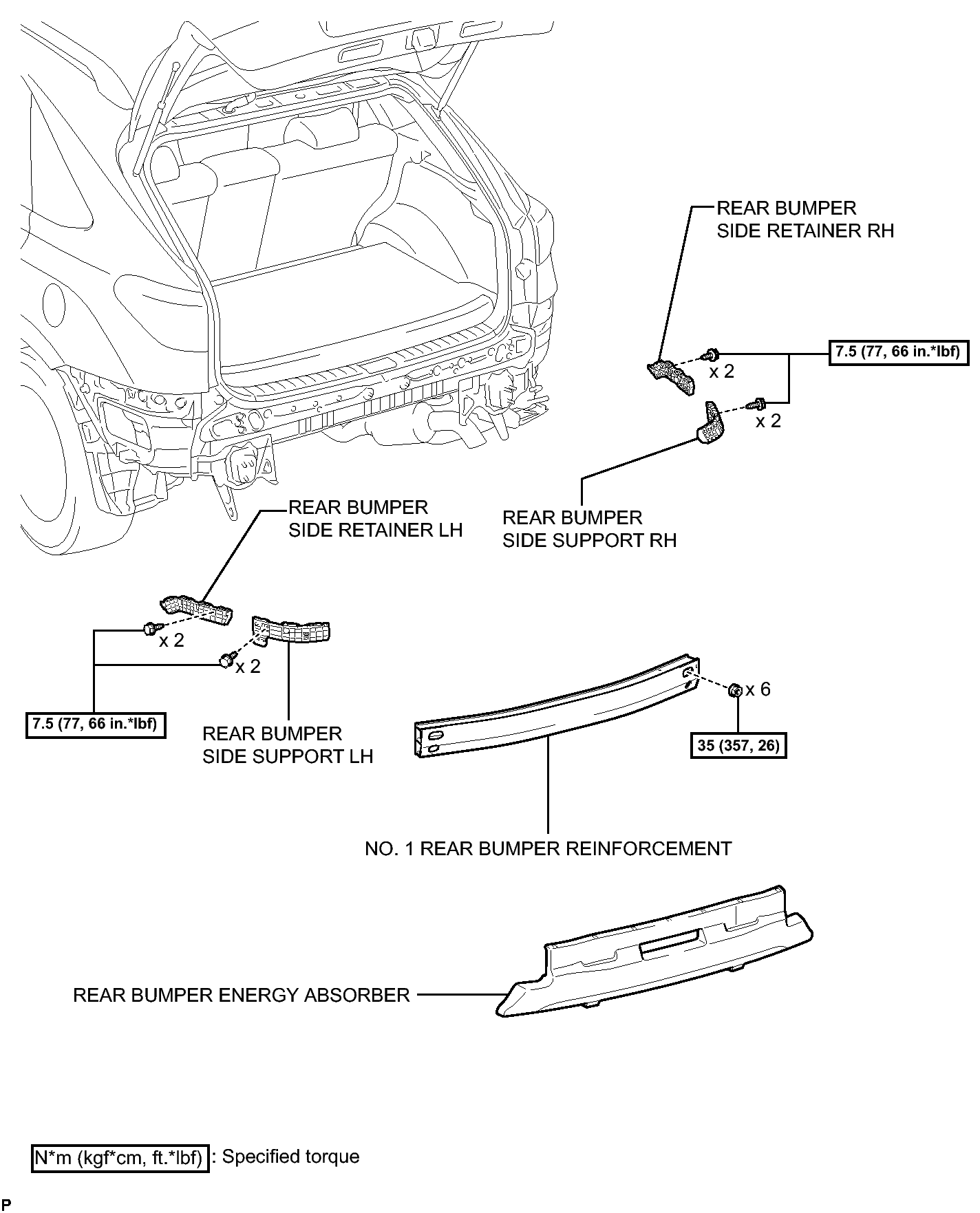

Fig 1: Identifying Rear Bumper Replacement Components With Torque Specifications (3 of 4)
GTY353020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

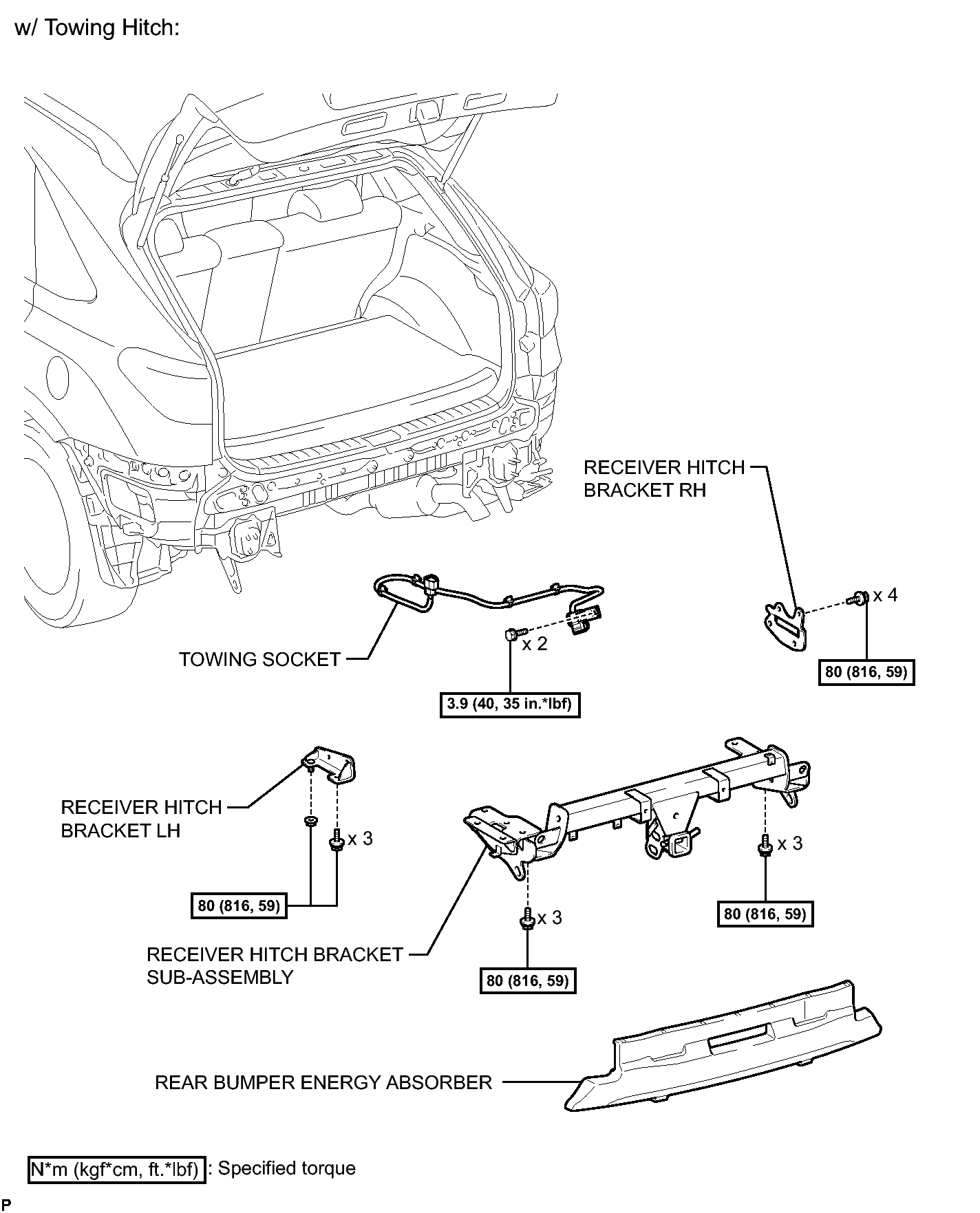

Fig 1: Identifying Rear Bumper Replacement Components With Torque Specifications (4 Of 4)
GTY260992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
