DTC B2251: Back Door Closer Switch Malfunction: Wiring Diagram

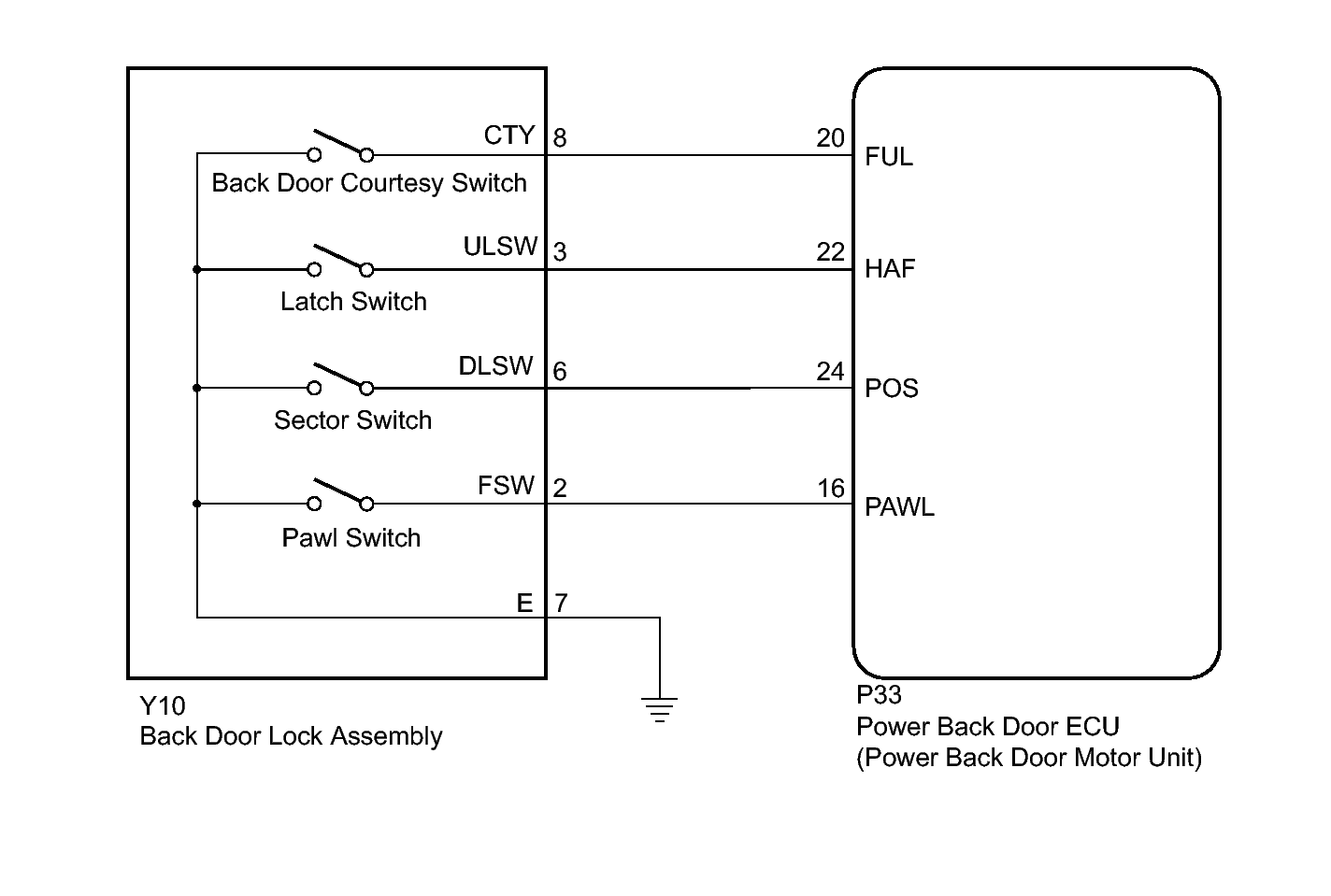

Fig 1: Identifying Back Door Closer Switch Wiring Diagram

GTY268707

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
