Rear Door: Components: Illustration

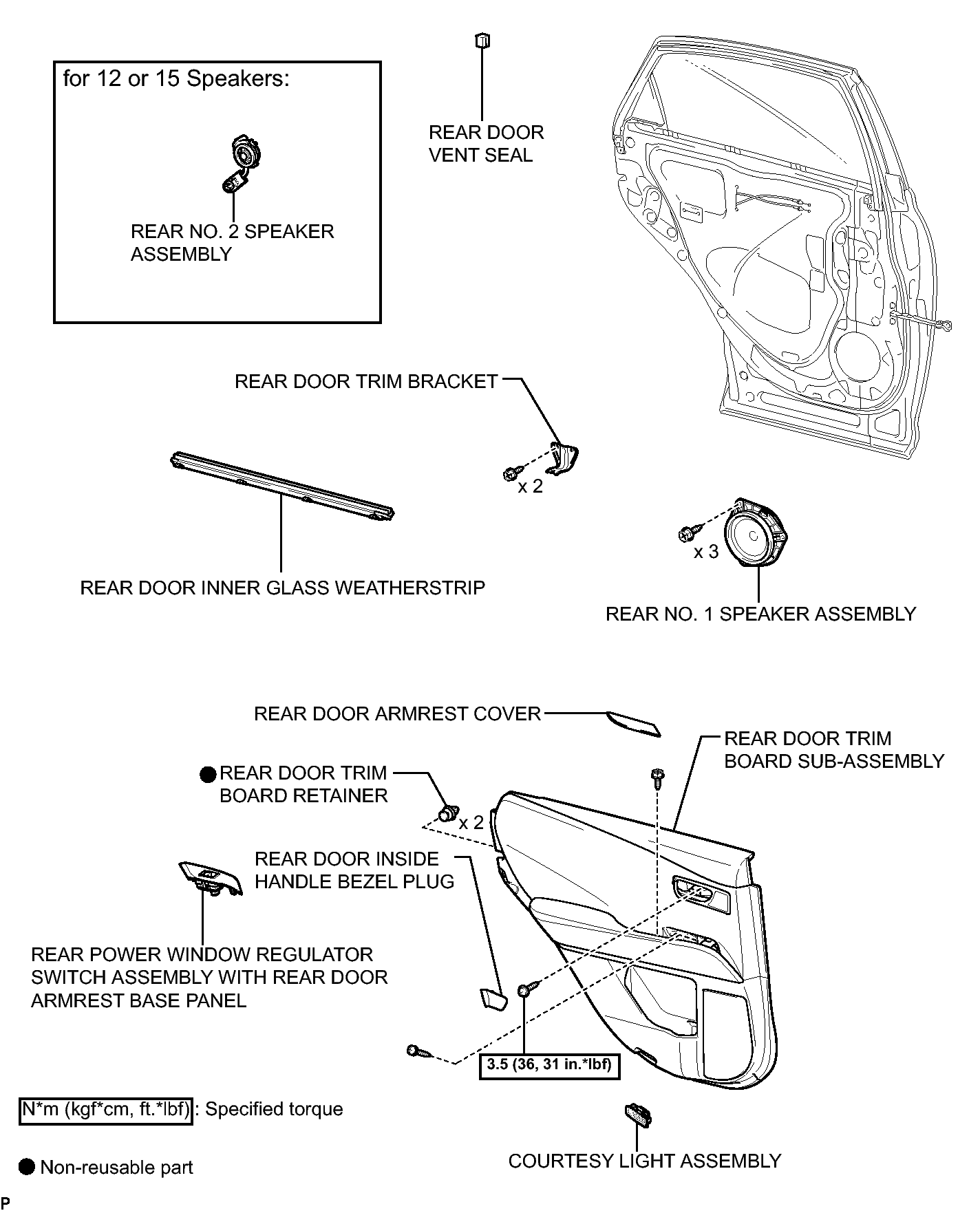

Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (1 Of 5)
GTY262572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (2 Of 5)
GTY257499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

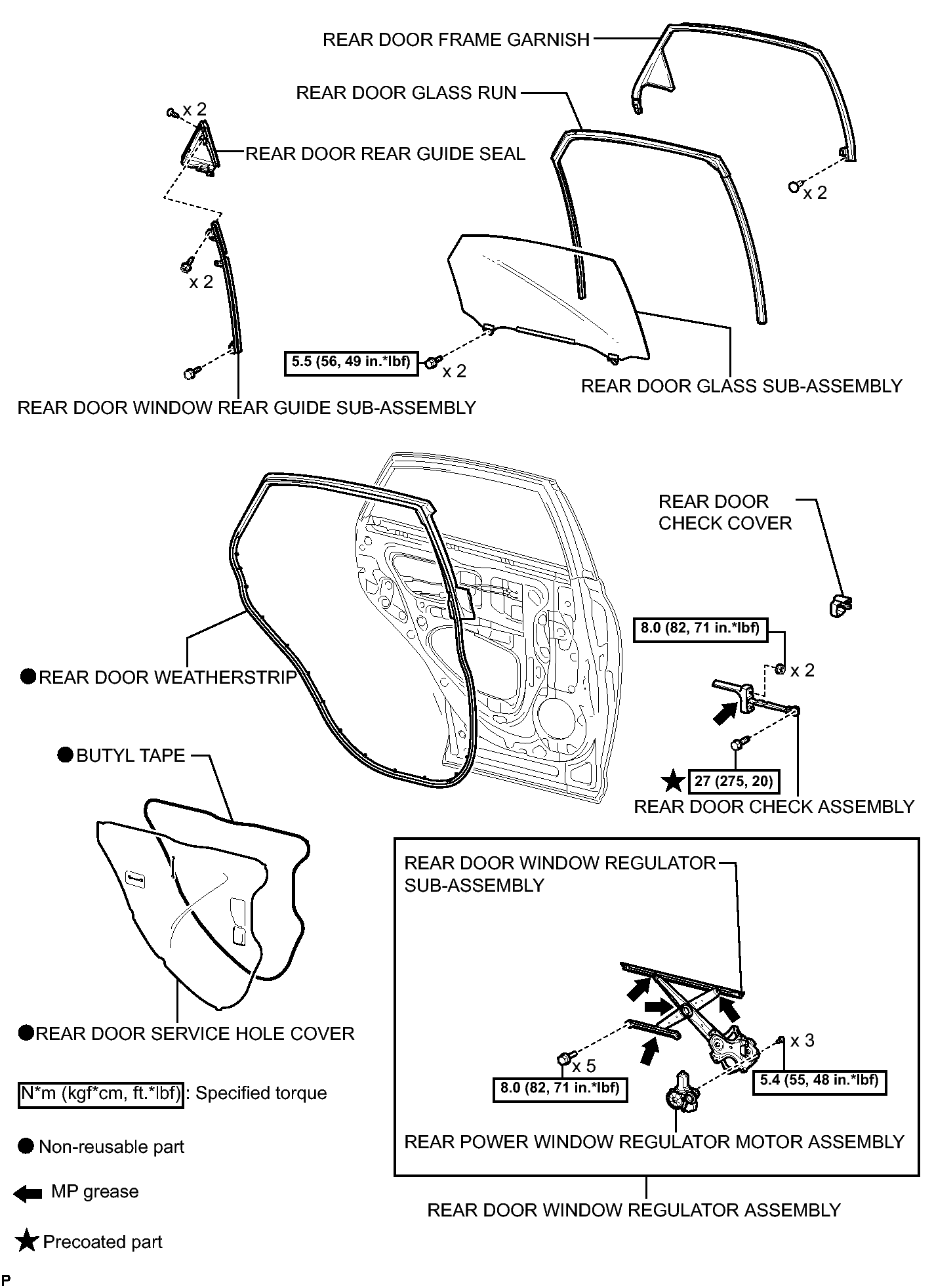

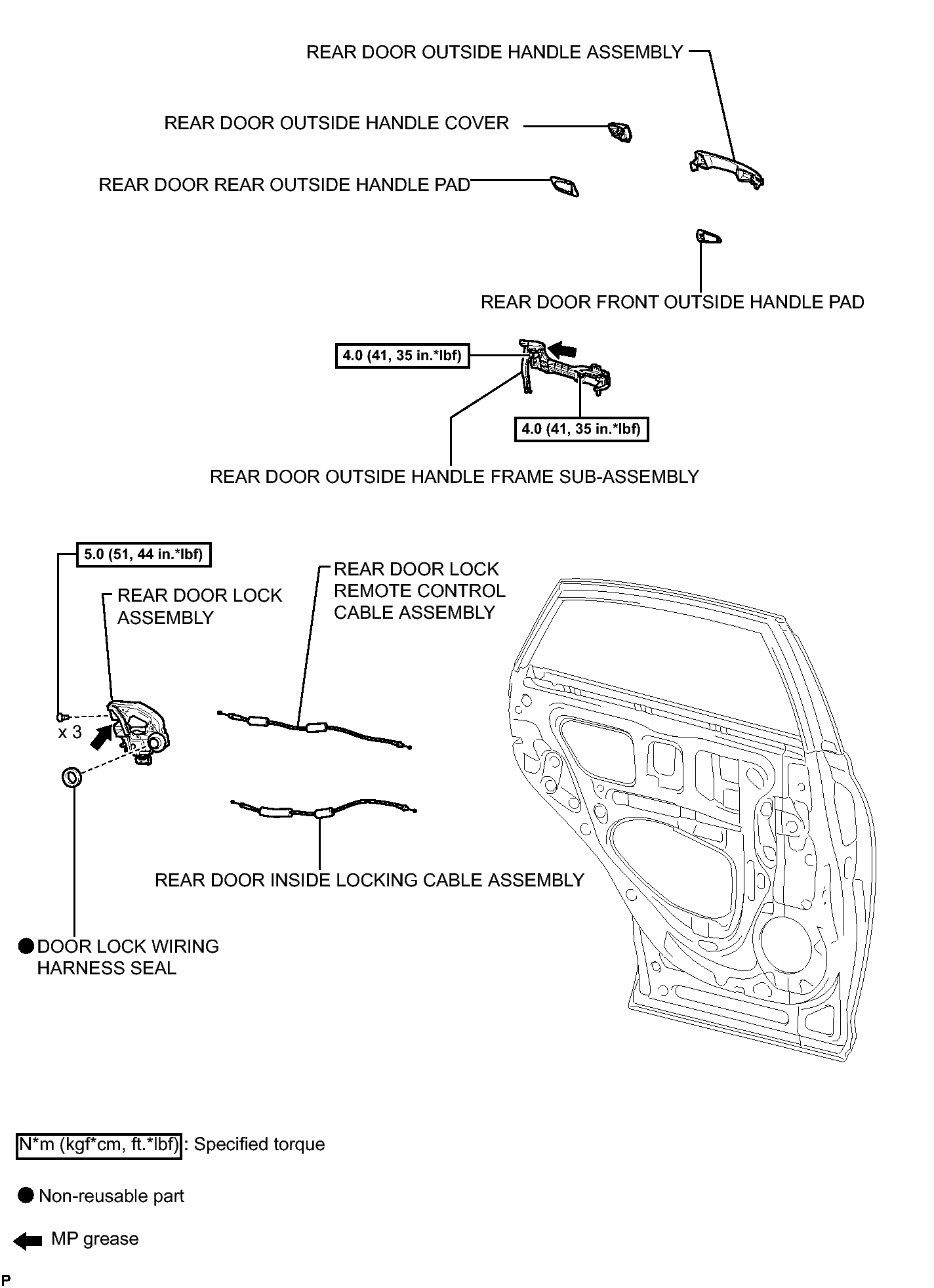

Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (3 Of 5)
GTY271580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

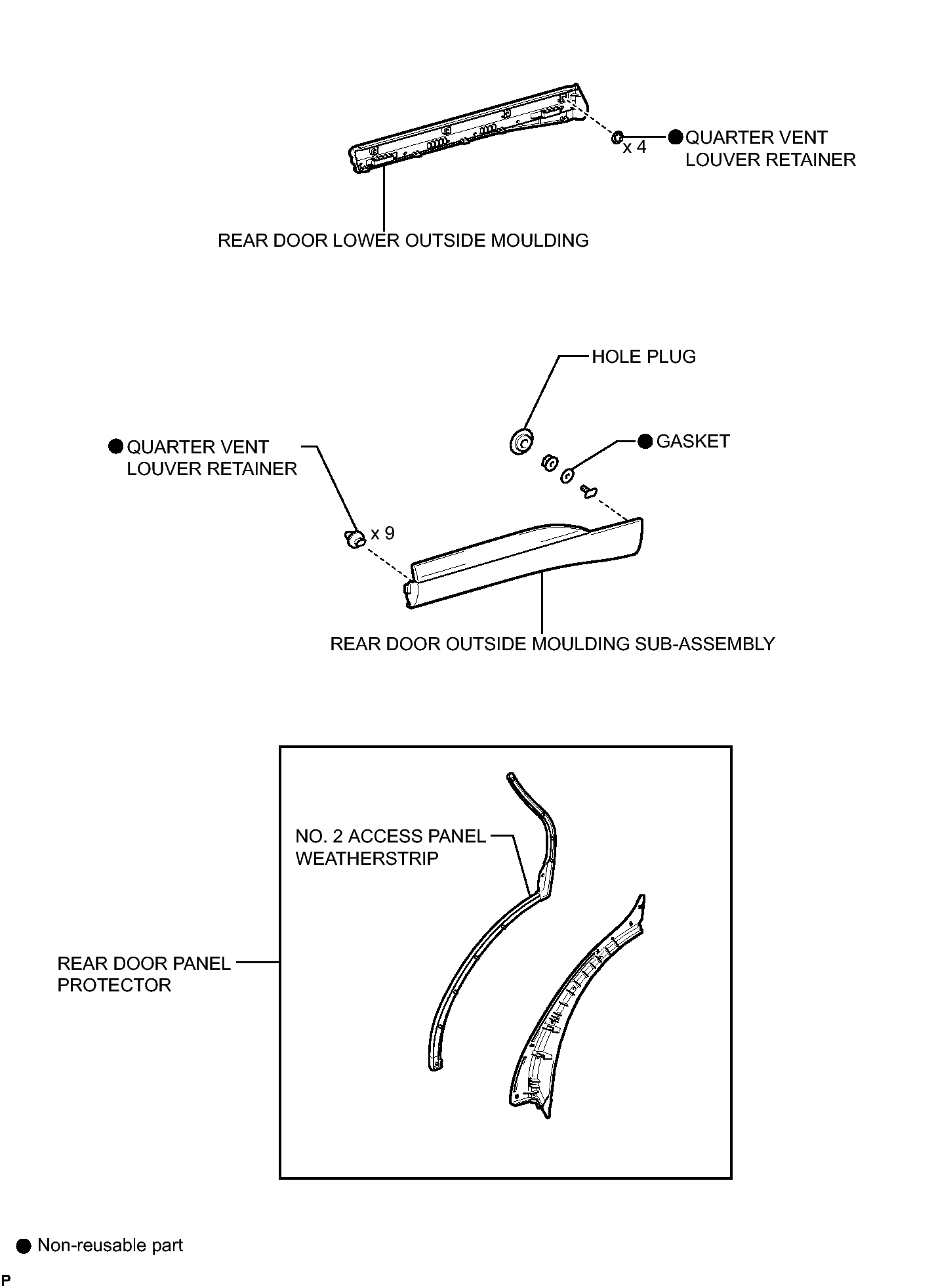

Fig 1: Identifying Rear Door Replacement Components (4 Of 5)
GTY287832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

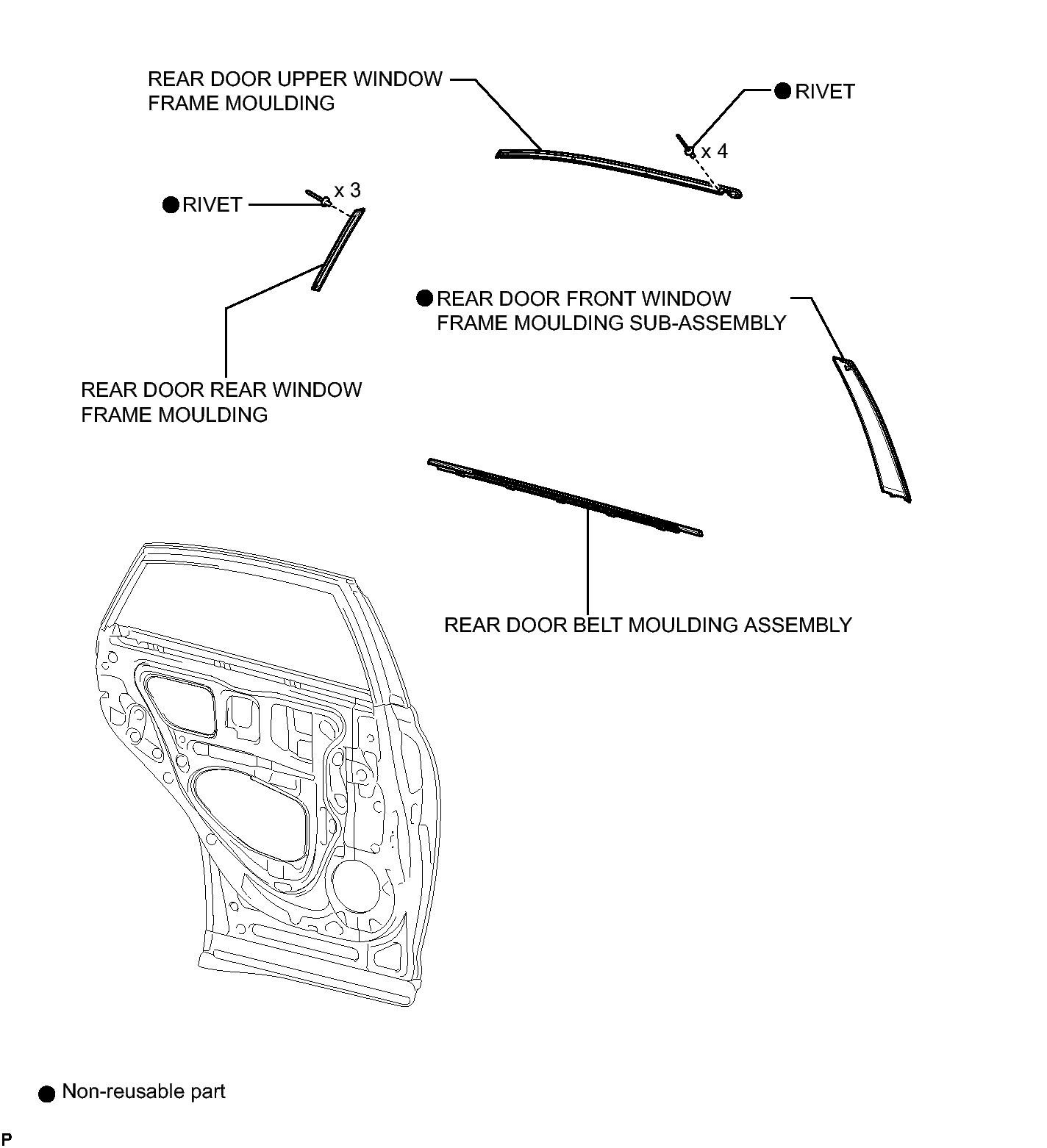

Fig 1: Identifying Rear Door Replacement Components (5 Of 5)
GTY282687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
