Hood Support: Components: Illustration

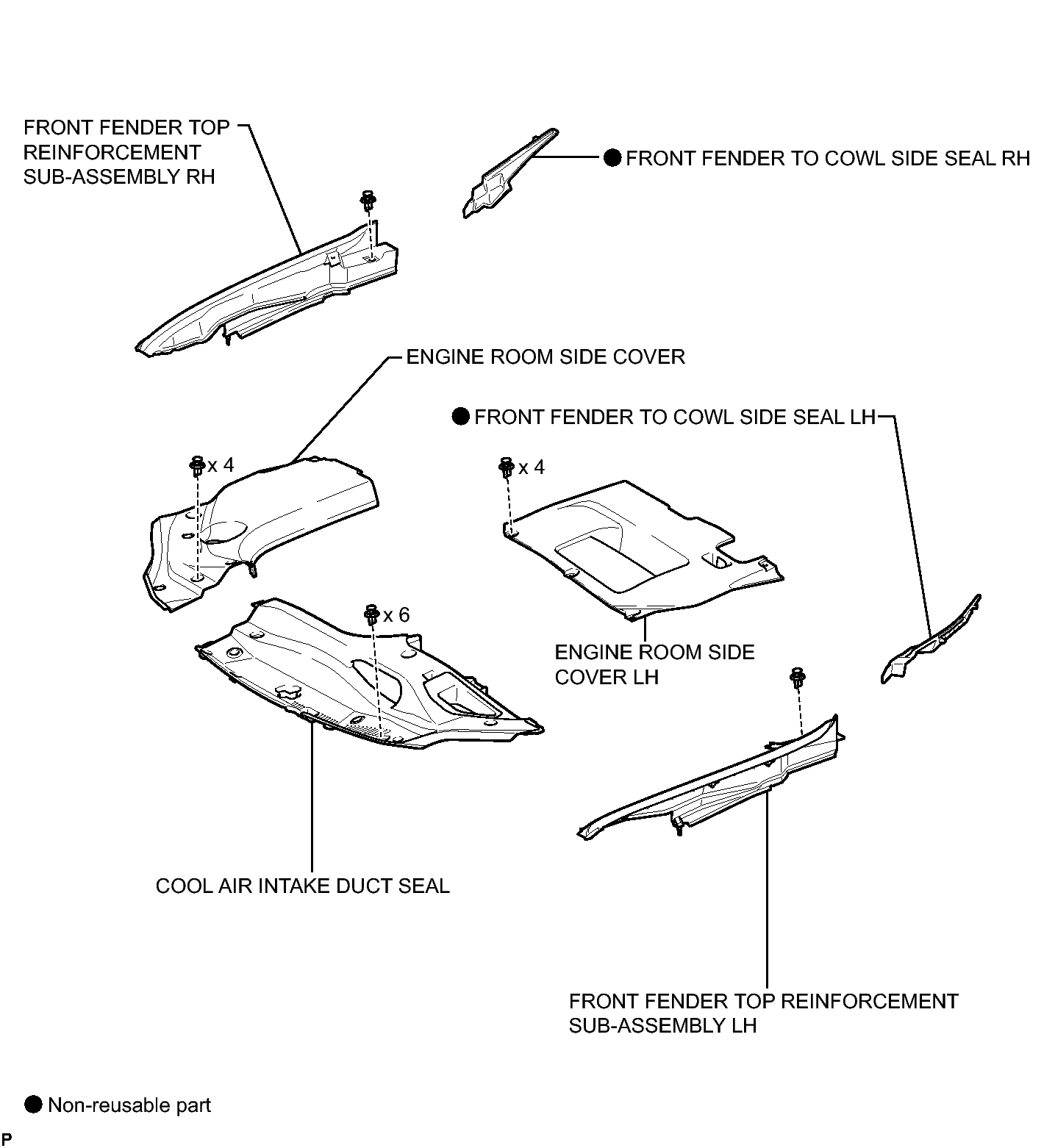

Fig 1: Identifying Hood Support Replacement Components (1 Of 4)
GTY261385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


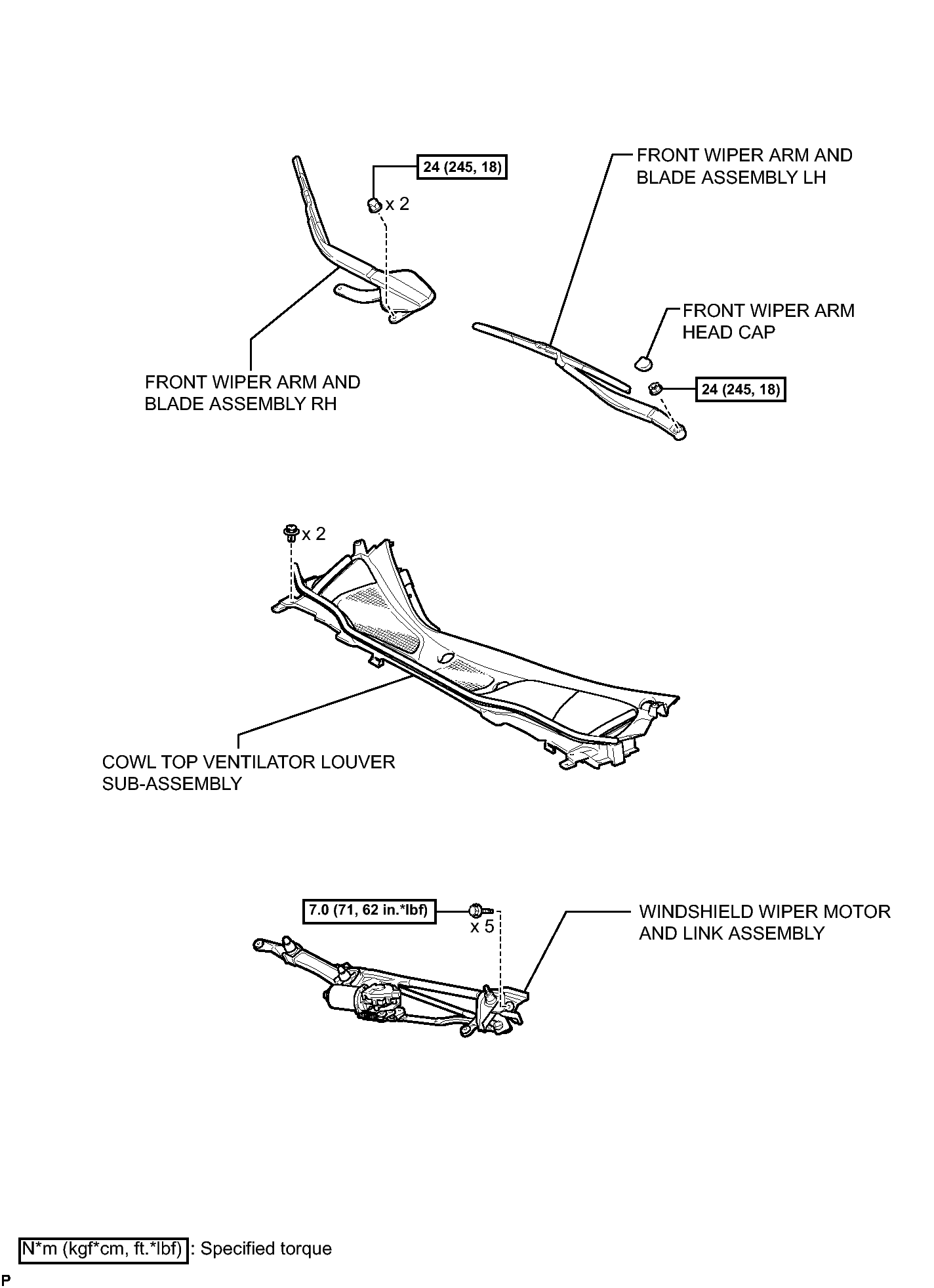

Fig 1: Identifying Hood Support Replacement Components With Torque Specifications (2 Of 4)
GTY277456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

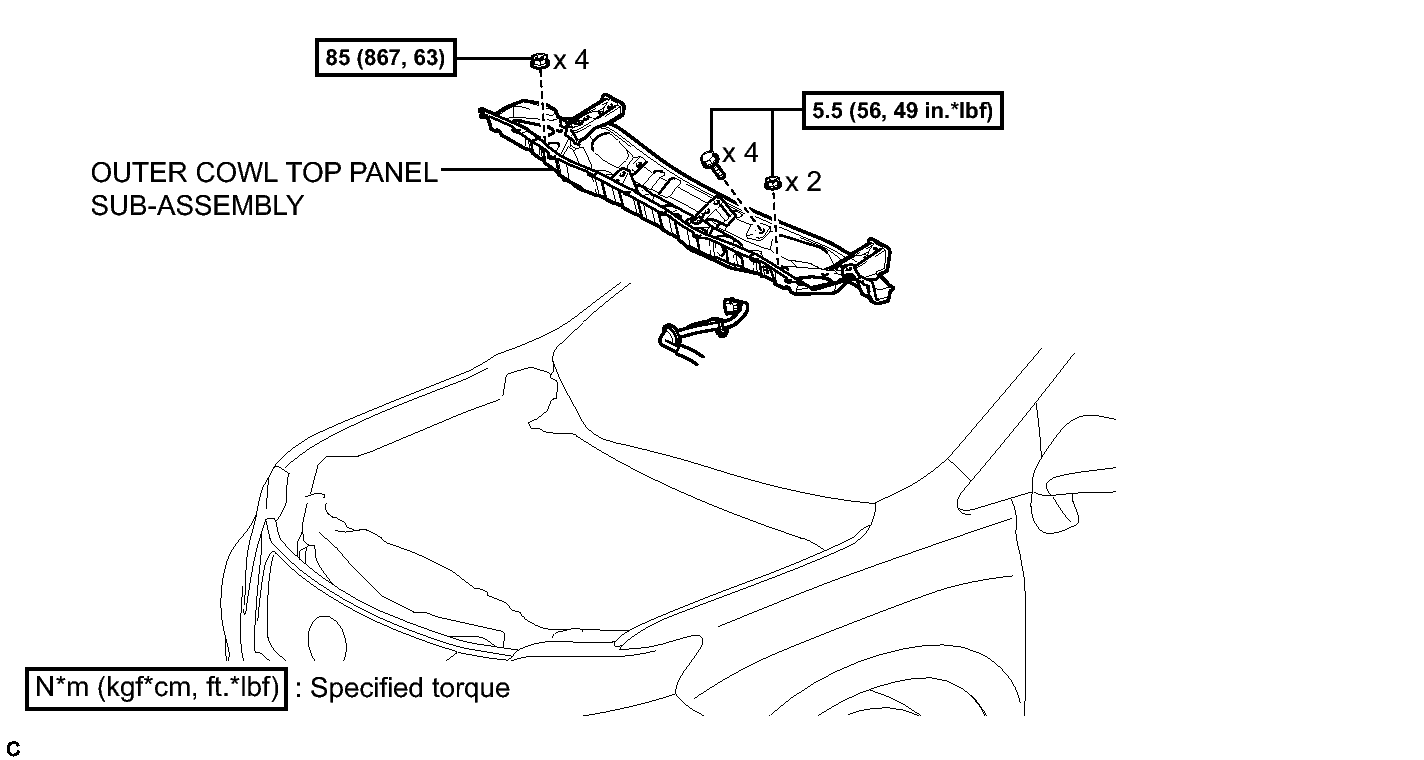

Fig 1: Identifying Hood Support Replacement Components (3 of 4) With Torque Specifications
GTY351509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

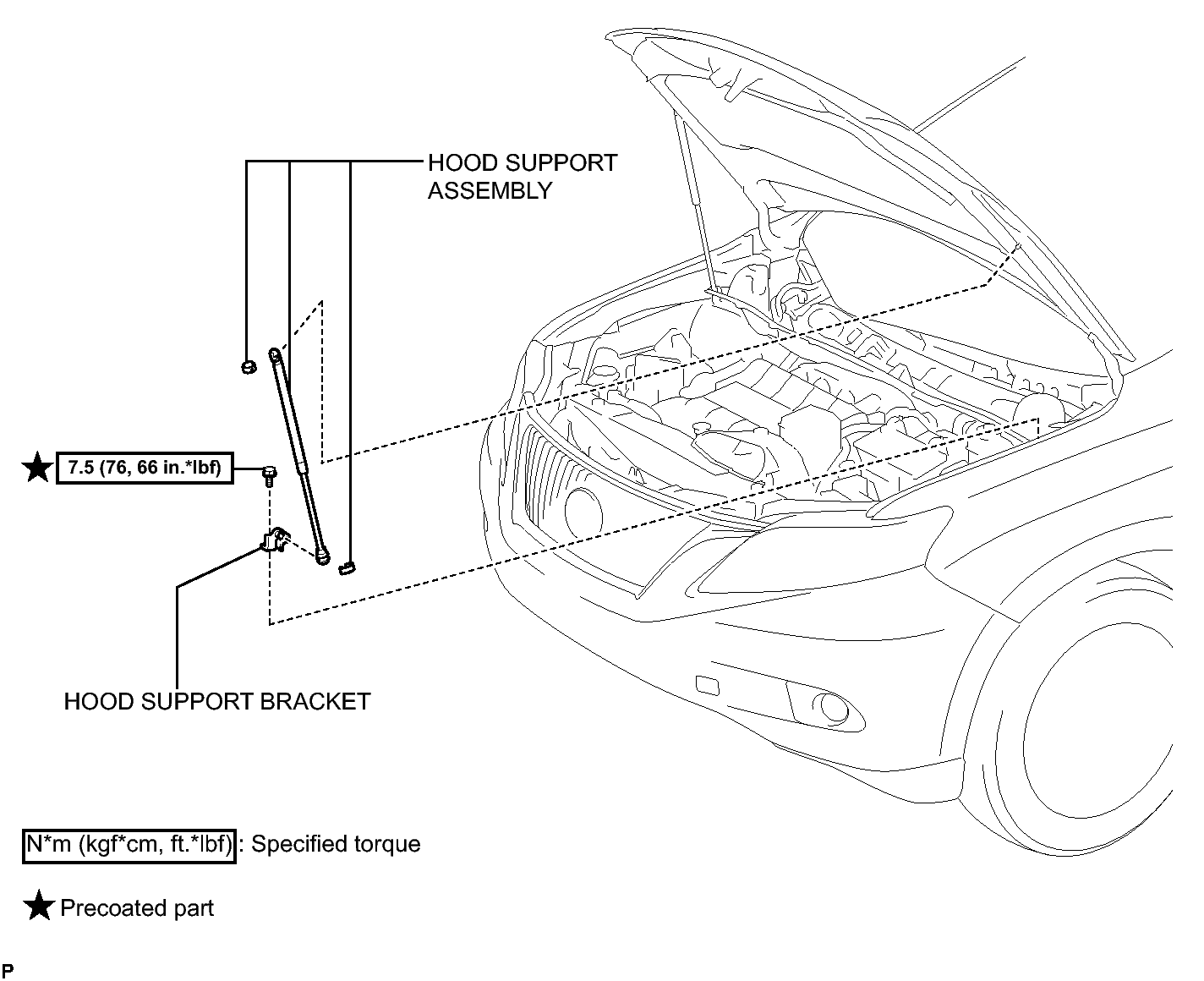

Fig 1: Identifying Hood Support Replacement Components With Torque Specifications (4 Of 4)
GTY254739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
