Front Door: Components: Illustration

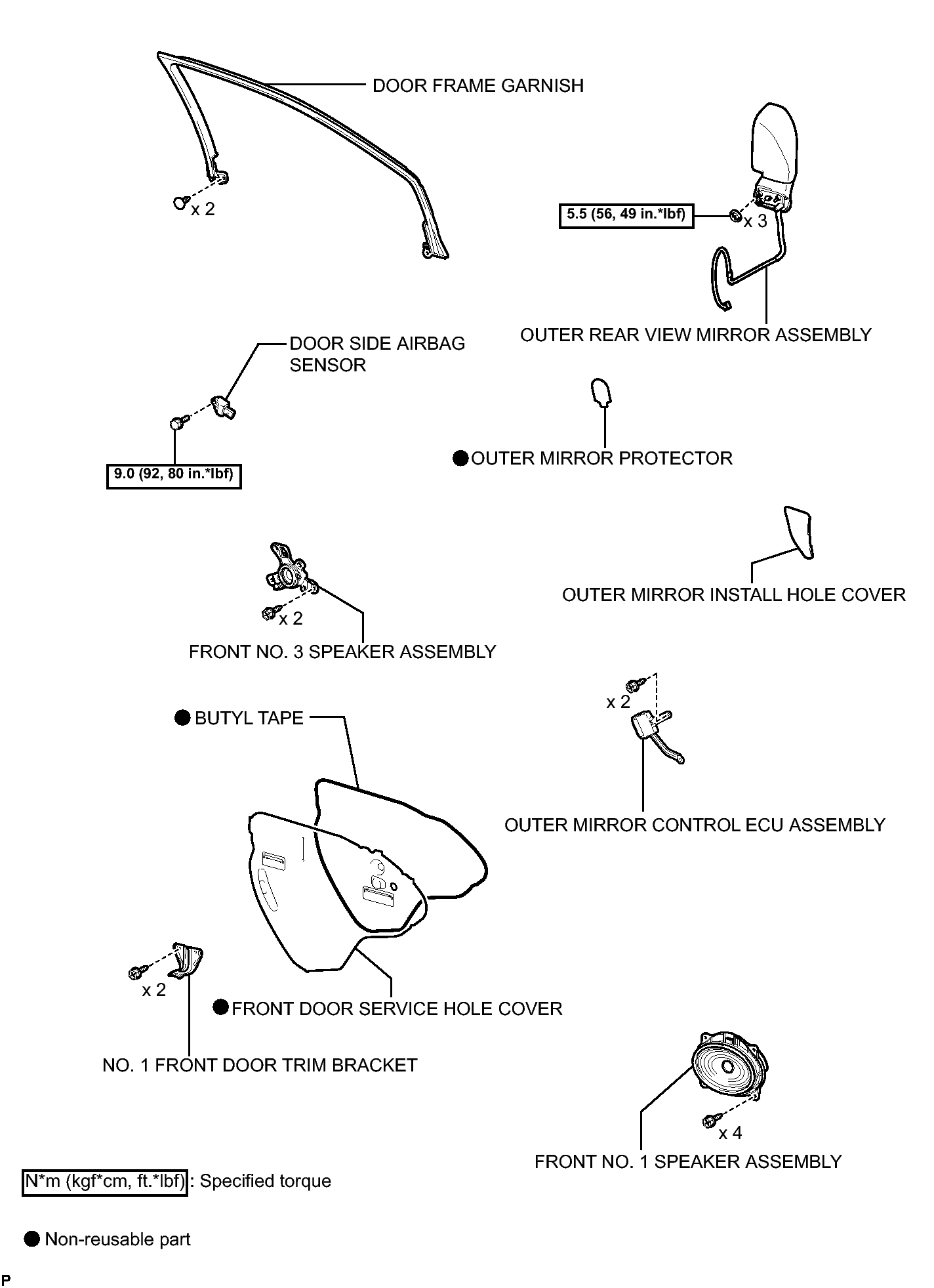

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

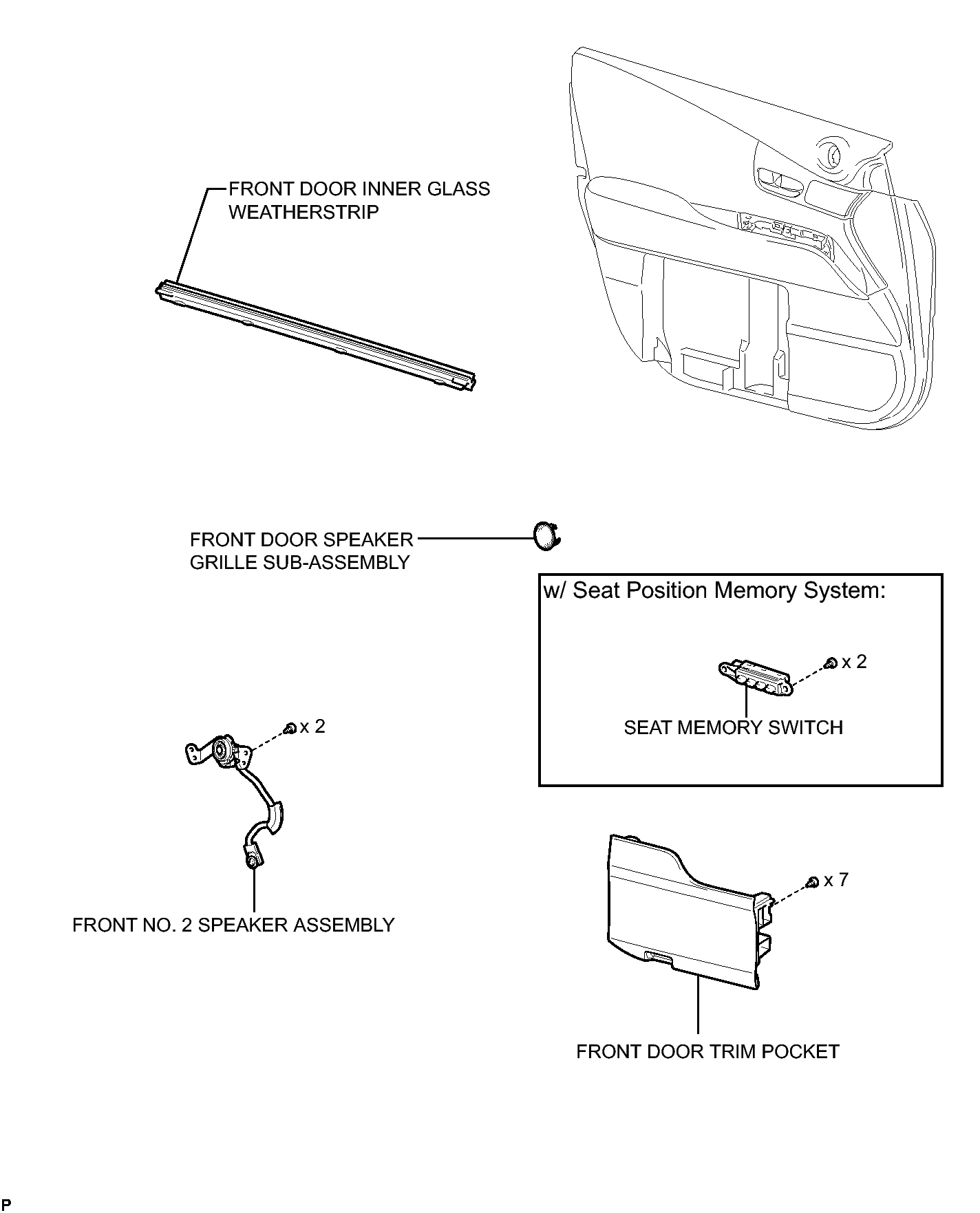

Fig 1: Identifying Front Door Replacement Components (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

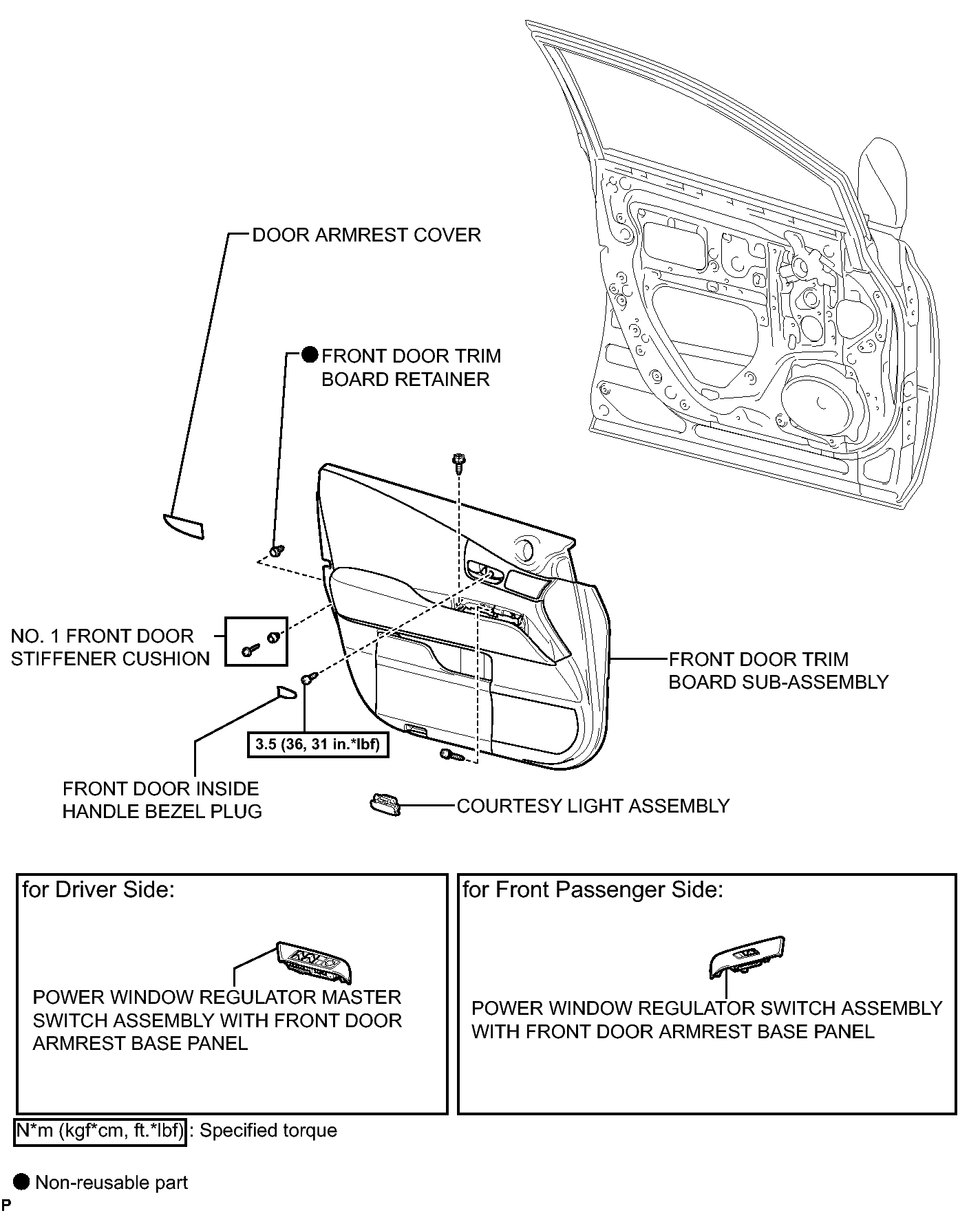

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

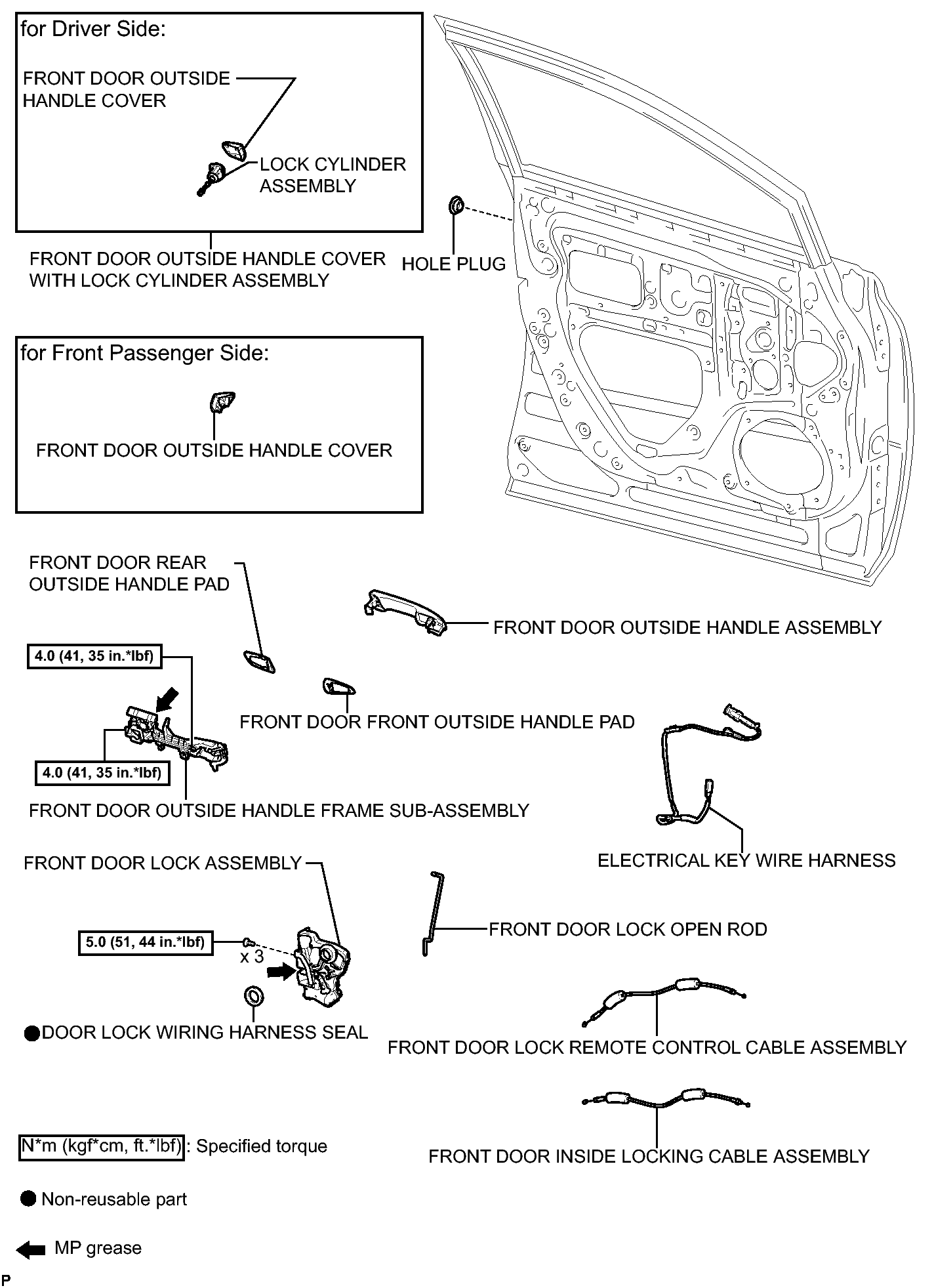

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

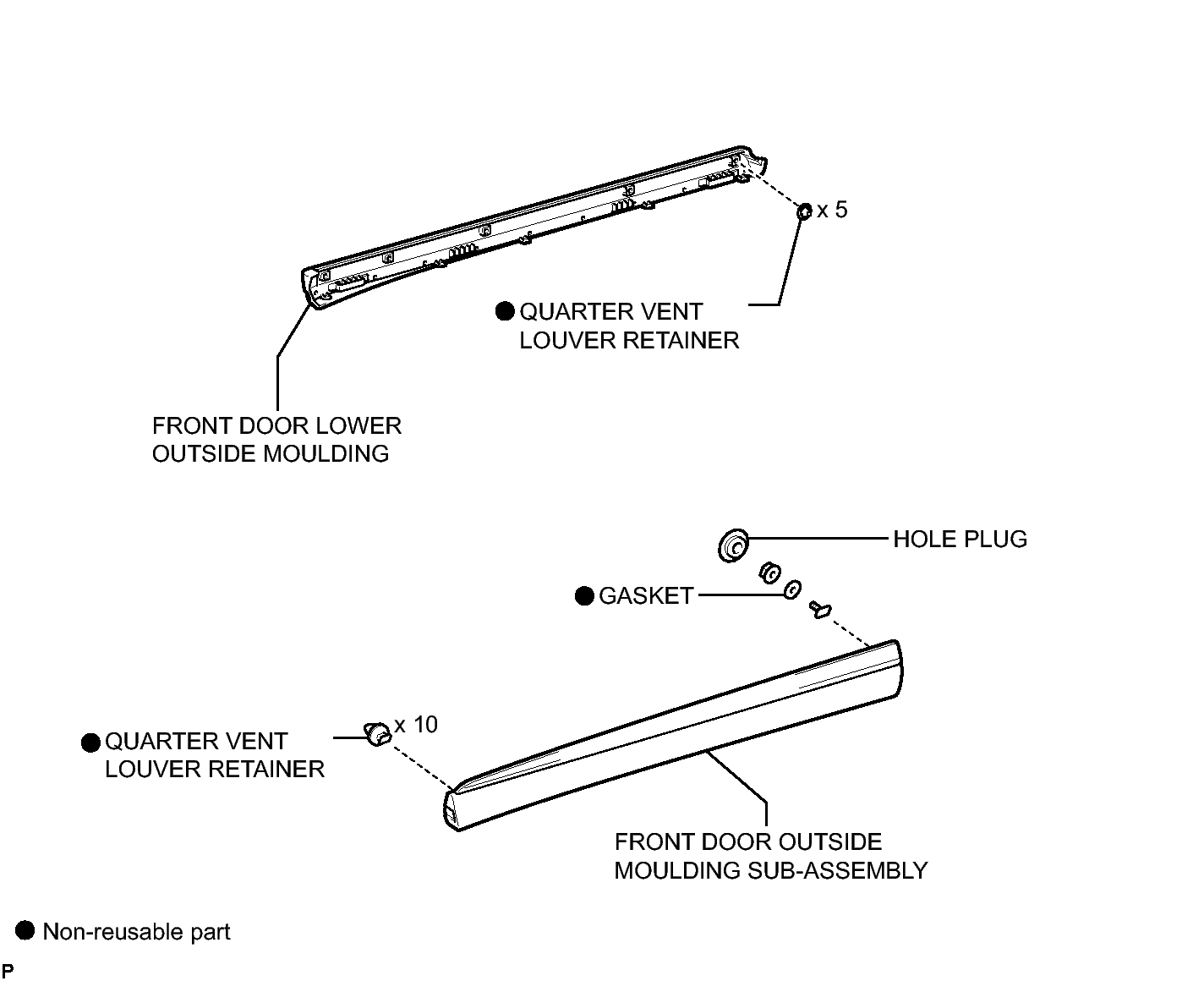

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (5 Of 7)

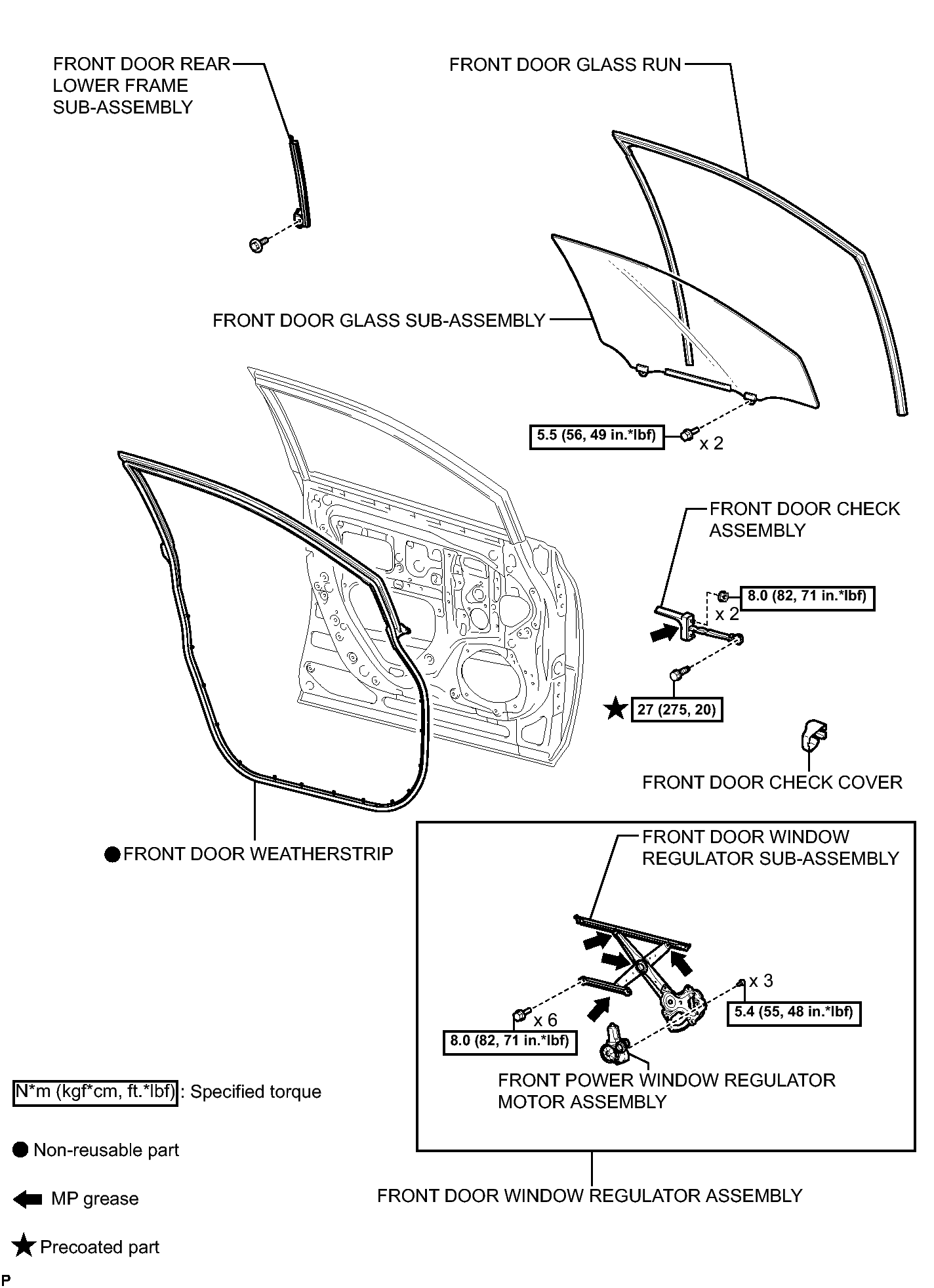

Fig 1: Identifying Front Door Replacement Components (6 Of 7)

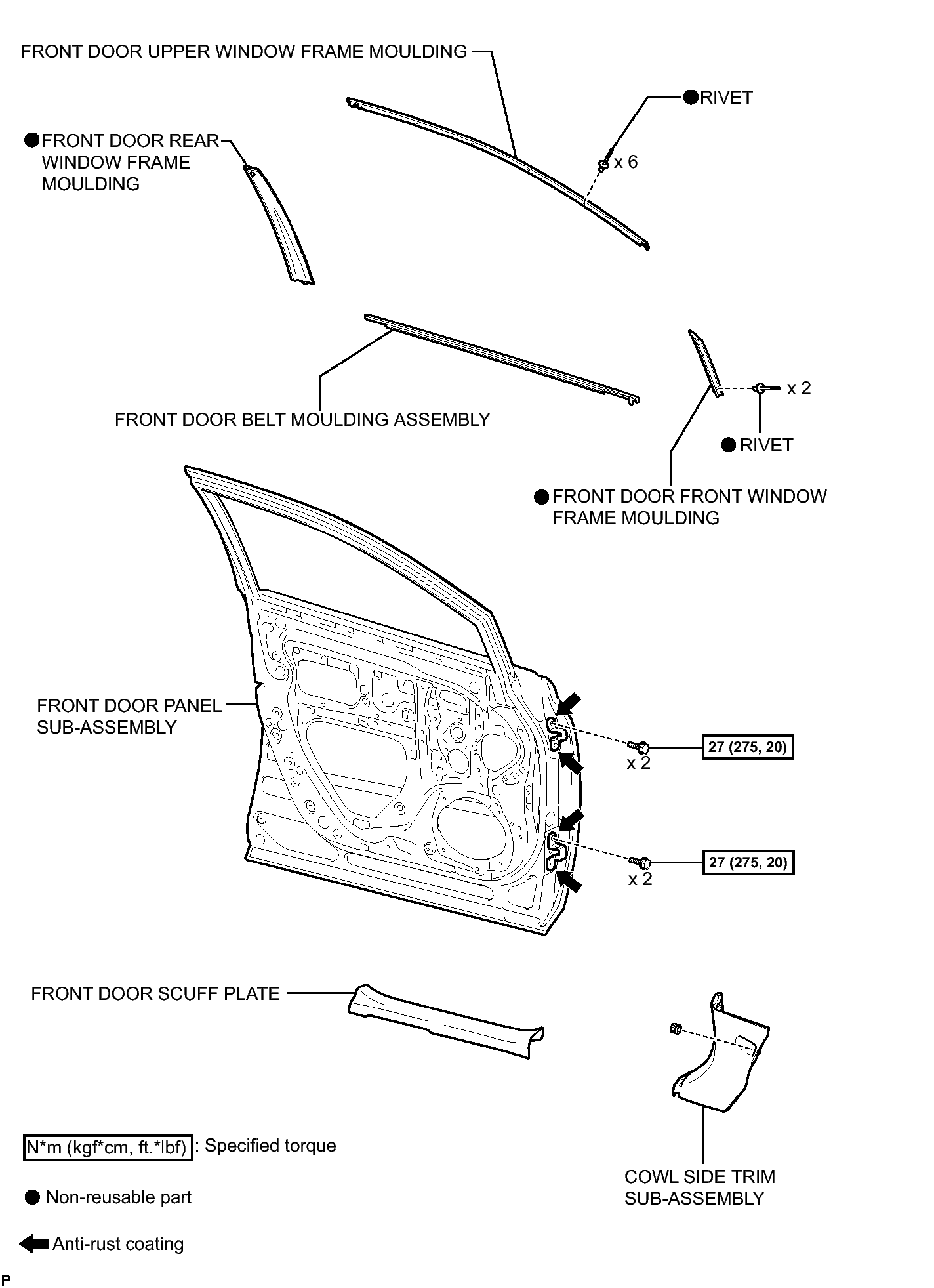

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (7 Of 7)
