Back Door: Components: Illustration

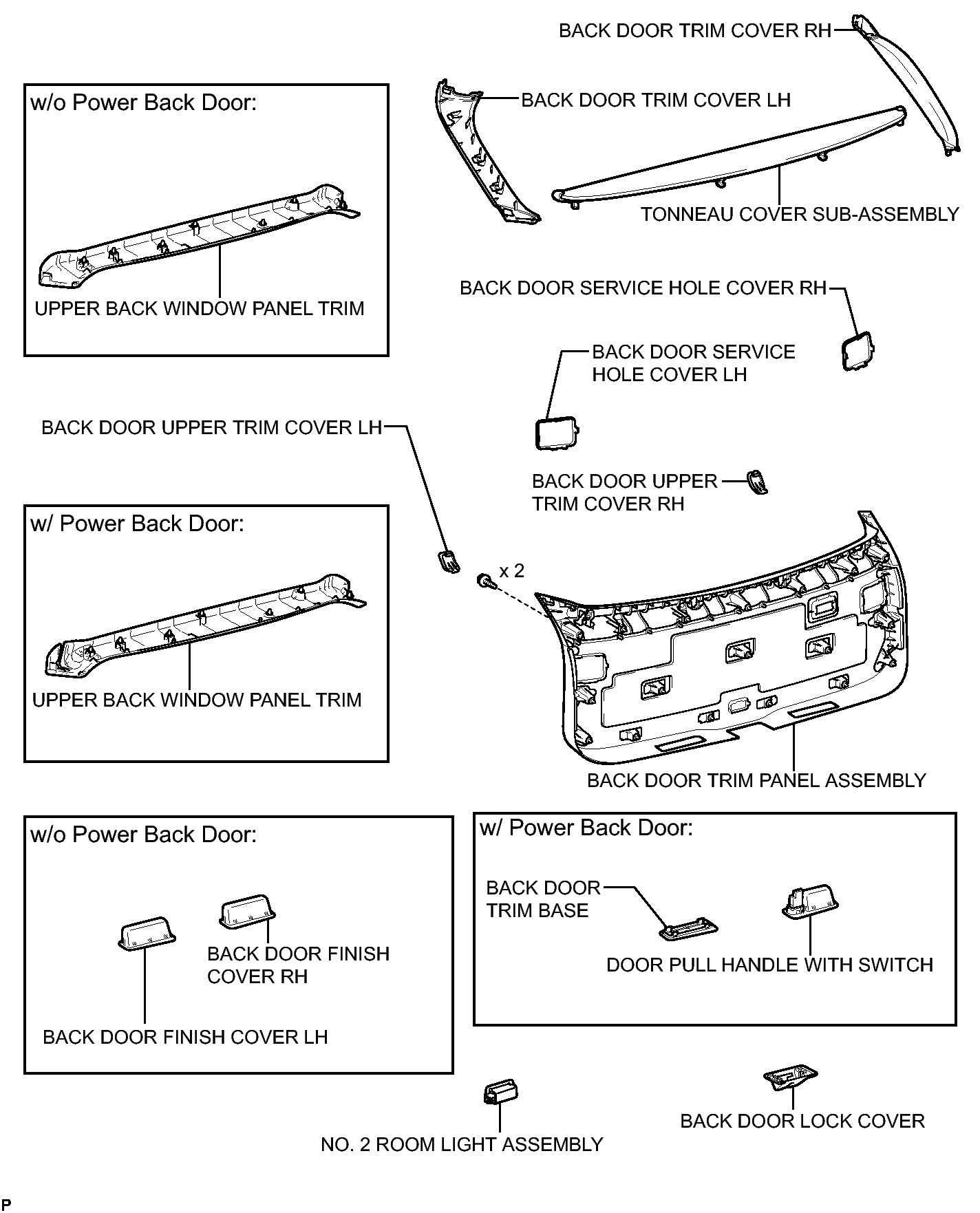

Fig 1: Identifying Back Door Replacement Components (1 Of 6)
GTY277797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

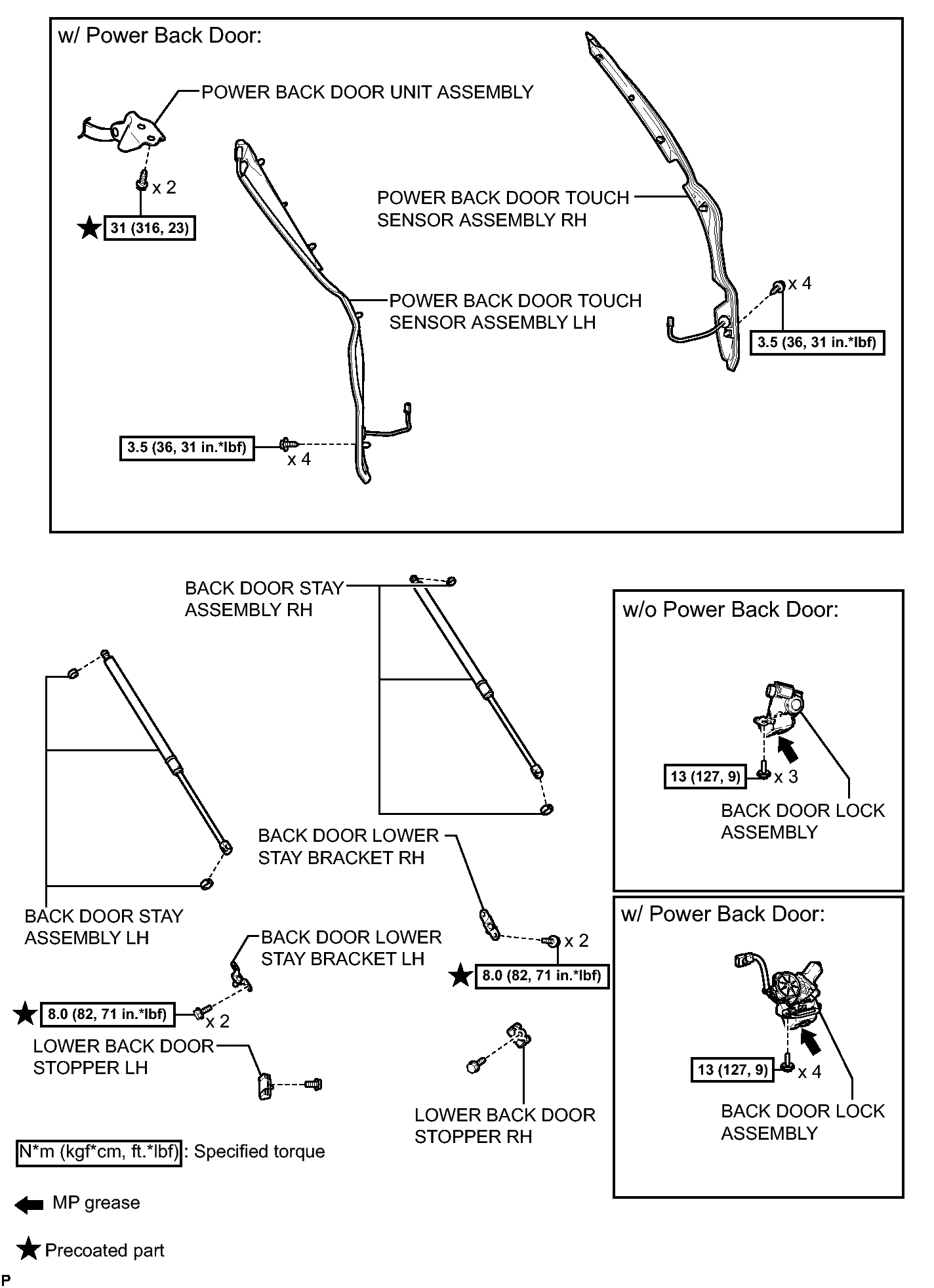

Fig 1: Identifying Back Door Replacement Components With Torque Specifications (2 Of 6)
GTY351767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

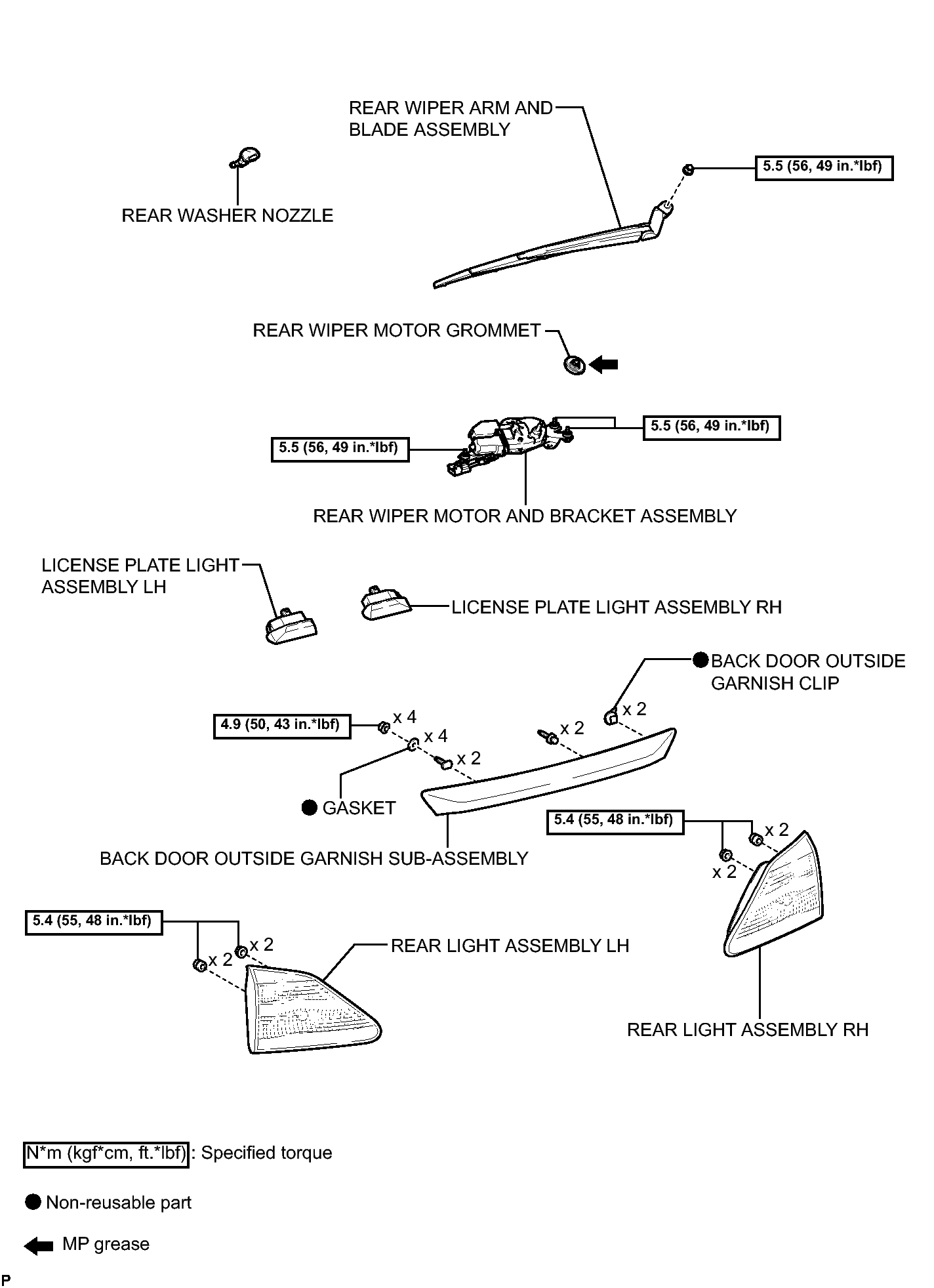

Fig 1: Identifying Back Door Replacement Components With Torque Specifications (3 Of 6)
GTY270251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

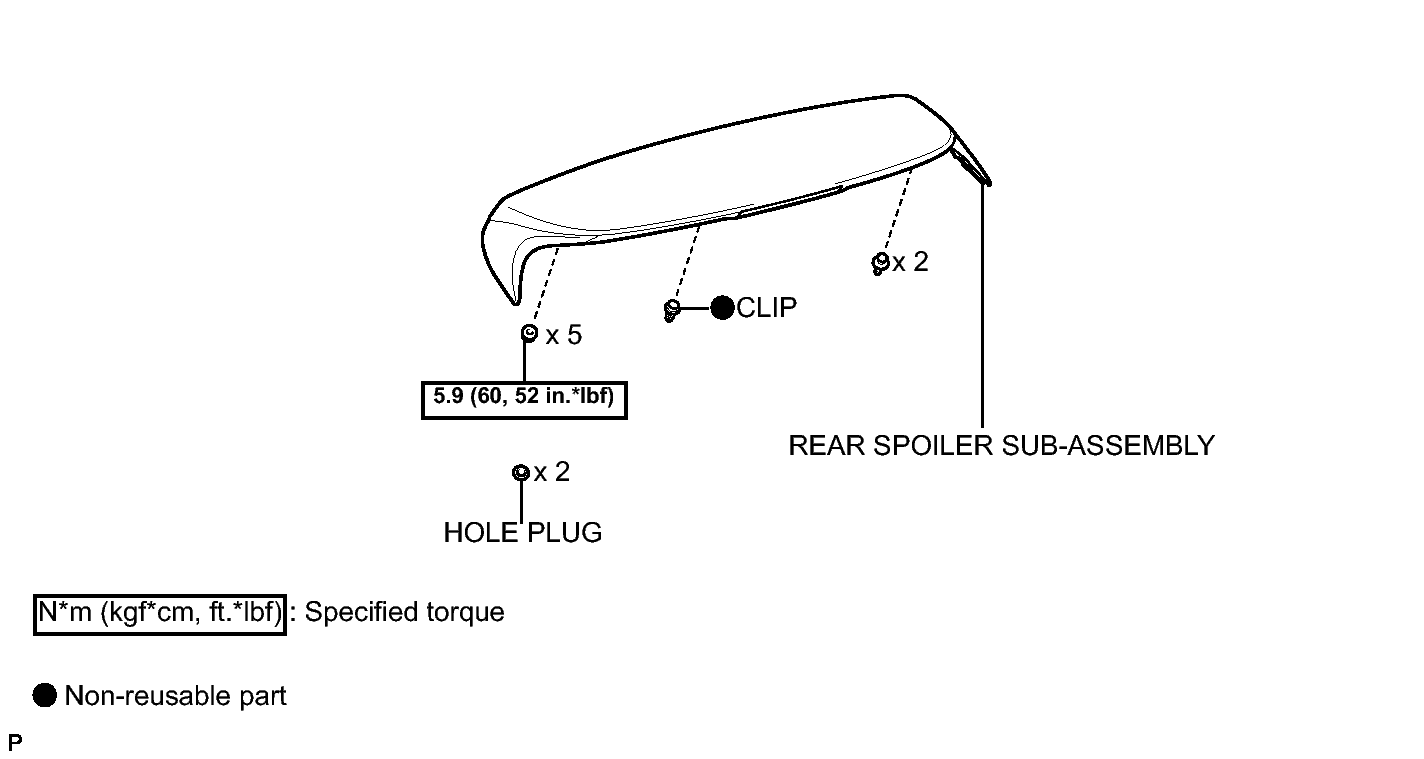

Fig 1: Identifying Back Door Replacement Components With Torque Specifications (4 Of 6)
GTY283246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Back Door Replacement Components (5 Of 6)
GTY257863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

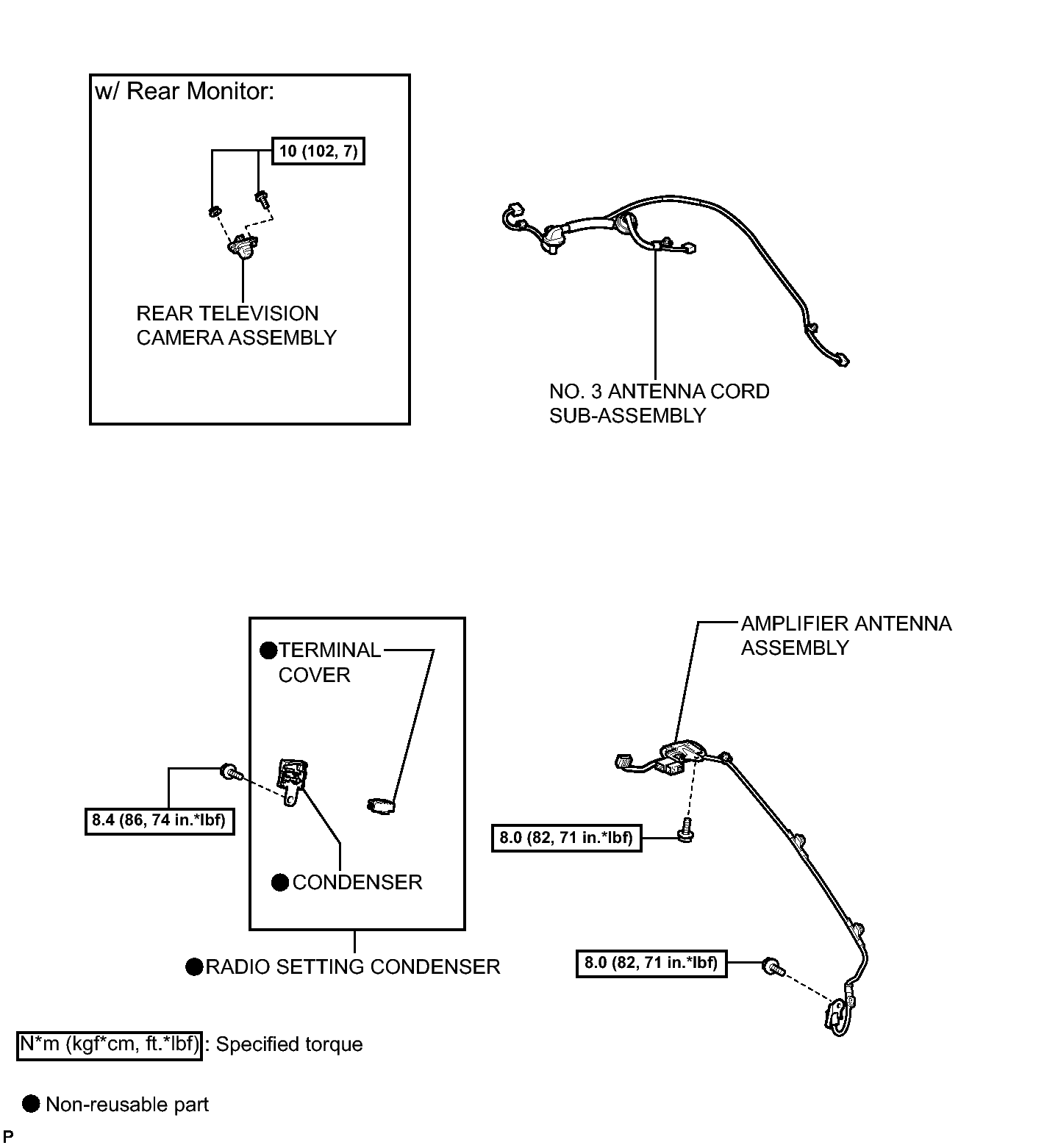

Fig 1: Identifying Back Door Replacement Components With Torque Specifications (6 Of 6)
GTY275043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
