Parts Location: Illustration

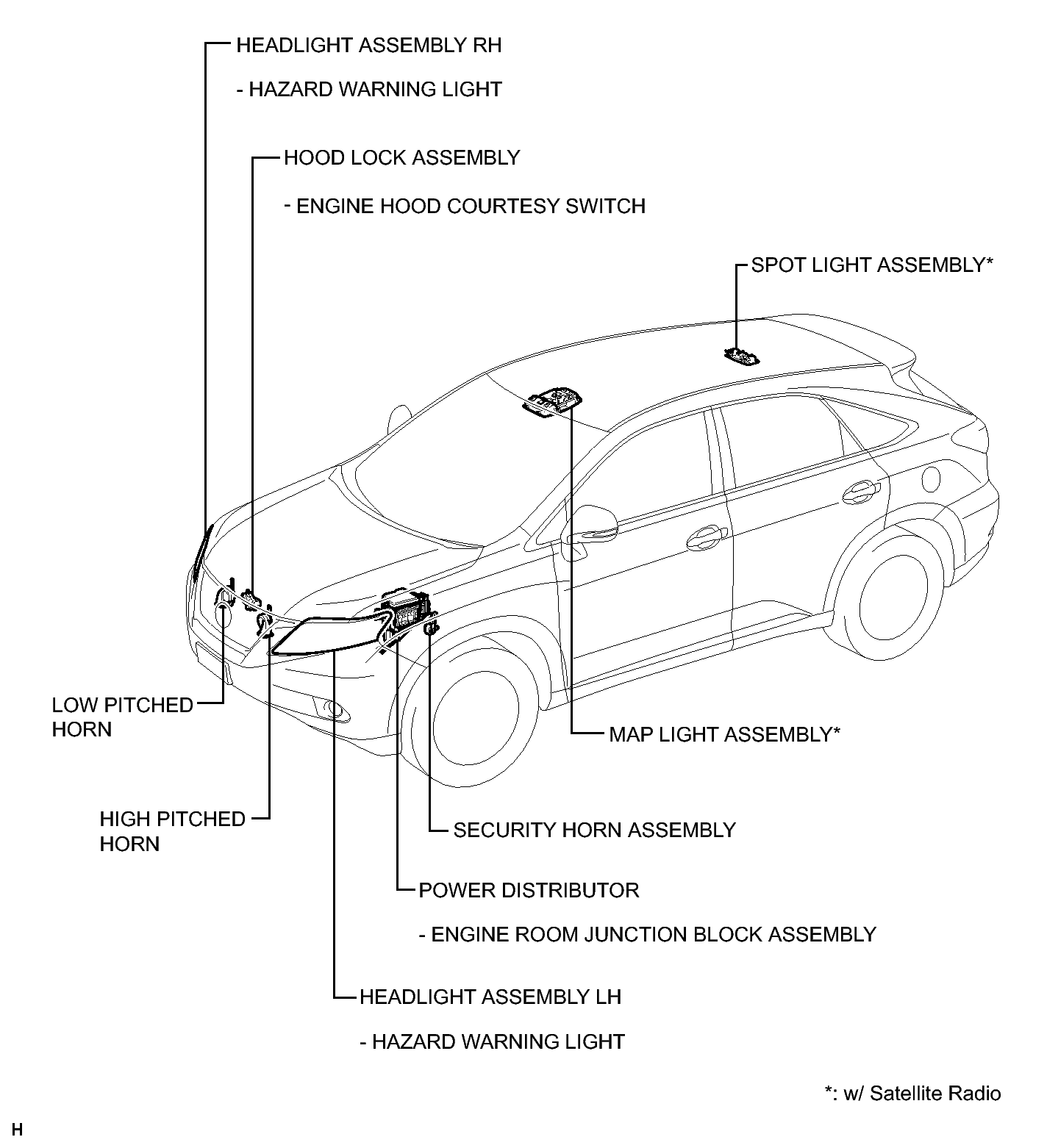

Fig 1: Identifying Theft Deterrent System Components Location (1 of 3)
GTY266777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

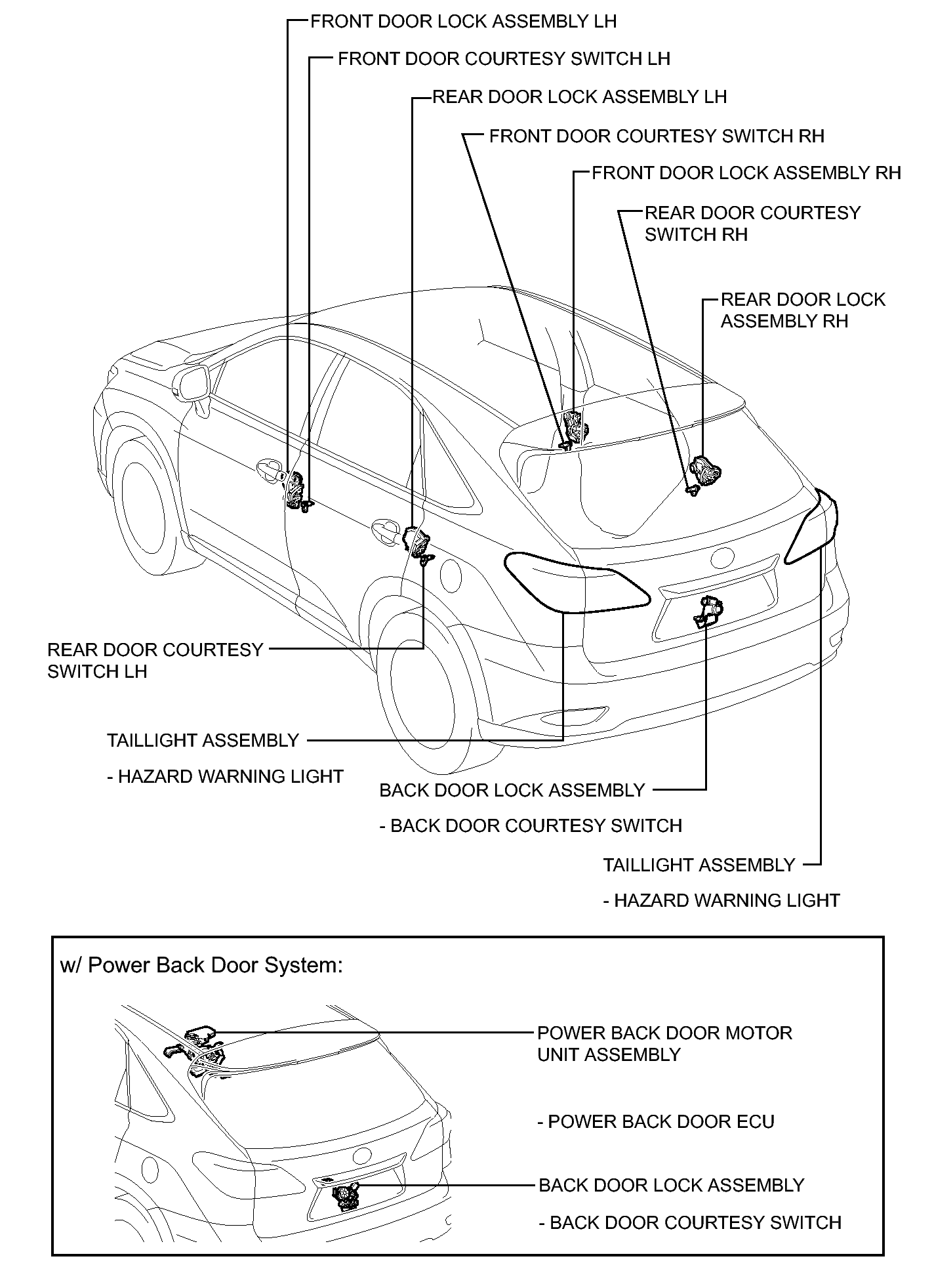

Fig 1: Identifying Theft Deterrent System Components Location (2 of 3)
GTY260724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

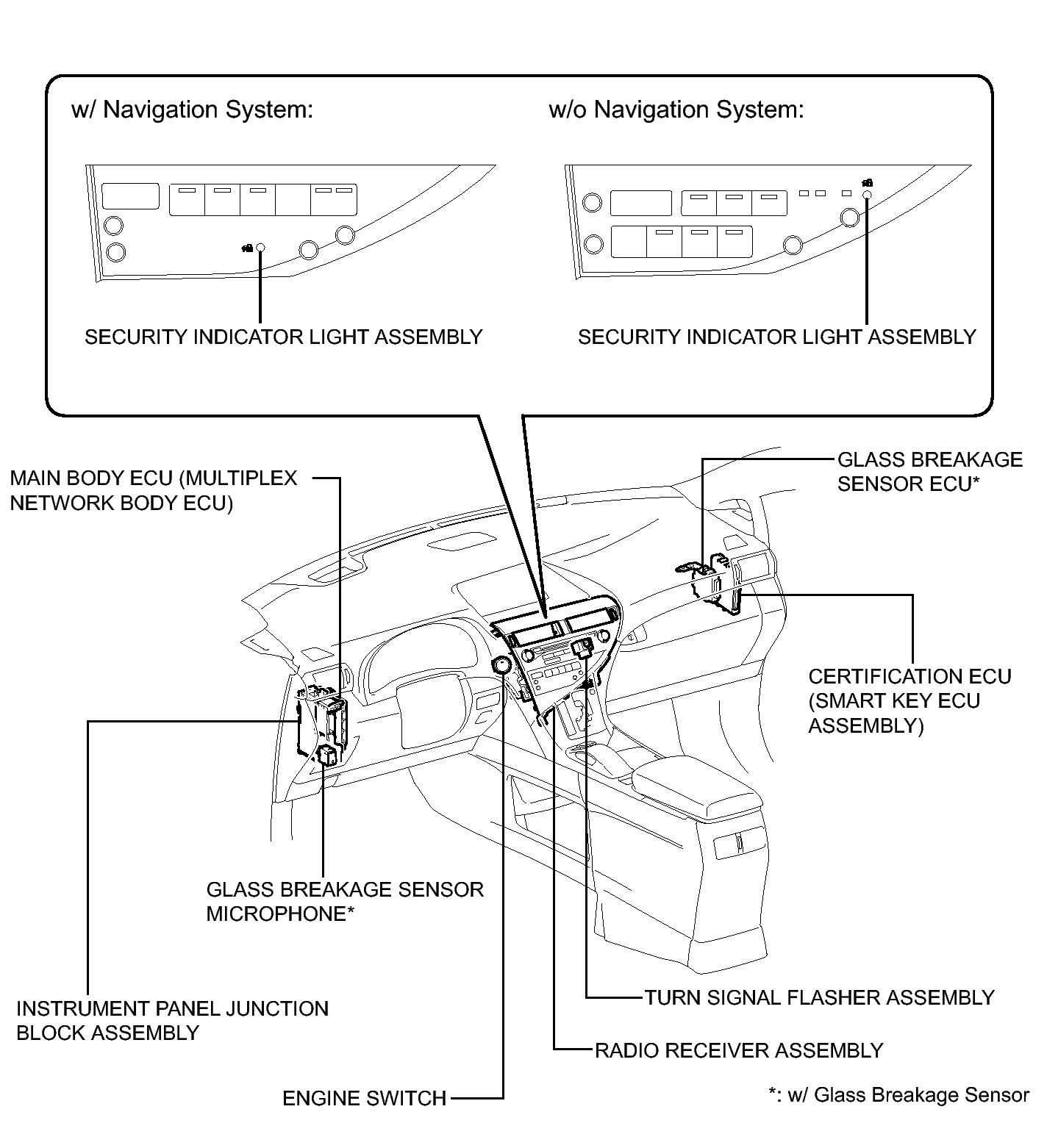

Fig 1: Identifying Theft Deterrent System Components Location (3 of 3)
GTY254764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
