Front Passenger Side Seat Belt Warning Light Malfunction: Wiring Diagram

  1. w/ Occupant Classification System

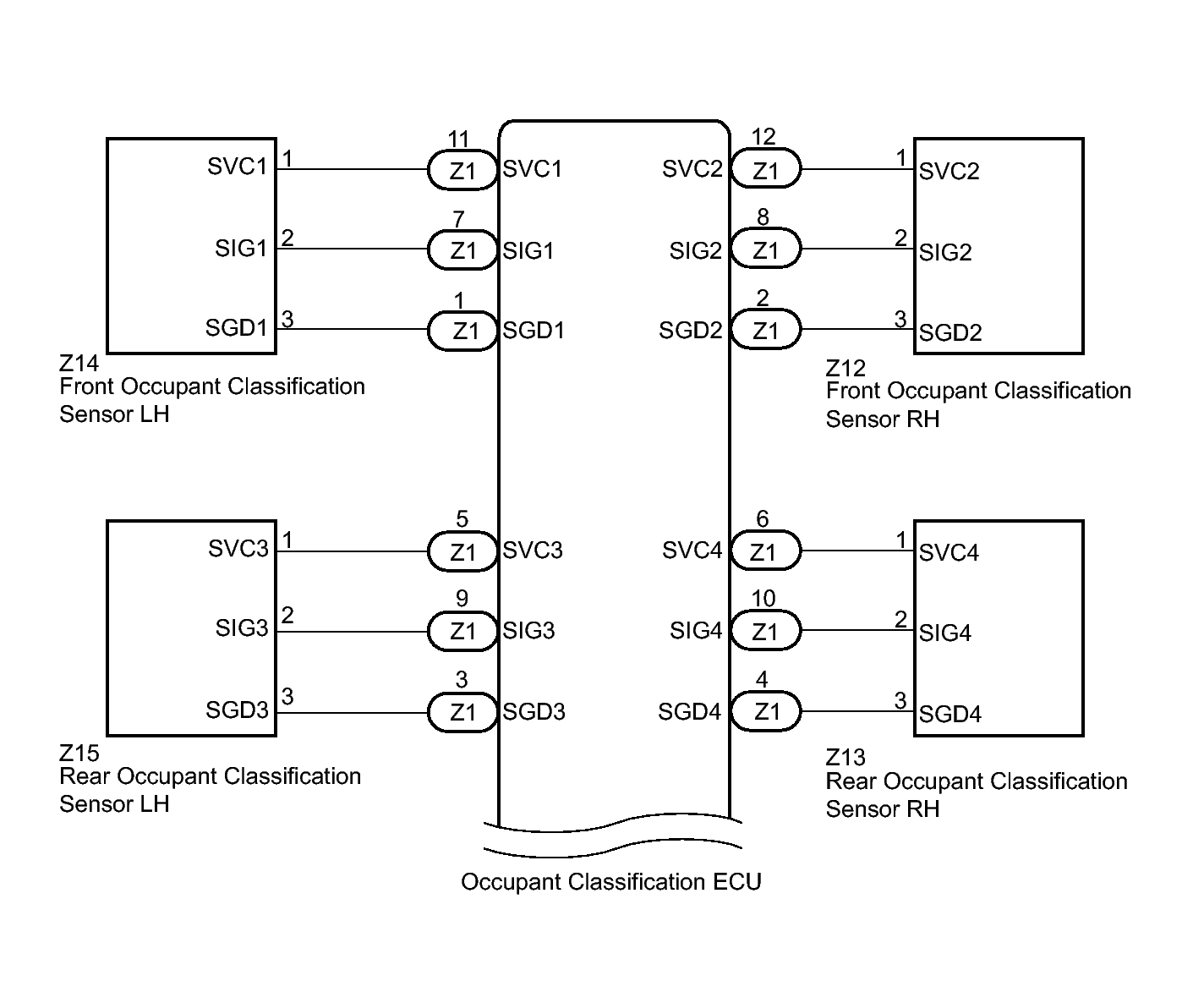

    Fig 1: Identifying Front Passenger Side Seat Belt Warning Light Wiring Diagram (1 Of 3)
    GTY357450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

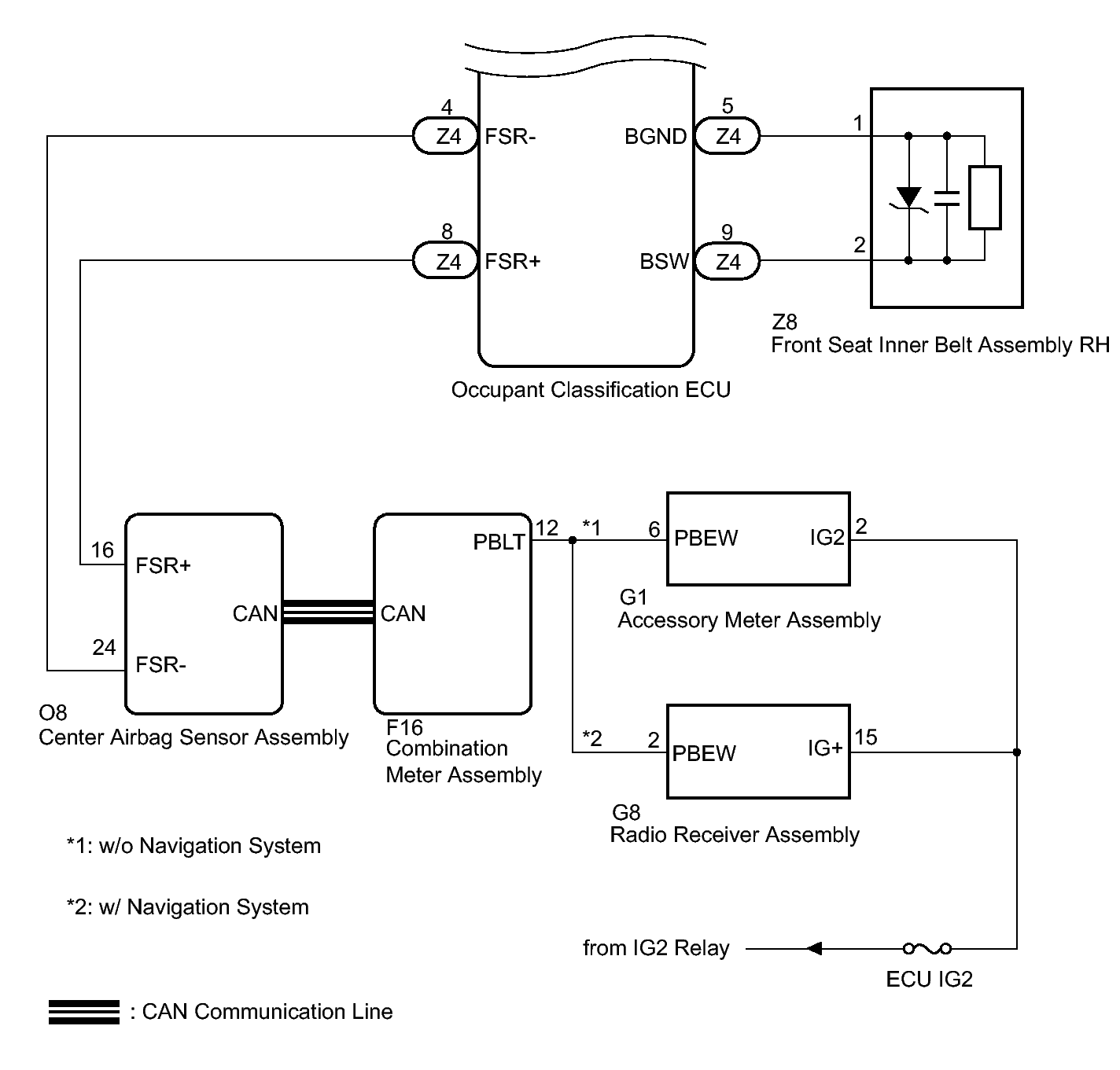

    Fig 2: Identifying Front Passenger Side Seat Belt Warning Light Wiring Diagram (2 Of 3)
    GTY356438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o Occupant Classification System

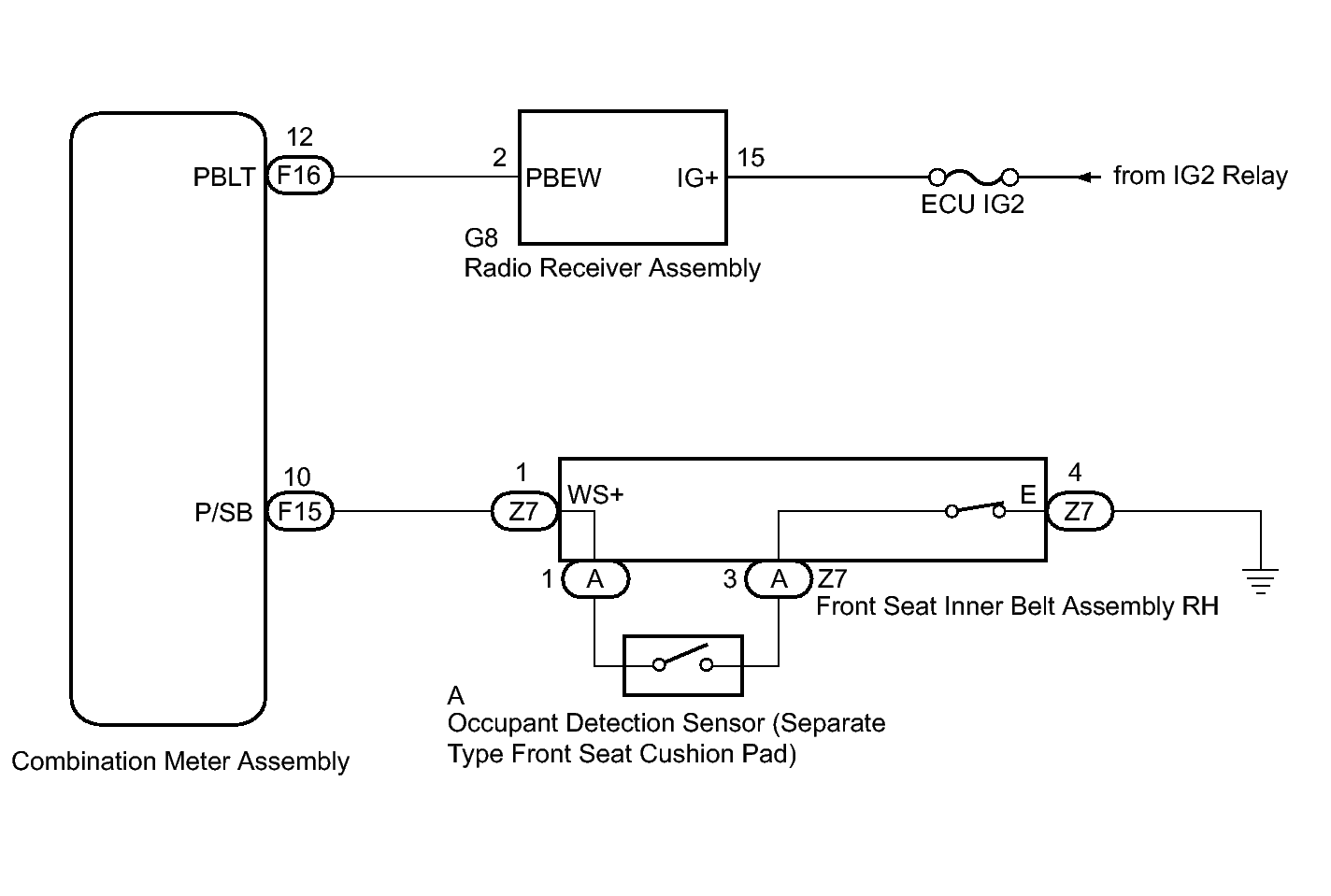

    Fig 3: Identifying Front Passenger Side Seat Belt Warning Light Wiring Diagram (3 Of 3)
    GTY352553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
