Parts Location: Illustration

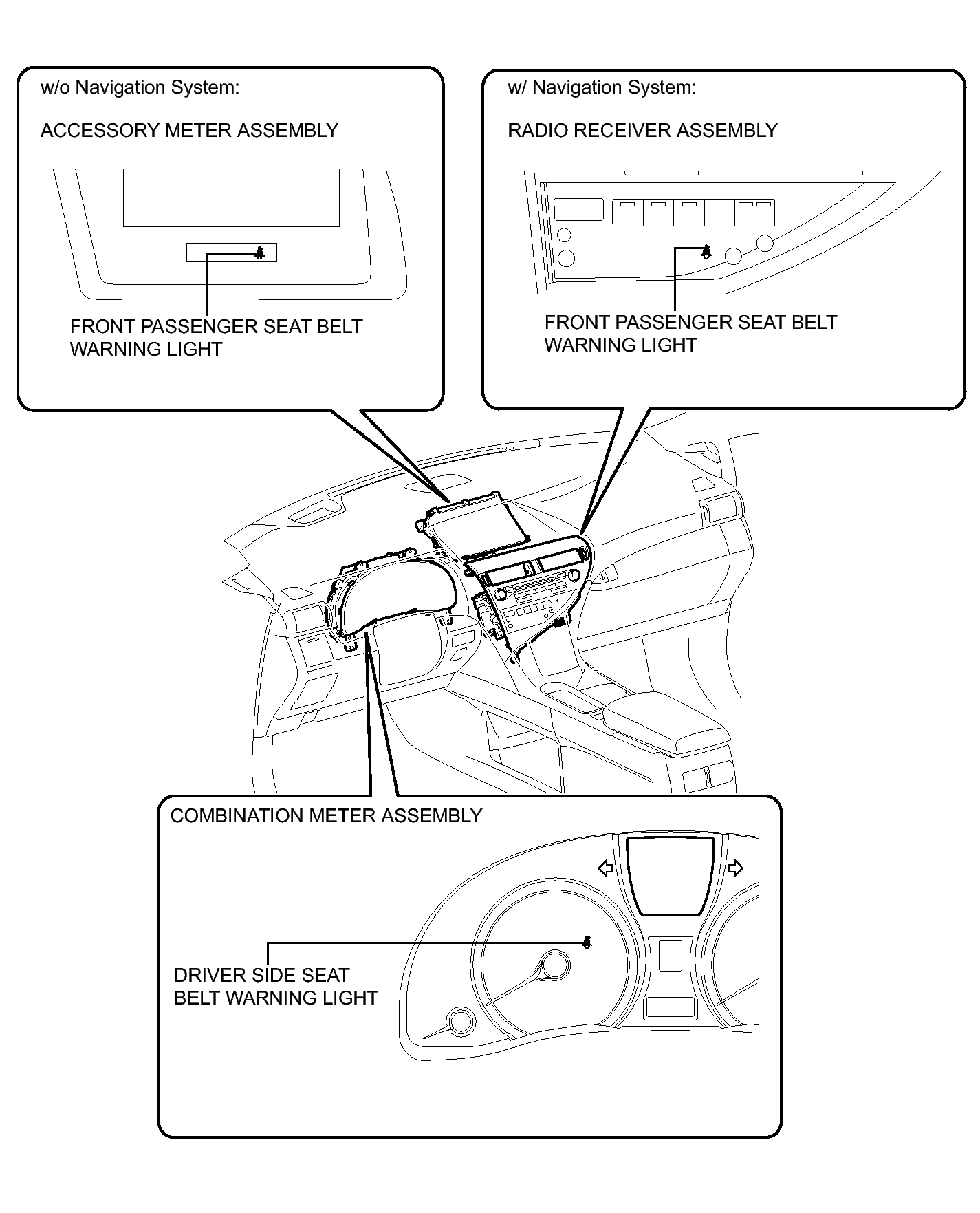

Fig 1: Identifying Seat Belt Warning System Components Location (1 of 3)
GTY275916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

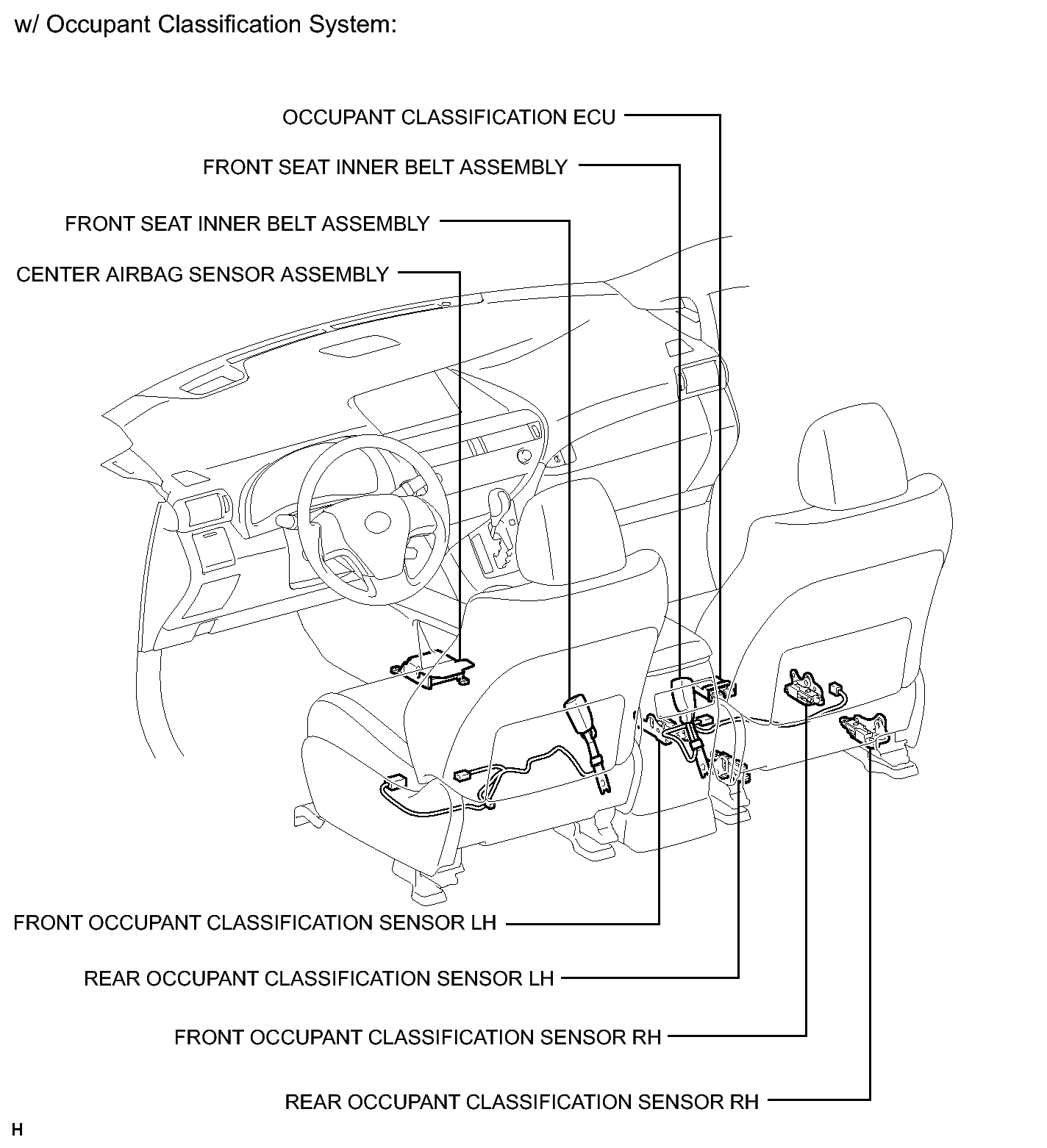

Fig 1: Identifying Seat Belt Warning System Components Location (2 of 3)
GTY271444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

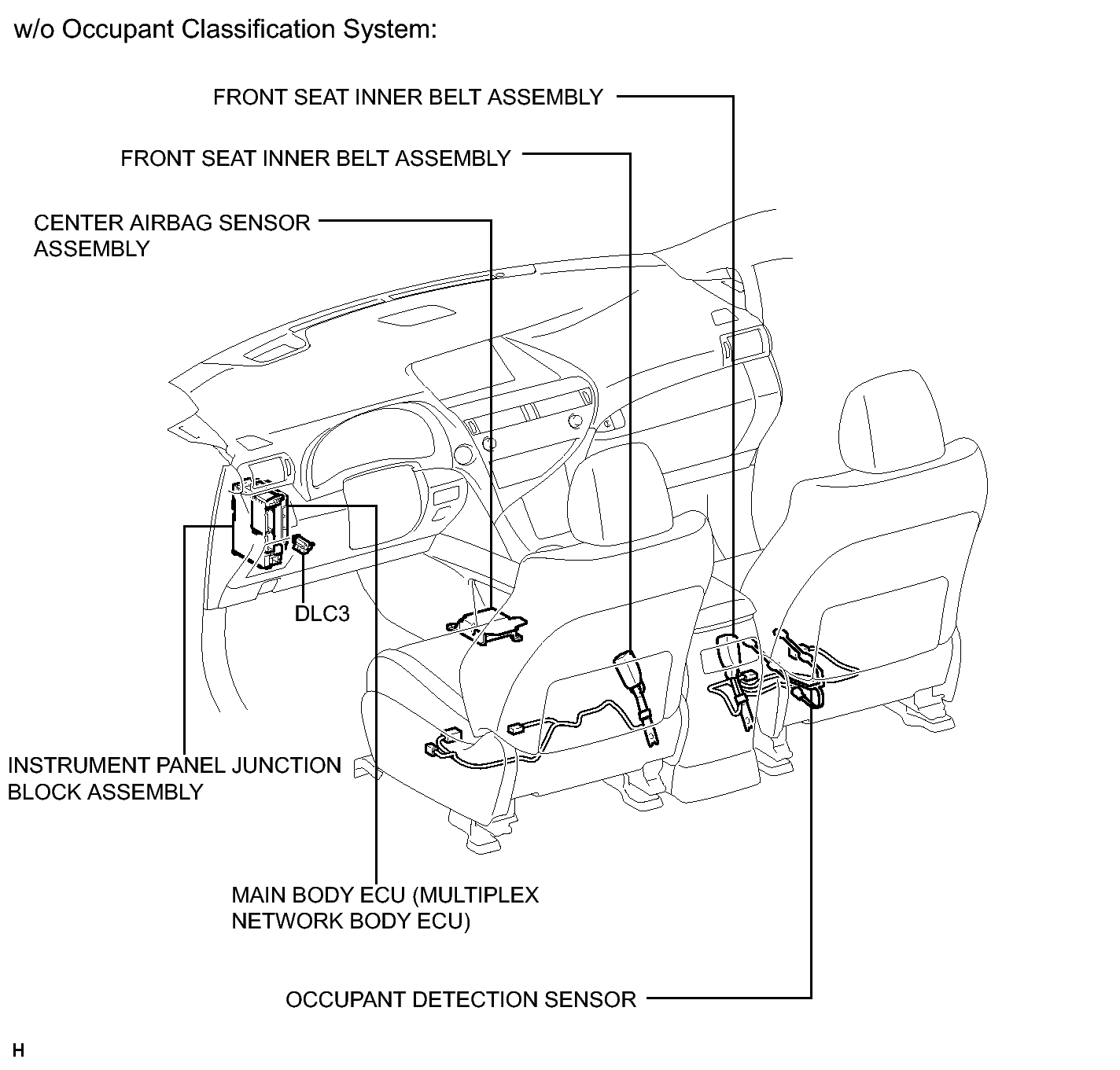

Fig 1: Identifying Seat Belt Warning System Components Location (3 of 3)
GTY263612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
