Sound Signal Circuit between Multi-display Controller and Head-phone Terminal: Wiring Diagram

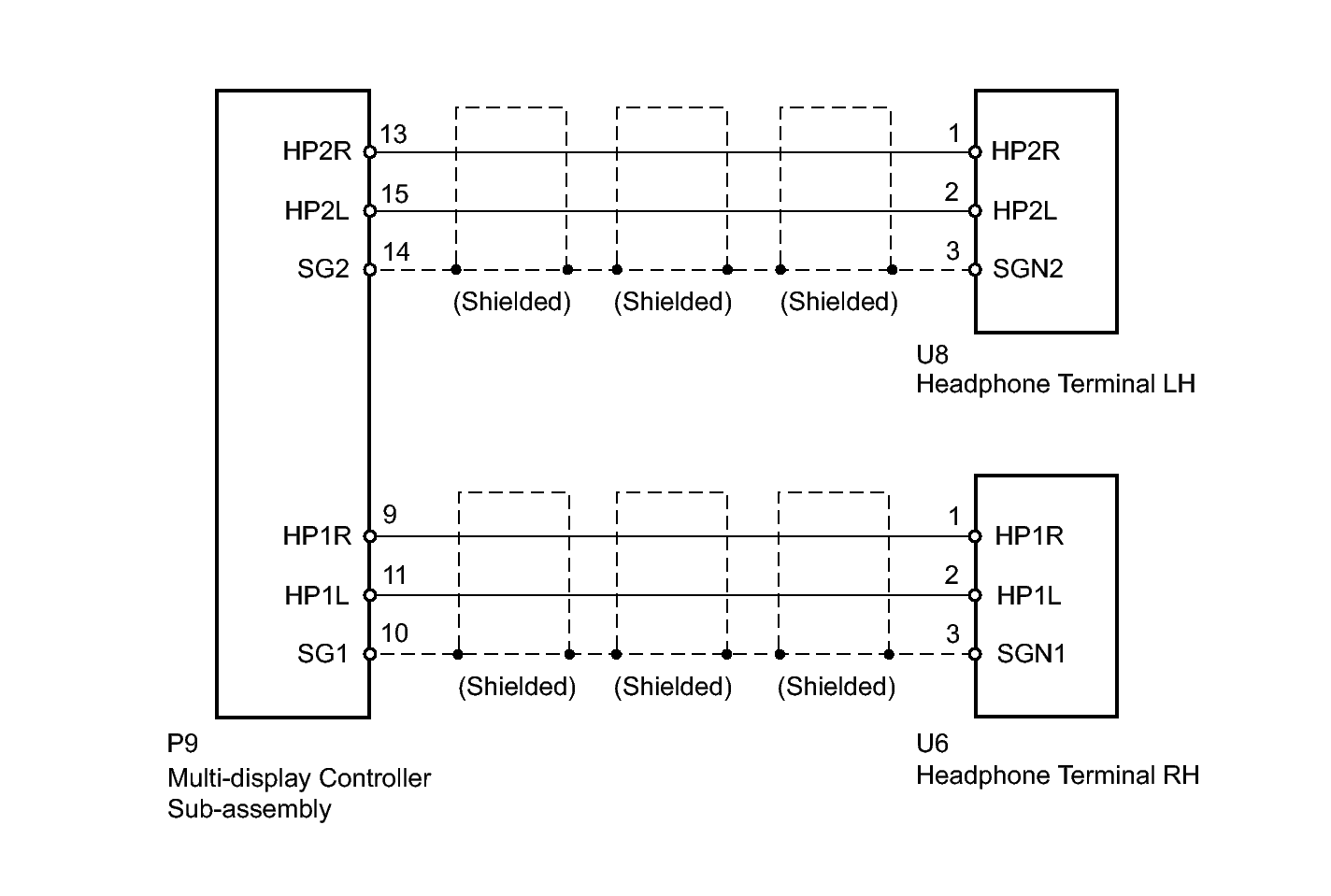

Fig 1: Sound Signal Circuit Wiring Diagram

GTY352981

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
