"CHK" message(s) are displayed on the SIGNAL CHECK screen.: Wiring Diagram

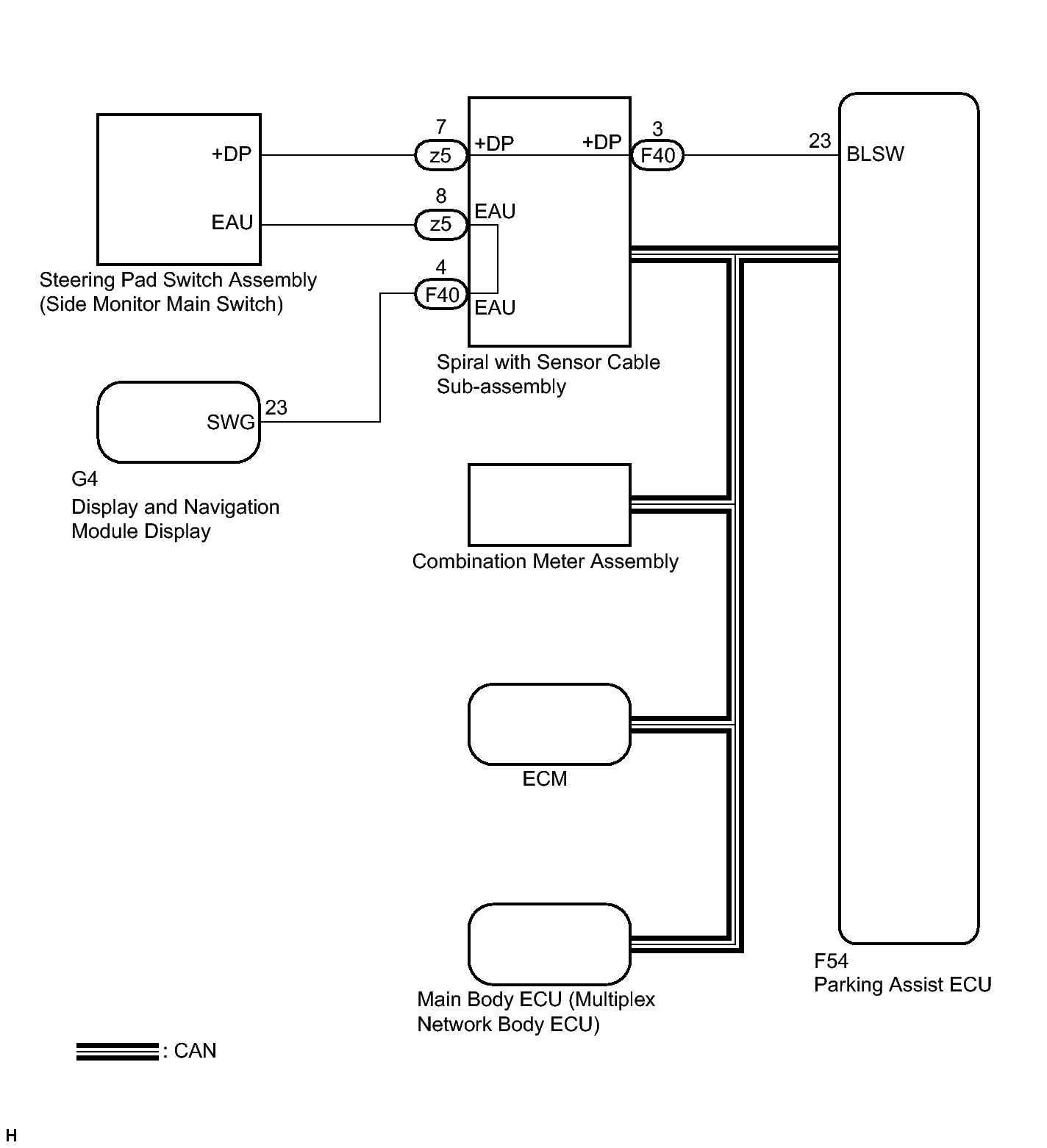

Fig 1: Identifying Signal Check screen Wiring Diagram

GTY285951

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
