Microphone Circuit between Microphone and Navigation ECU: Wiring Diagram

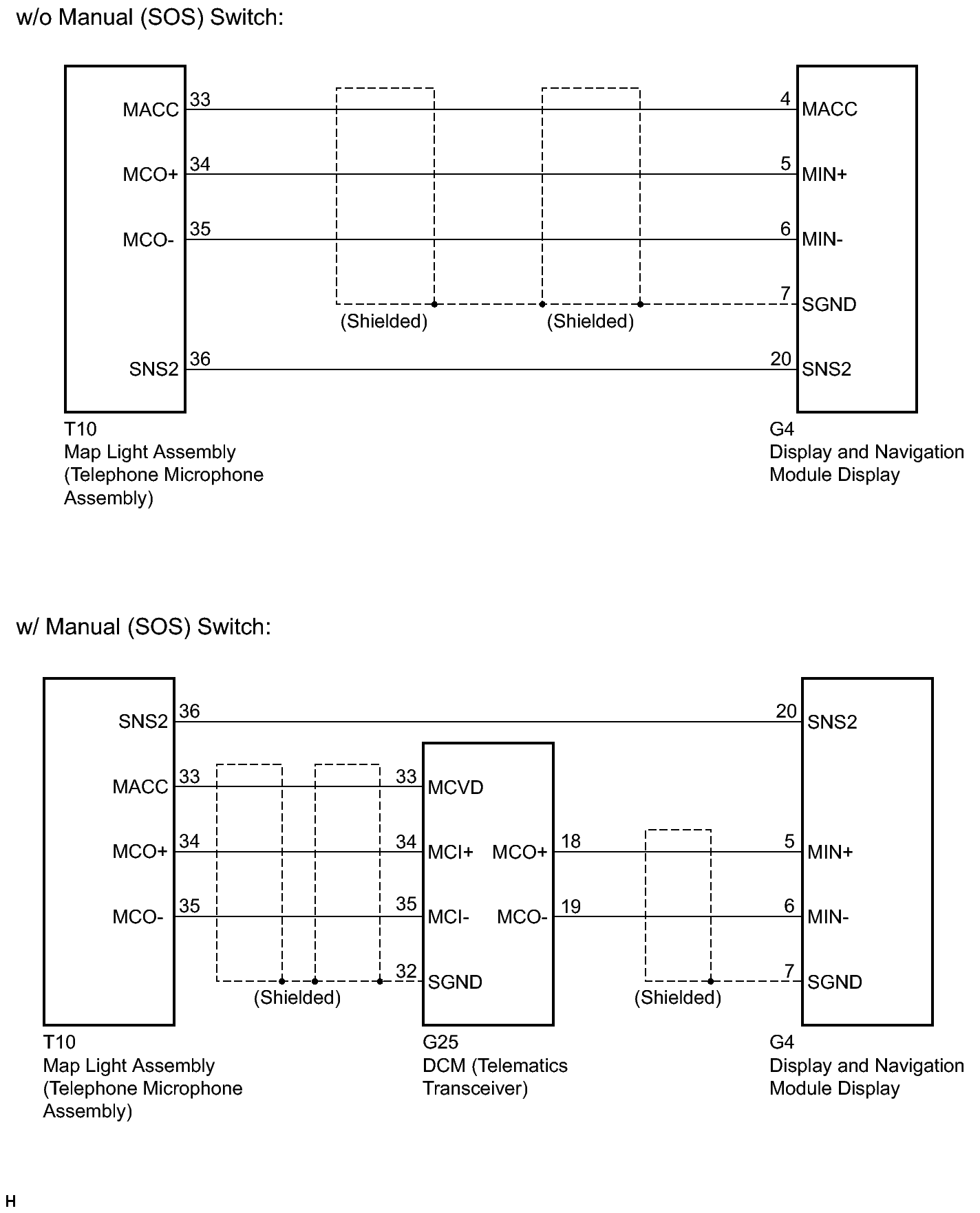

Fig 1: Identifying Microphone Circuit Wiring Diagram

GTY284652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
