DVD Image Signal Circuit between Radio Receiver and Navigation ECU: Wiring Diagram

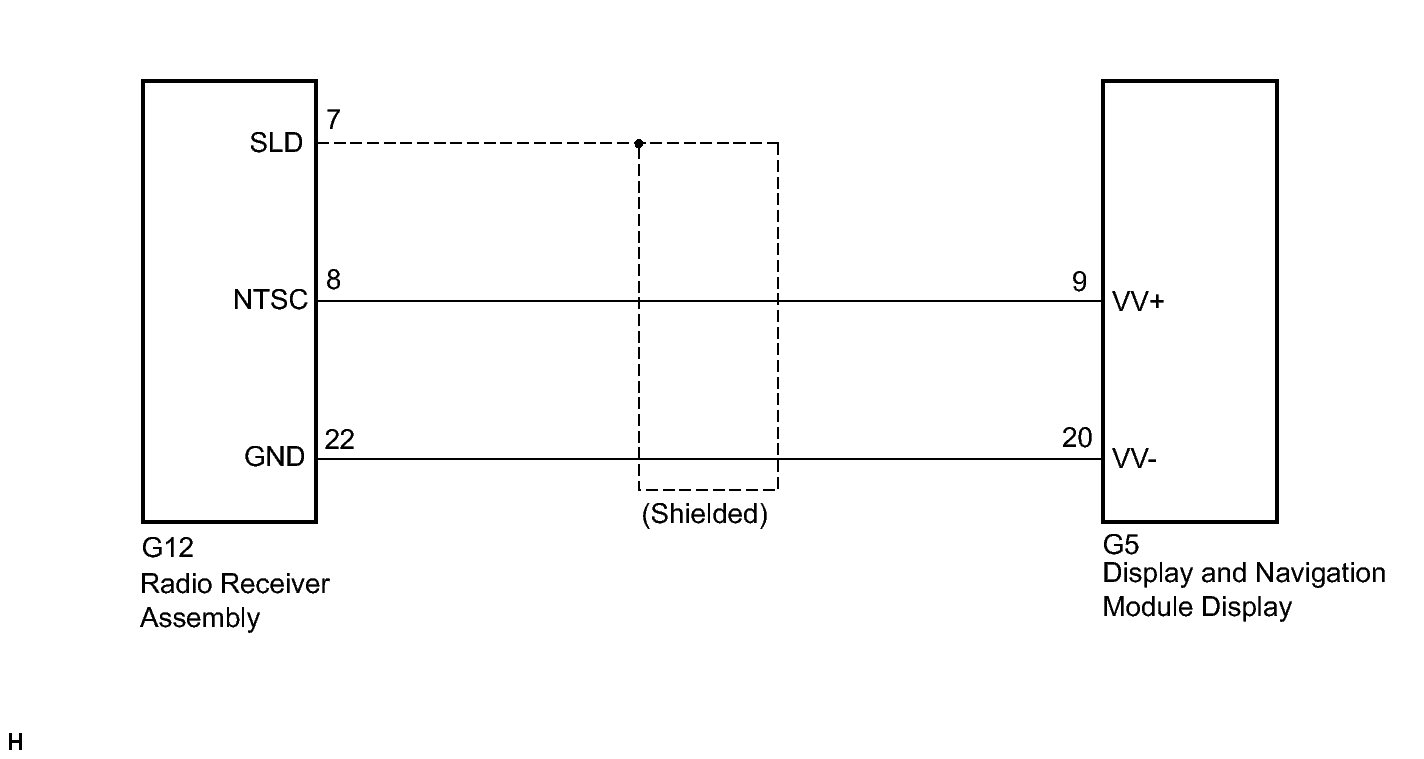

Fig 1: Identifying DVD Image Signal Circuit Wiring Diagram

GTY354304

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
