DTC B15D8: Monitor Disconnected: Wiring Diagram

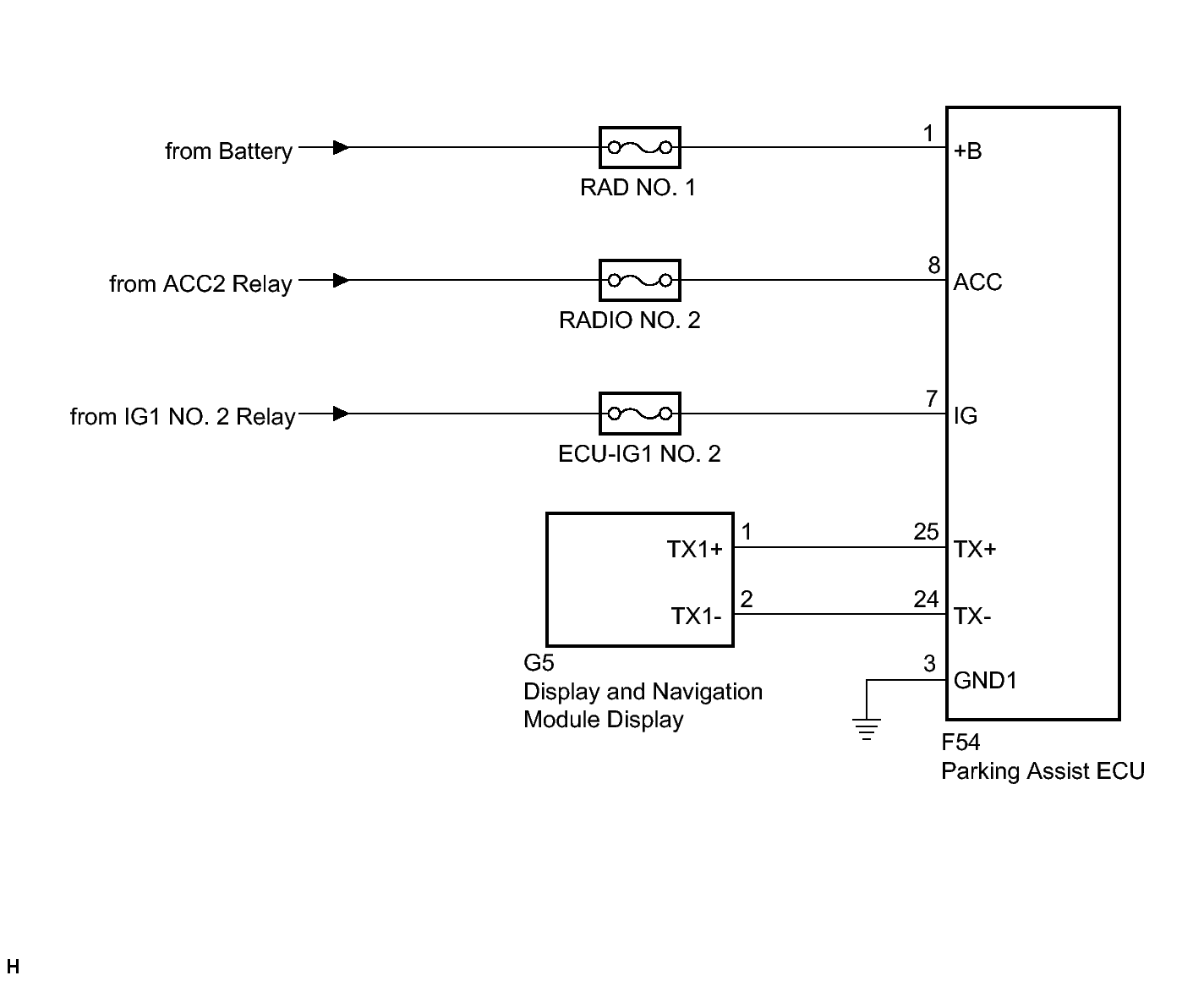

Fig 1: Identifying Monitor Wiring Diagram

GTY350464

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
