DTC B15D0: MOST Communication Malfunction: Wiring Diagram

  1. w/o Rear Seat Entertainment System

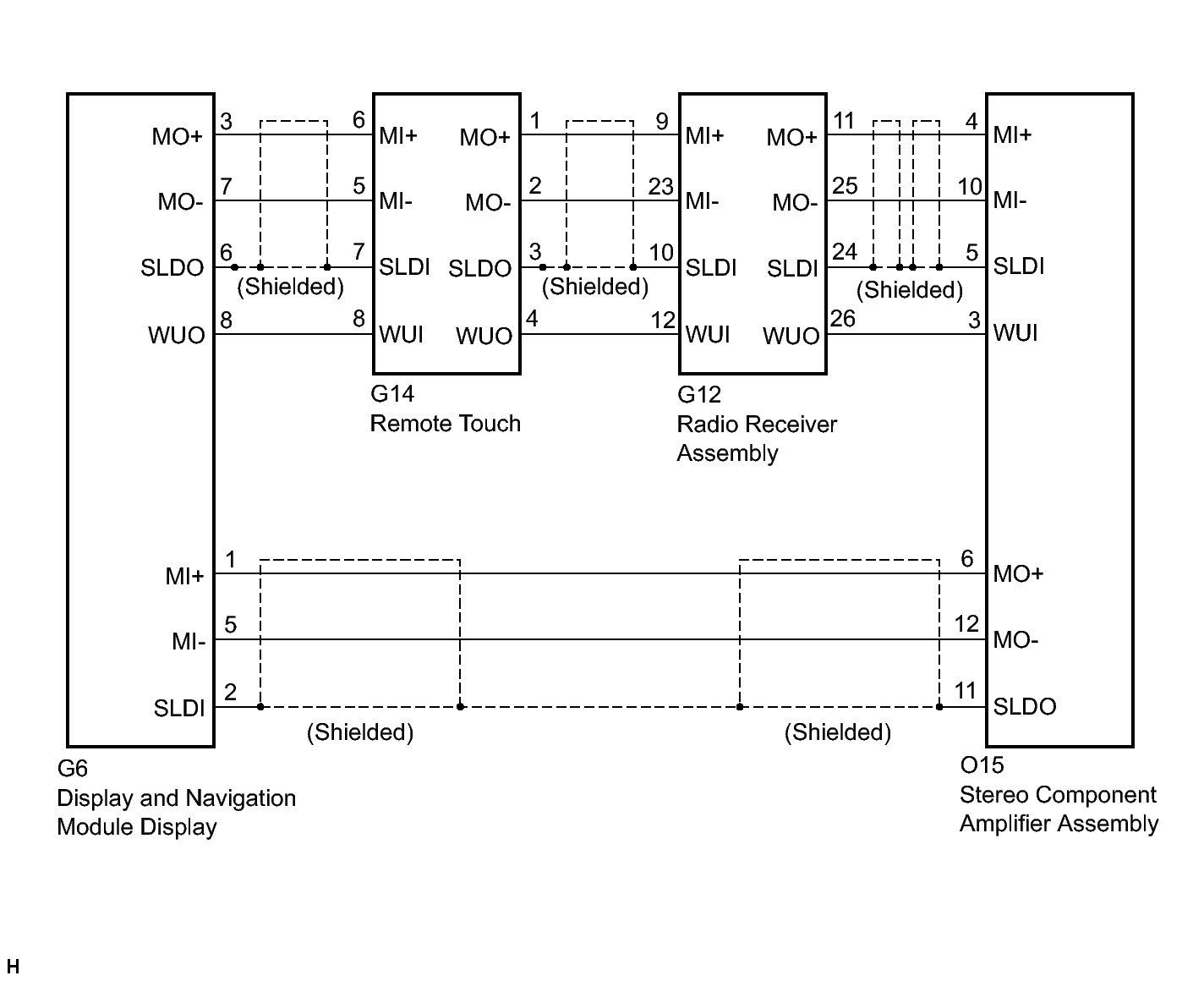

    Fig 1: Identifying MOST Communication Wiring Diagram (1 Of 2)
    GTY349758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Rear Seat Entertainment System

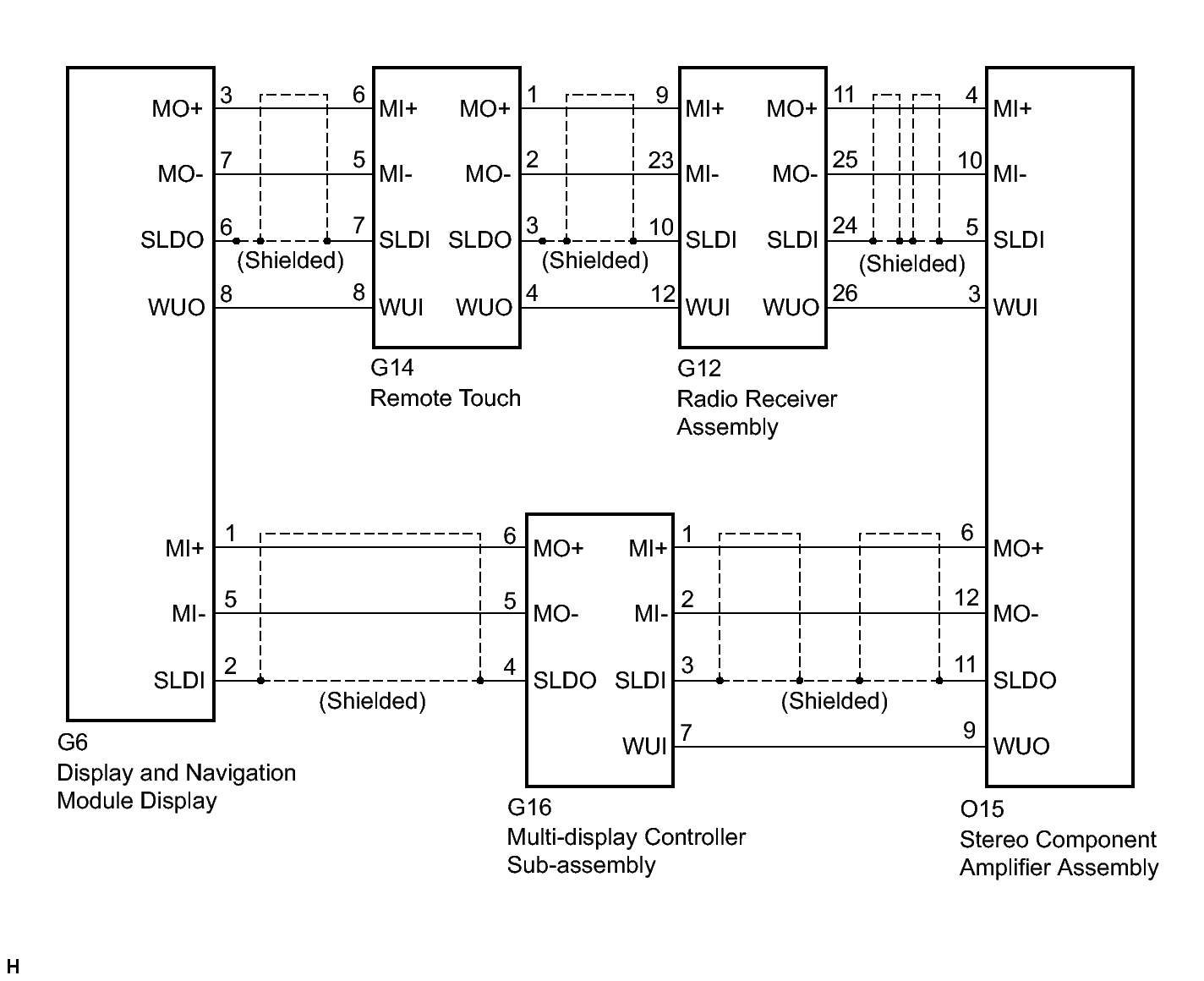

    Fig 2: Identifying MOST Communication Wiring Diagram (2 Of 2)
    GTY349298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
