DTC B159D: No Response from Operation Panel; DTC B15D9: Operation Panel Disconnected: Wiring Diagram

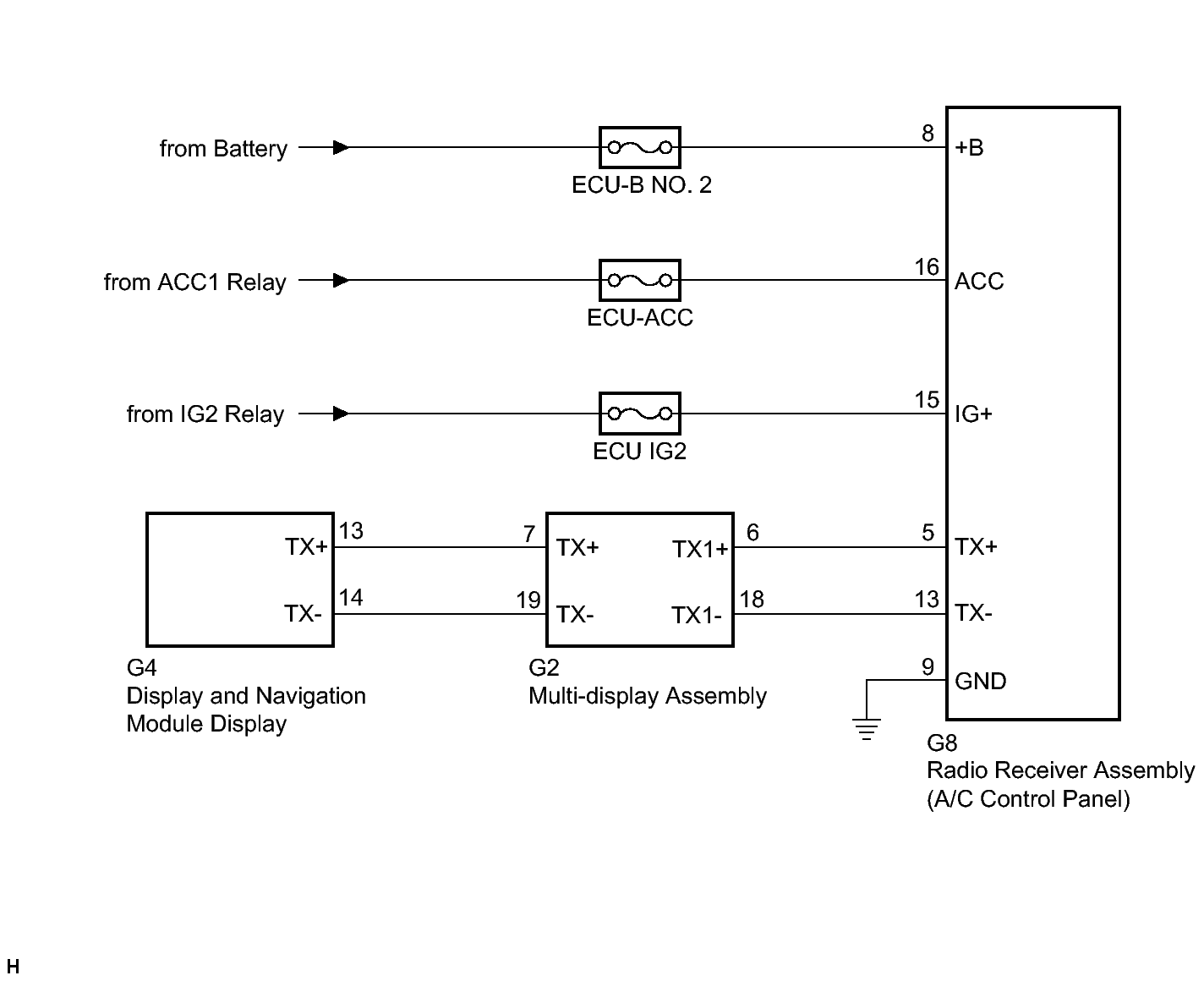

Fig 1: Identifying Operation Panel Wiring Diagram

GTY350198

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
