DTC B159C: No Response from Head Up Display; DTC B1567: Head Up Display Disconnected: Wiring Diagram

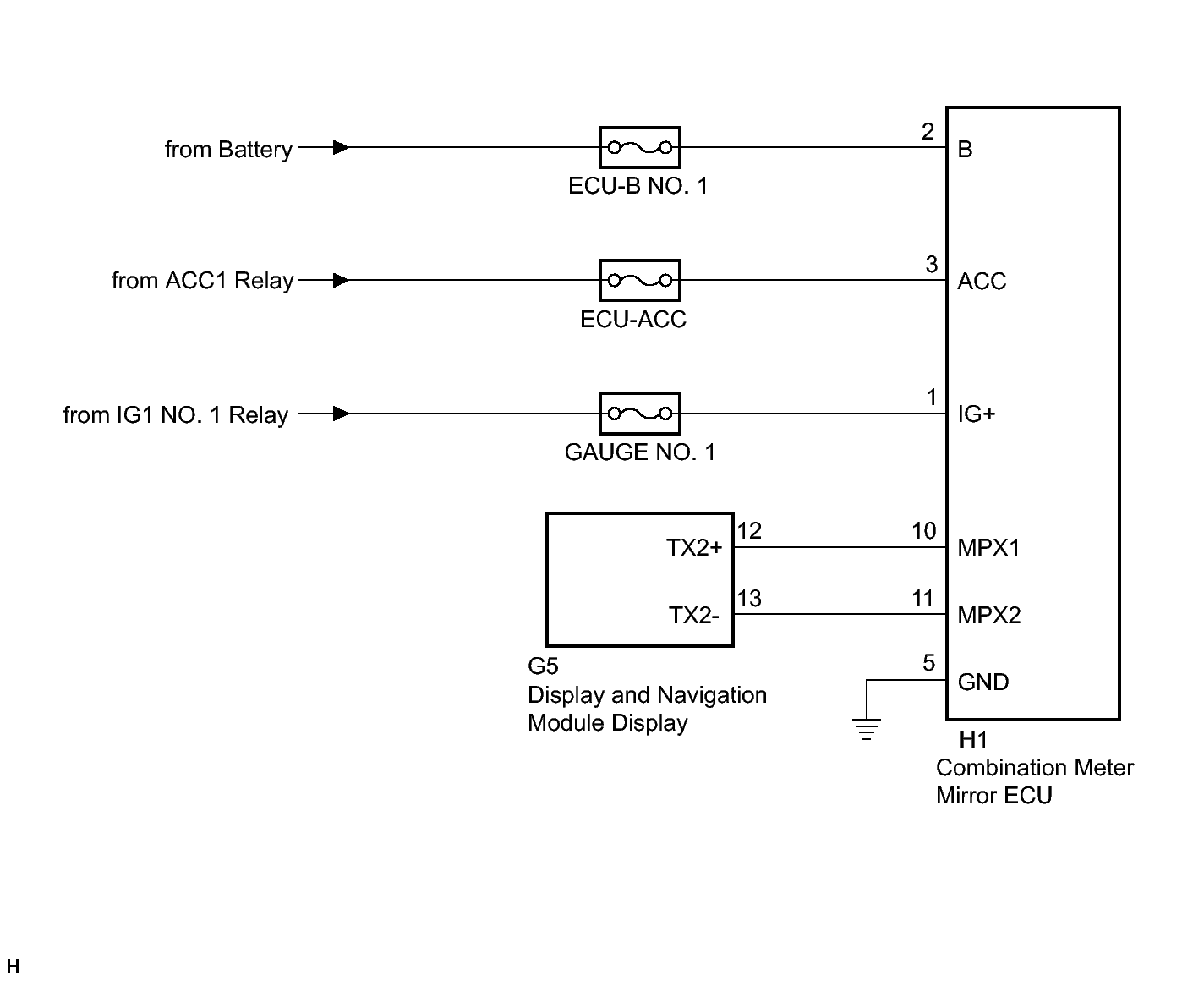

Fig 1: Identifying Head Up Display Wiring Diagram

GTY358434

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
