DTC B1596: No Response from Remote Touch; DTC B1563: Remote Touch Disconnected: Wiring Diagram

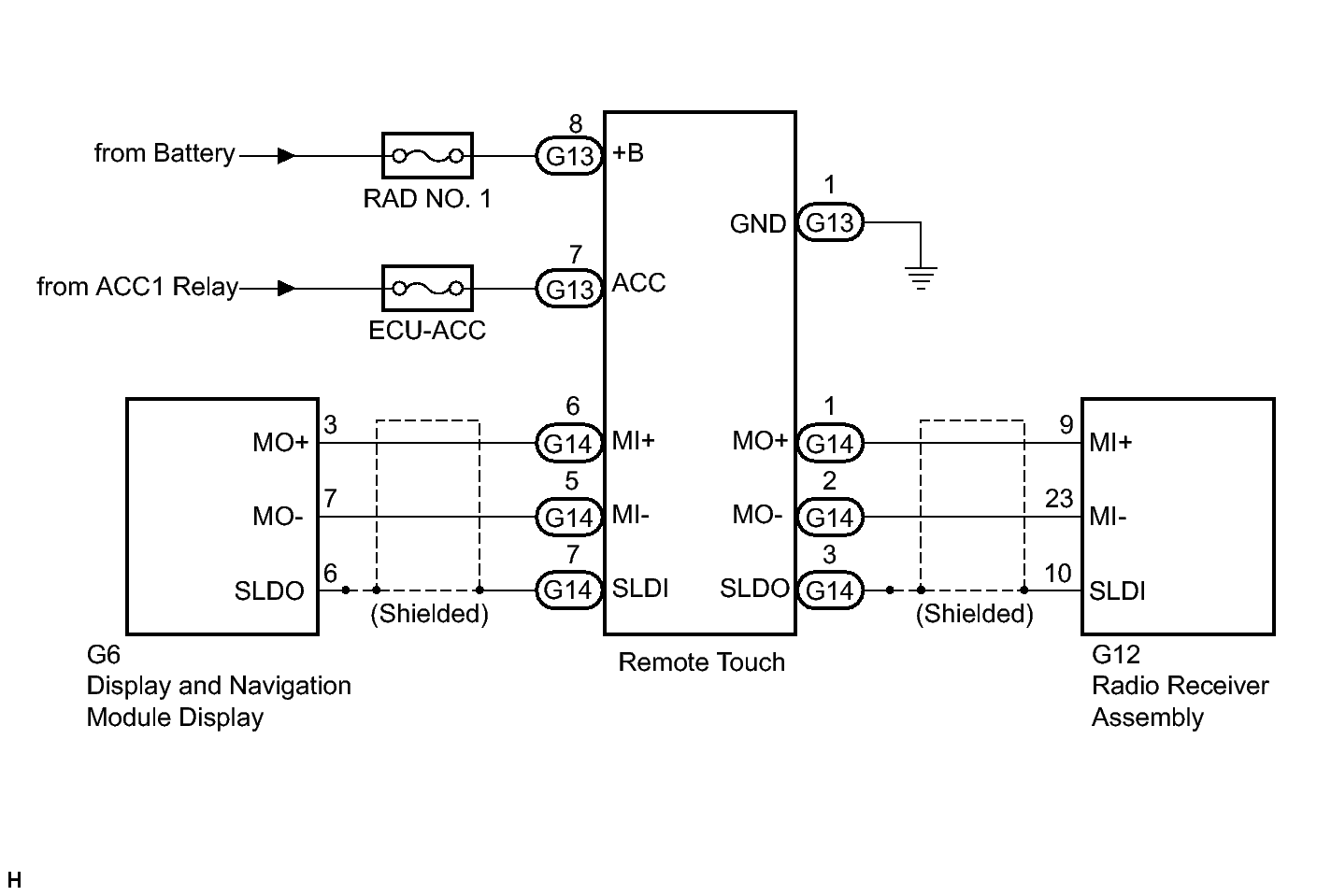

Fig 1: Identifying Remote Touch Wiring Diagram

GTY356293

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
