DTC B1595: No Response from Rear Seat Entertainment System; DTC B15D5: Rear Seat Entertainment System Disconnected: Wiring Diagram

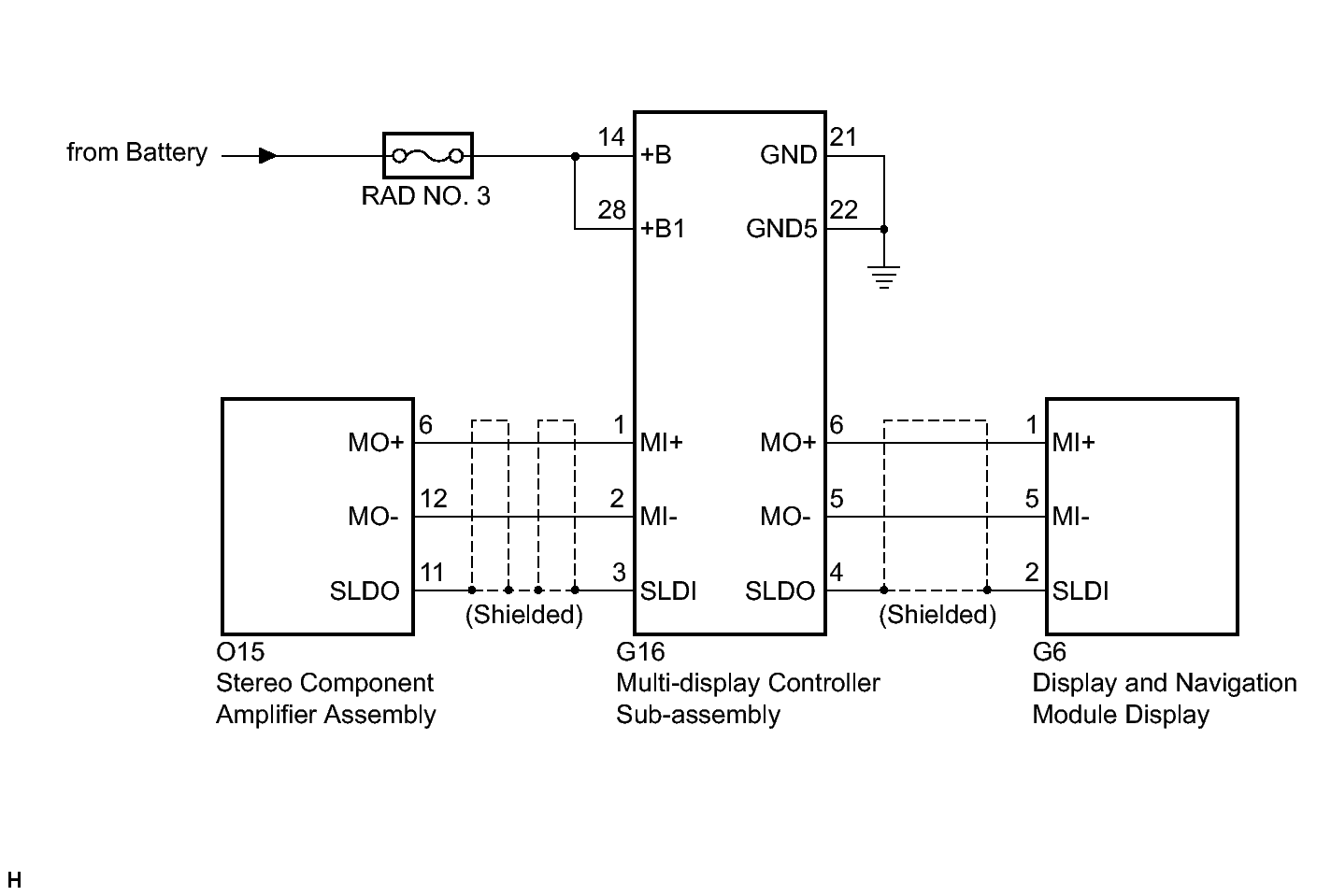

Fig 1: Identifying Rear Seat Entertainment System Wiring Diagram
GTY358214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
