Home >> Lexus >> 2011 >> RX 350 AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Navigation System (For HDD) (Diagnostic Codes & Symptom Tests) >> NAVIGATION SYSTEM (for HDD) >> DTC B1593: No Response from Stereo Component Amplifier; DTC B15D3: Stereo Component Amplifier Disconnected >> Wiring Diagram

DTC B1593: No Response from Stereo Component Amplifier; DTC B15D3: Stereo Component Amplifier Disconnected: Wiring Diagram

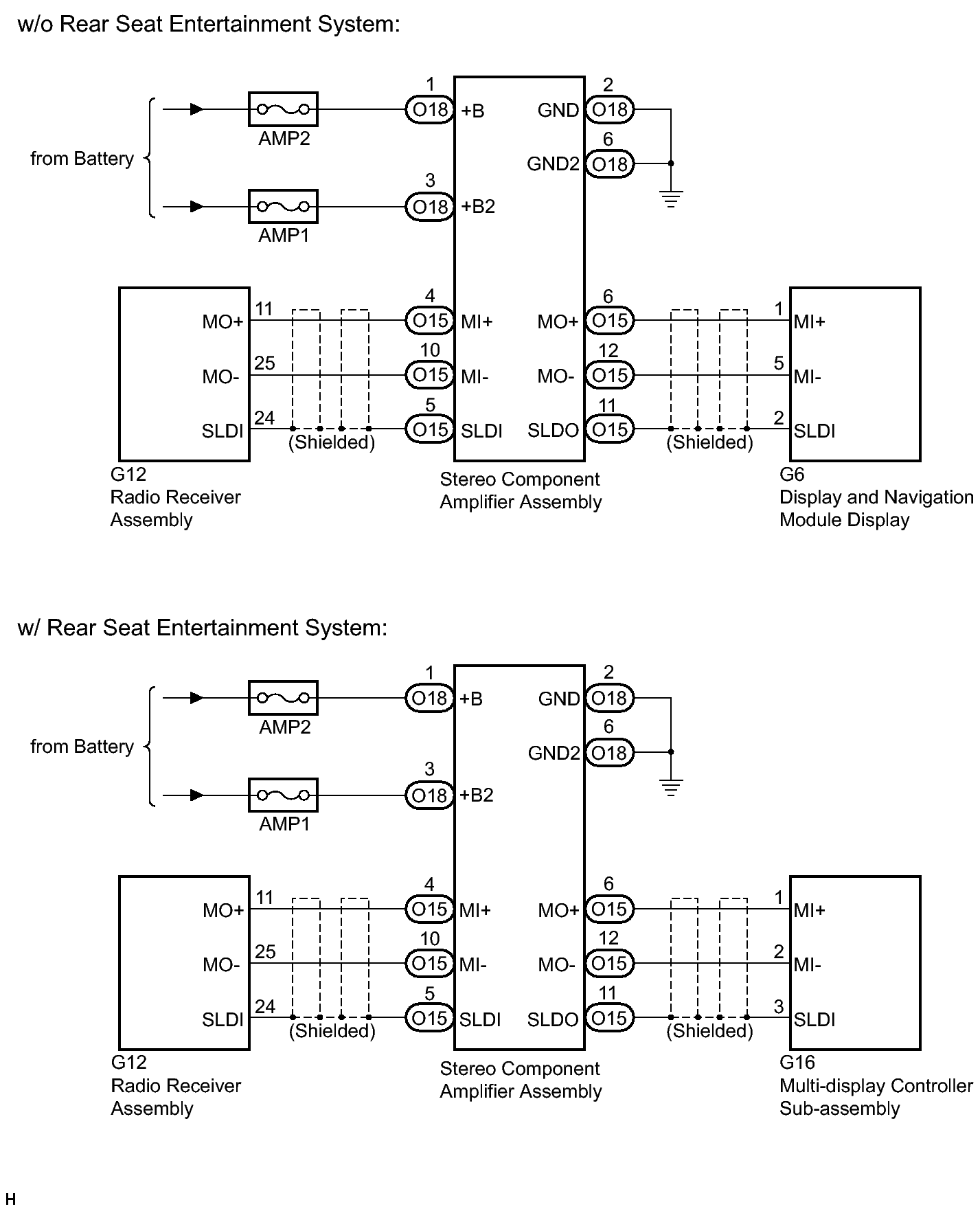

Fig 1: Identifying Stereo Component Amplifier Wiring Diagram
GTY358231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
