DTC B1591: No Response from Audio HU; DTC B15D1: Audio HU Disconnected: Wiring Diagram

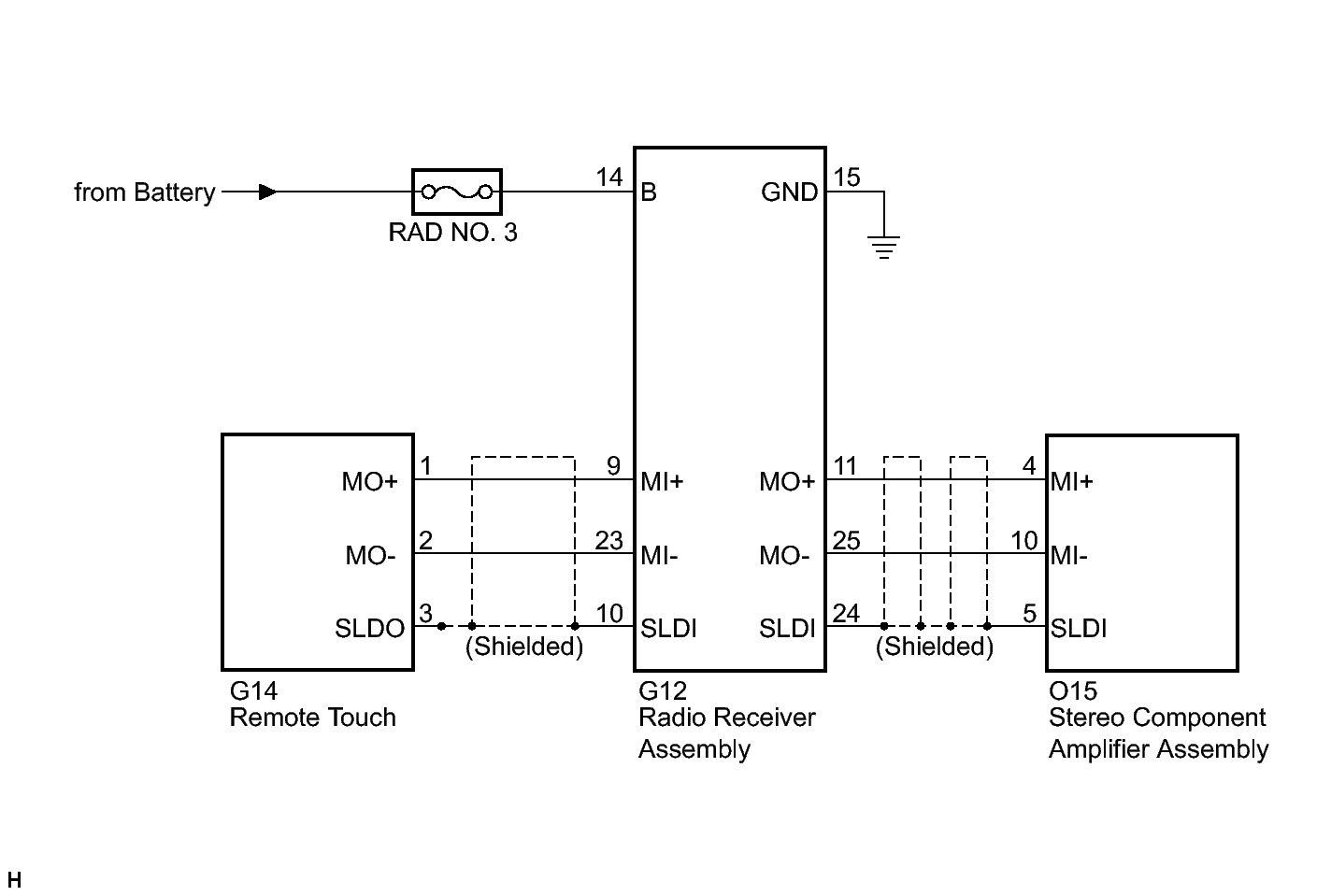

Fig 1: Identifying Audio HU Wiring Diagram

GTY351708

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
