Switch Lights of Remote Touch do not Illuminate: Wiring Diagram

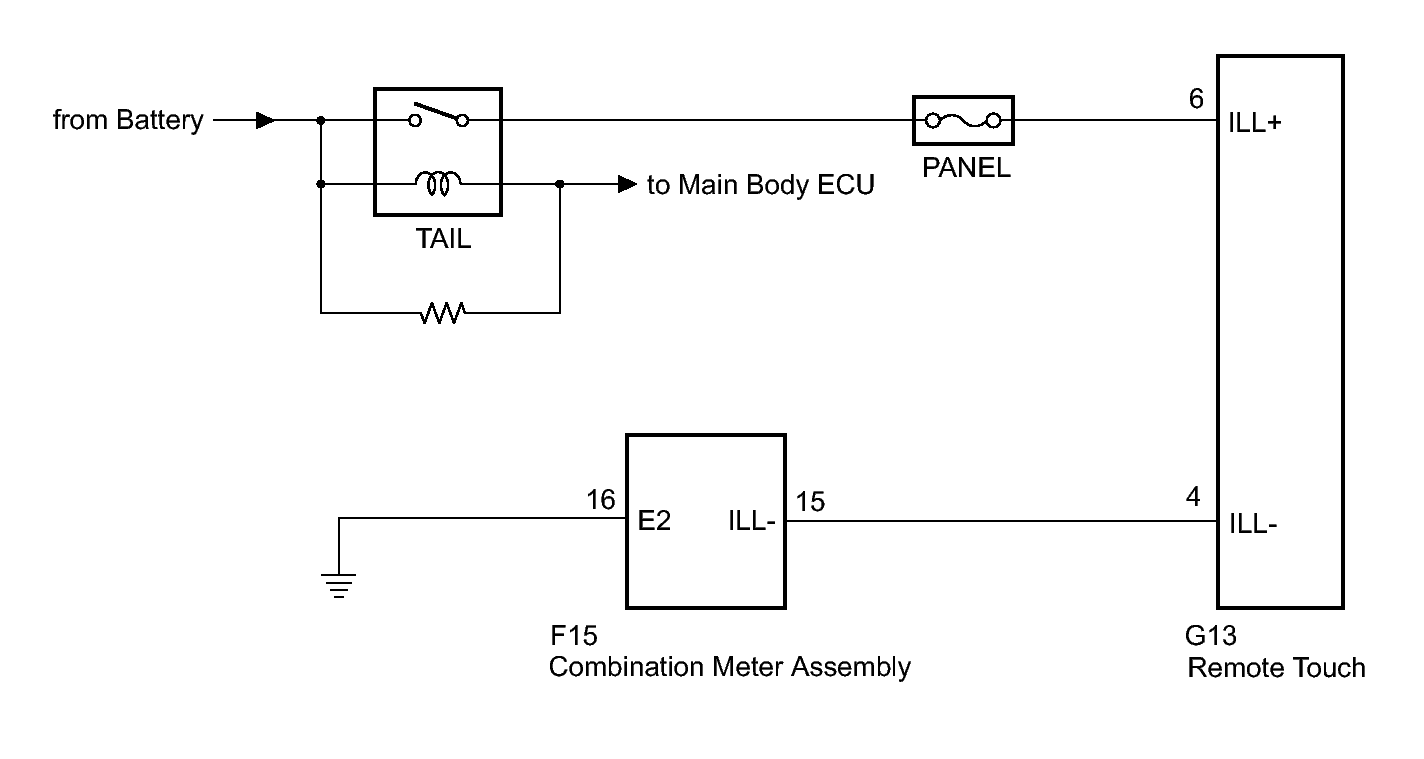

Fig 1: Identifying Switch Lights Wiring Diagram

GTY348479

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
