DTC B15D0: MOST Communication Malfunction: Wiring Diagram

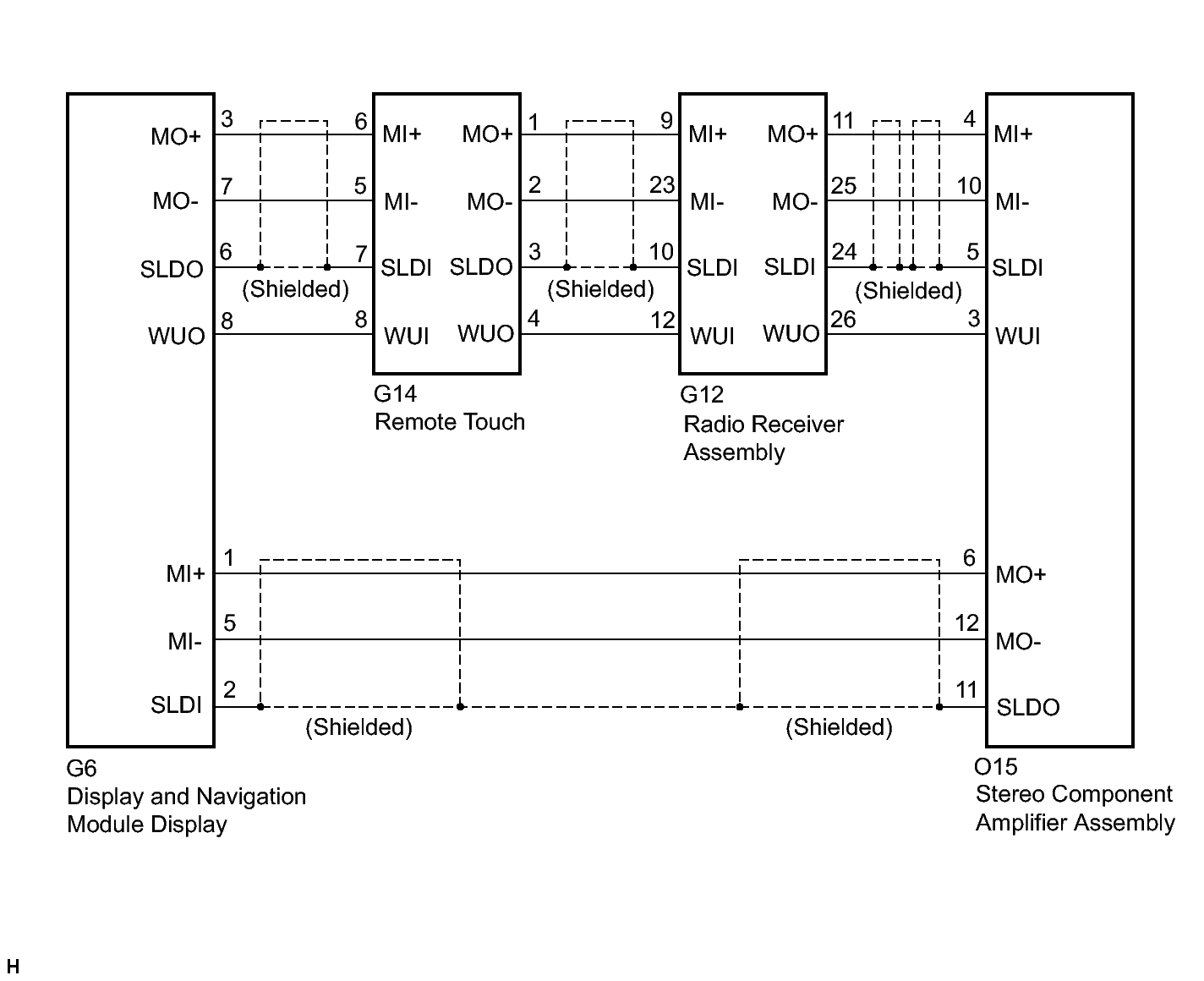

Fig 1: Identifying MOST Communication Wiring Diagram

GTY350775

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
