DTC B1568: Clock Device Disconnected; DTC B159D: No Response from Operation Panel; DTC B159E: No Response from Clock Device; DTC B15D9: Operation Panel Disconnected: Wiring Diagram

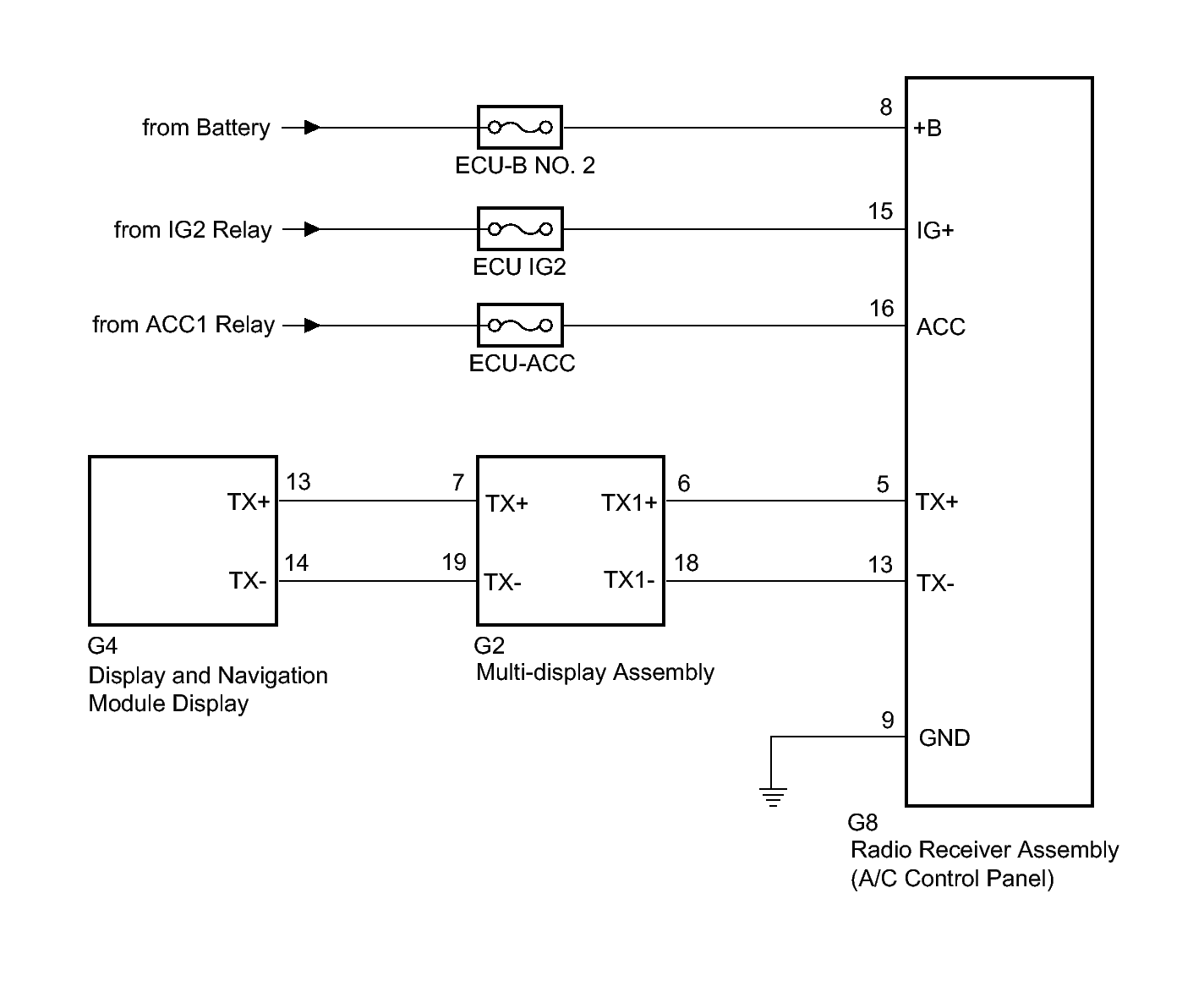

Fig 1: Identifying Clock Device Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
