DTC B1567: Head Up Display Disconnected; DTC B159C: No Response from Head Up Display: Wiring Diagram

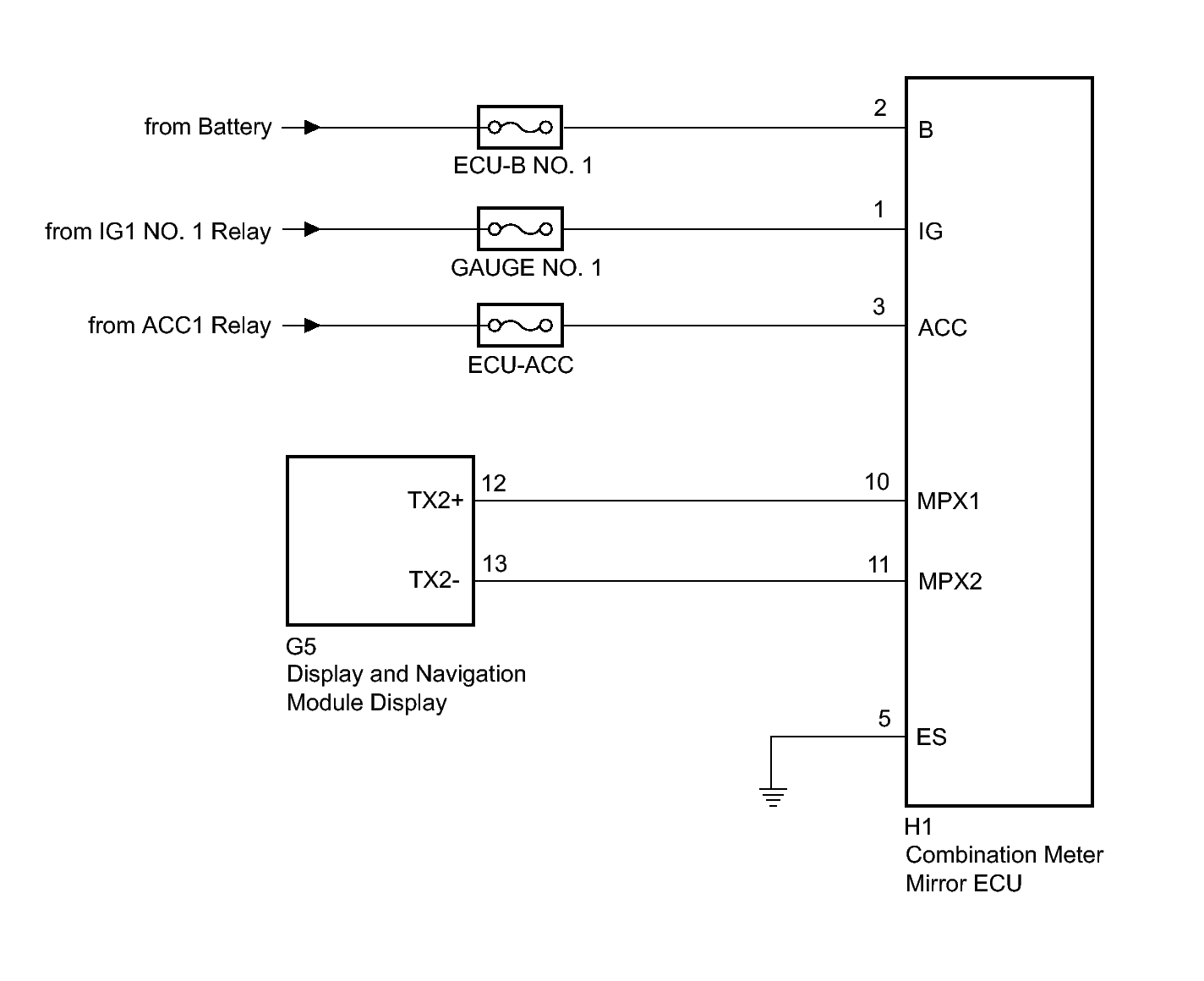

Fig 1: Identifying Head Up Display Wiring Diagram

GTY356801

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
