DTC B1563: Remote Touch Disconnected; DTC B1596: No Response from Remote Touch: Wiring Diagram

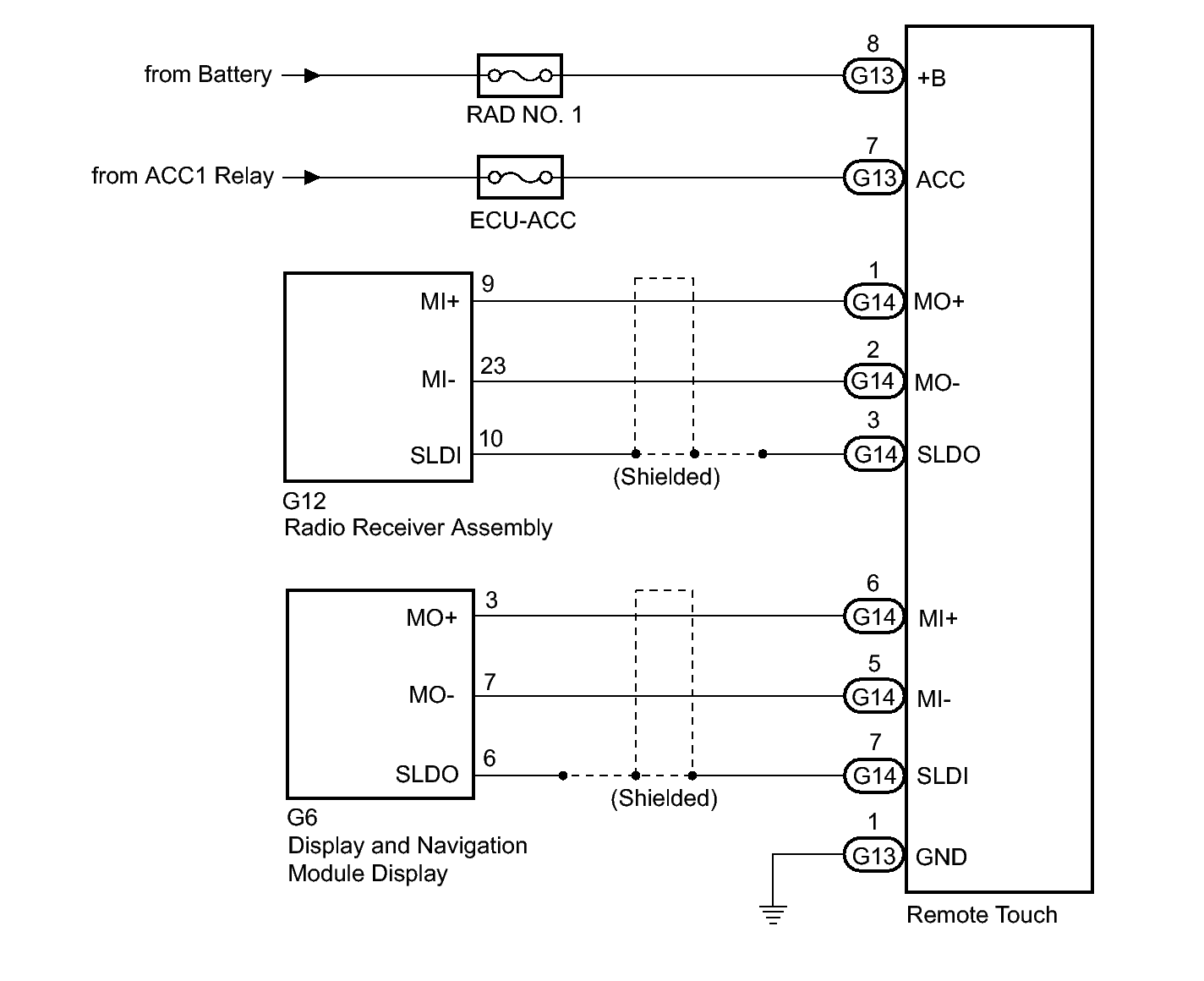

Fig 1: Identifying Remote Touch Wiring Diagram

GTY359559

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
