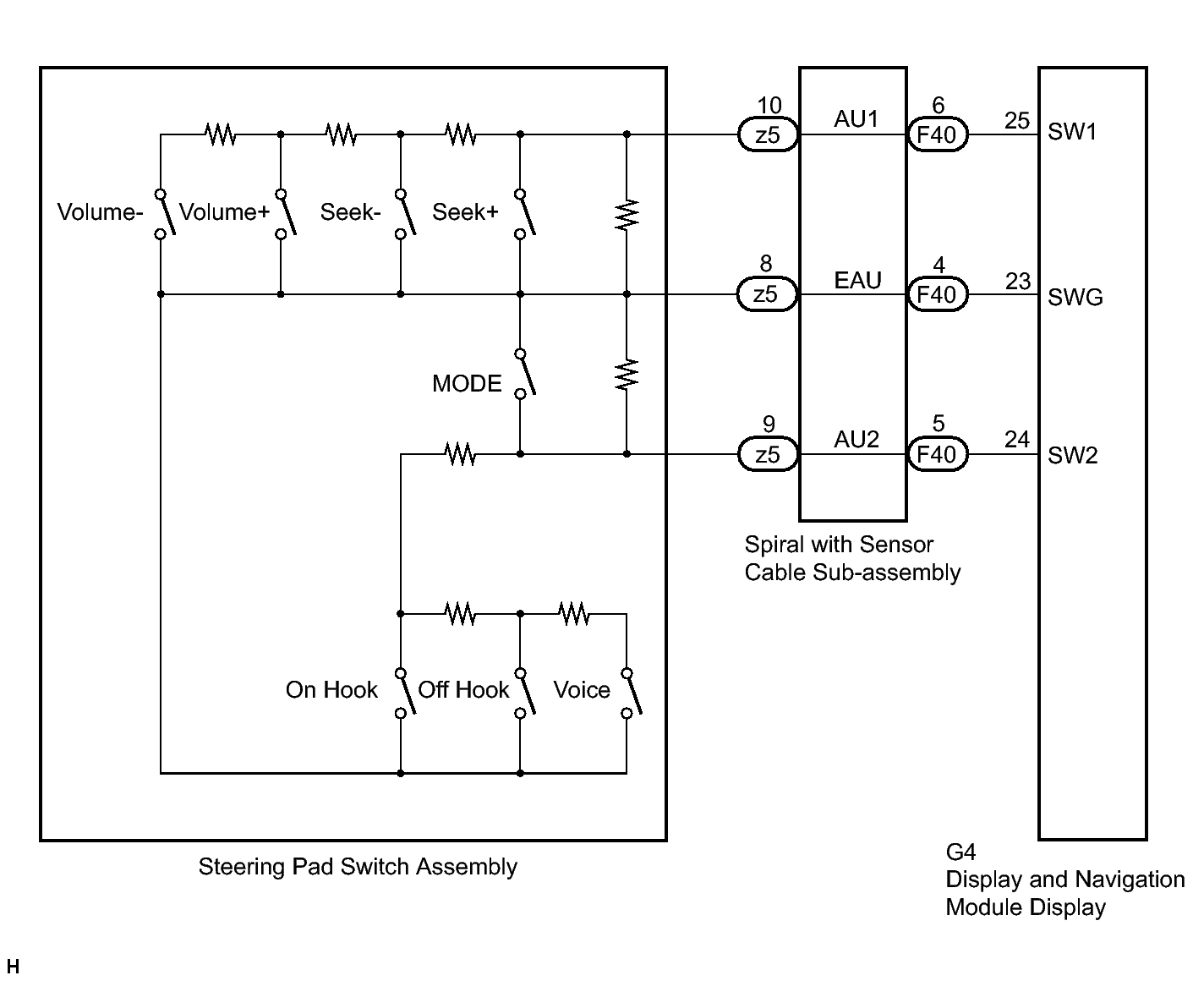

Home >> Lexus >> 2011 >> RX 350 AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Navigation System (For DVD) (Diagnostic Codes & Symptom Tests) >> NAVIGATION SYSTEM (for DVD) >> Circuit Tests >> Steering Pad Switch Circuit >> Wiring Diagram
