Parts Location: Illustration

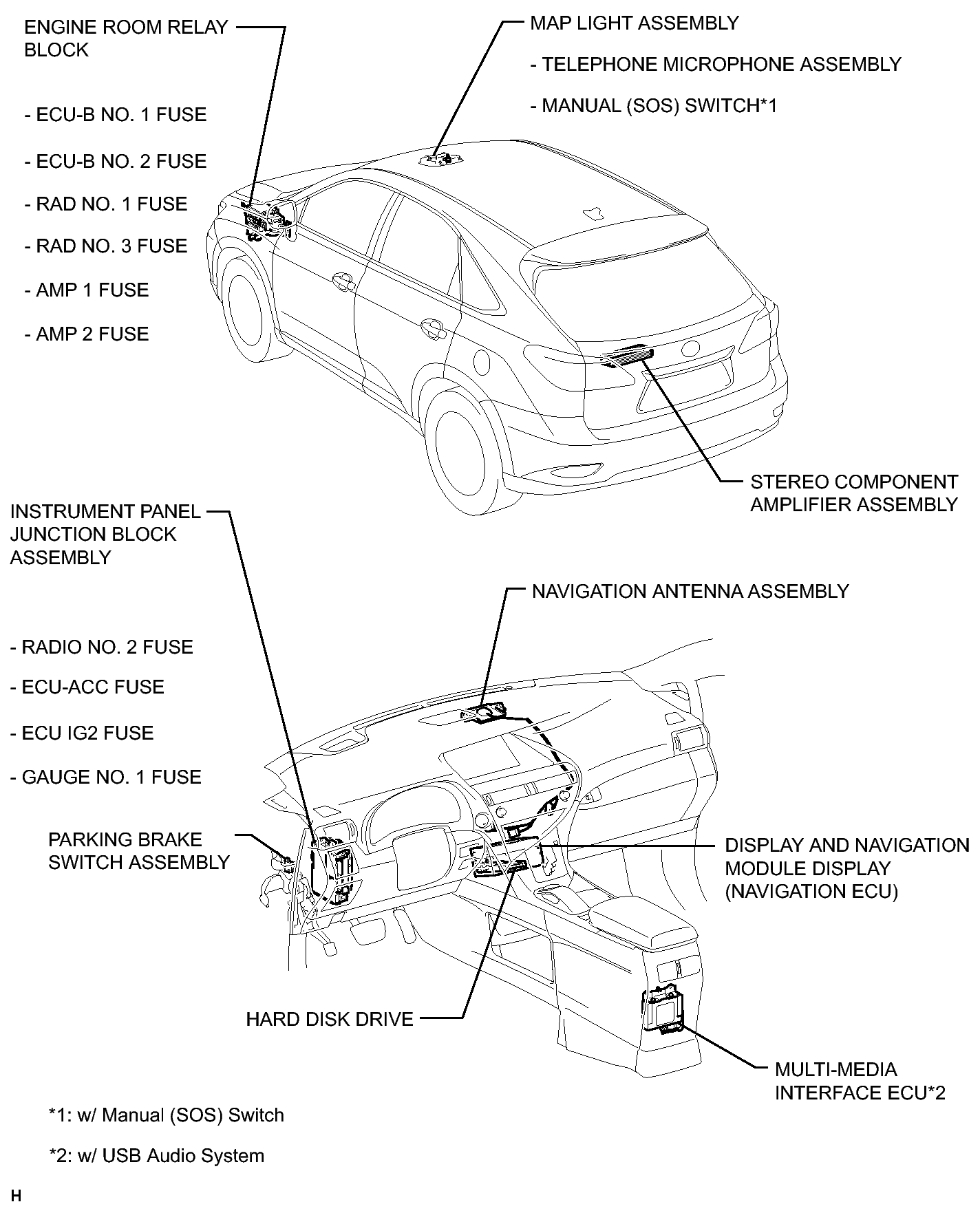

Fig 1: Identifying Navigation System (For HDD) Components Location (1 Of 2)
GTY257112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


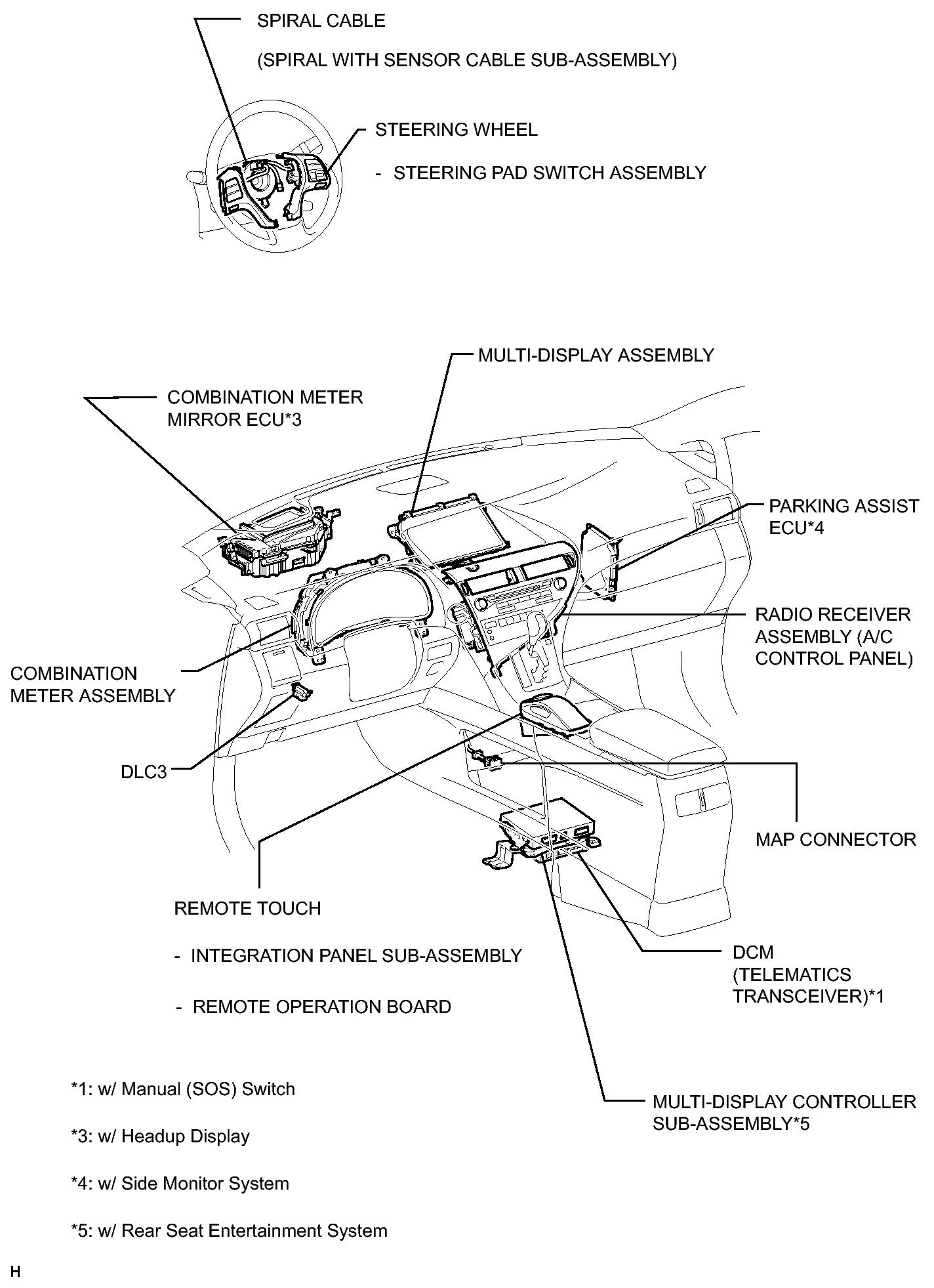

Fig 1: Identifying Navigation System (For HDD) Components Location (2 Of 2)
GTY275465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
