System Diagram

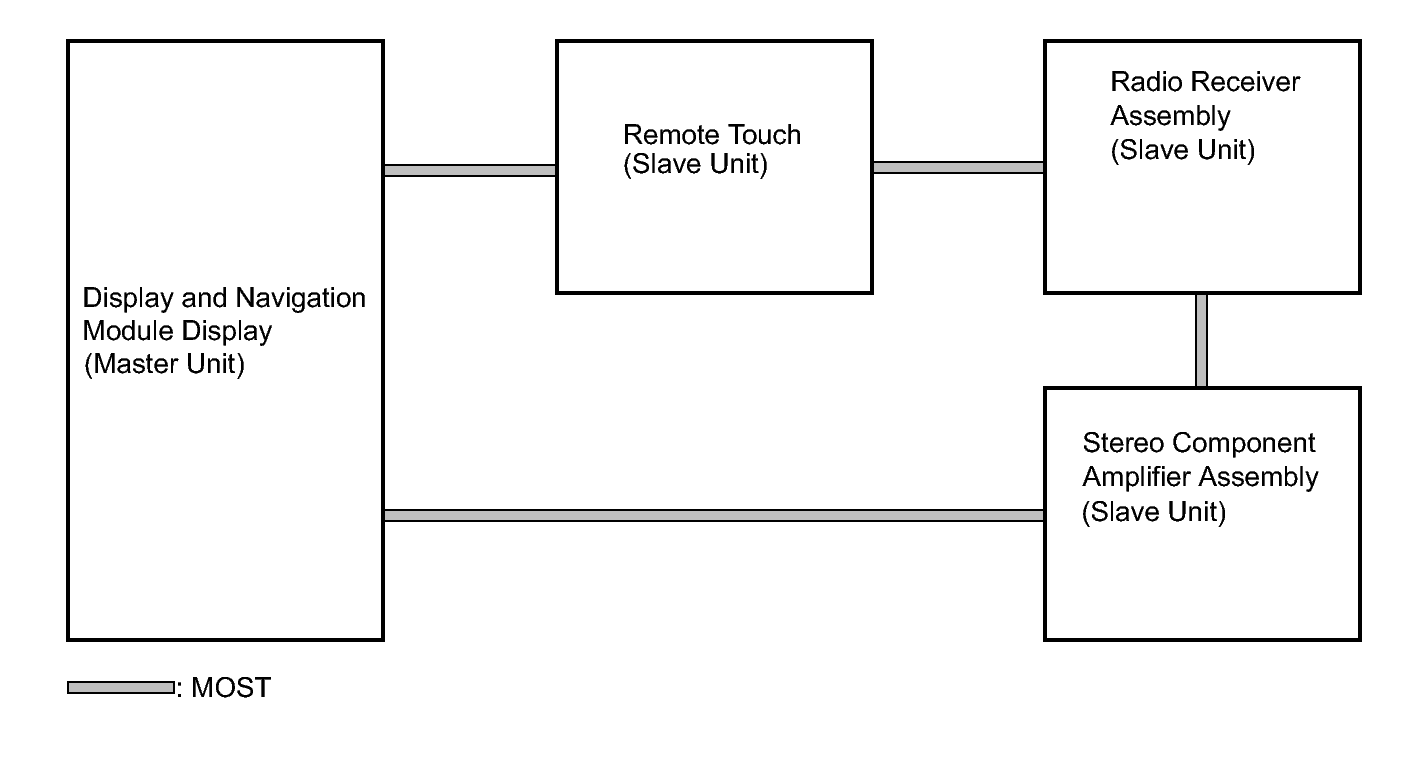

  1. MOST Communication Line
    Fig 1: Identifying Navigation System Diagram (For DVD) (1 Of 3)
    GTY351991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

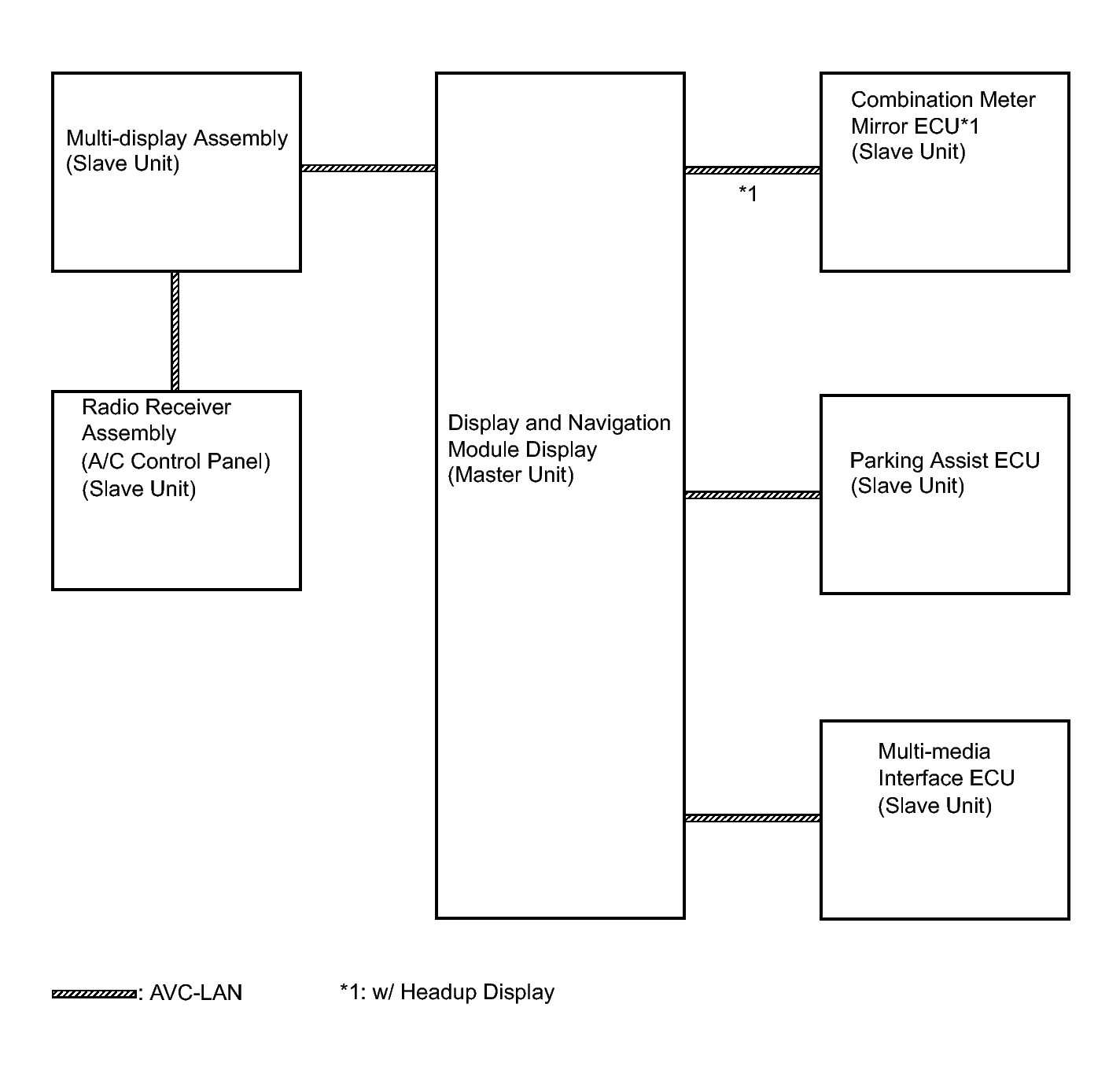

  2. AVC-LAN Communication Line
    Fig 2: Identifying Navigation System Diagram (For DVD) (2 Of 3)
    GTY280634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

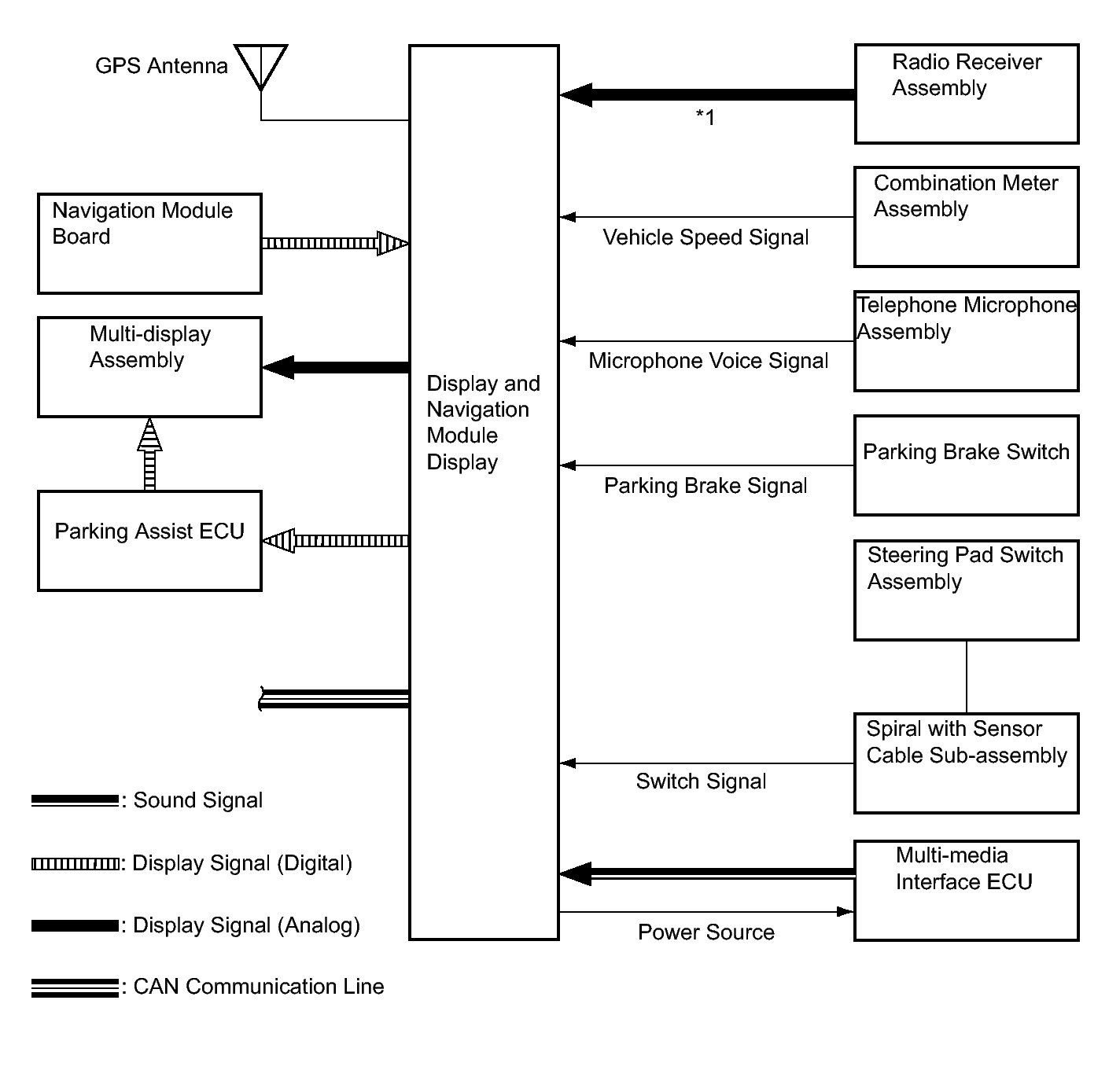

  3. Others
    Fig 3: Identifying Navigation System Diagram (For DVD) (3 Of 3)
    GTY356086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
