Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter: Wiring Diagram

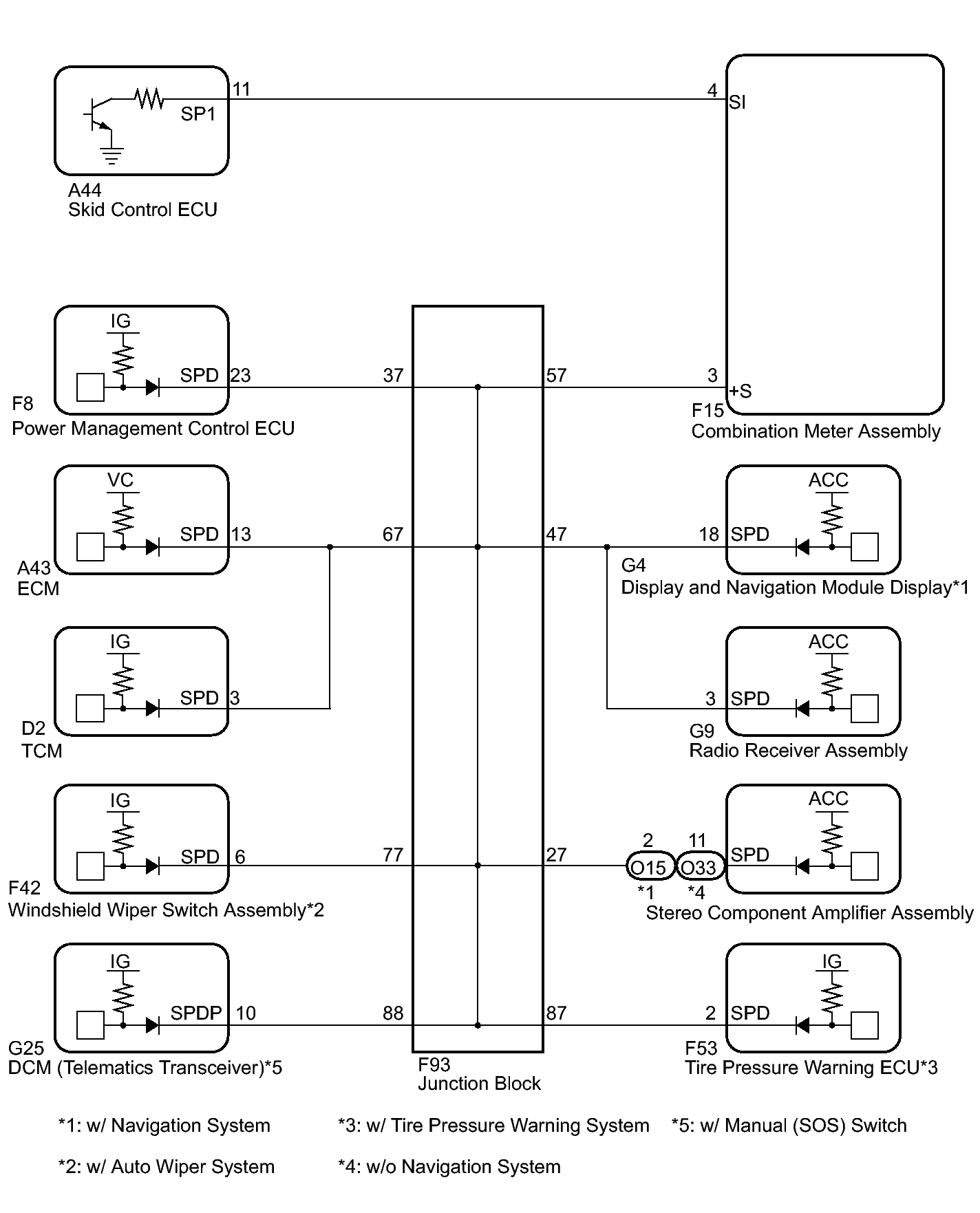

Fig 1: Identifying Vehicle Speed Signal Circuit Wiring Diagram
GTY280147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
