Speaker Circuit: Wiring Diagram

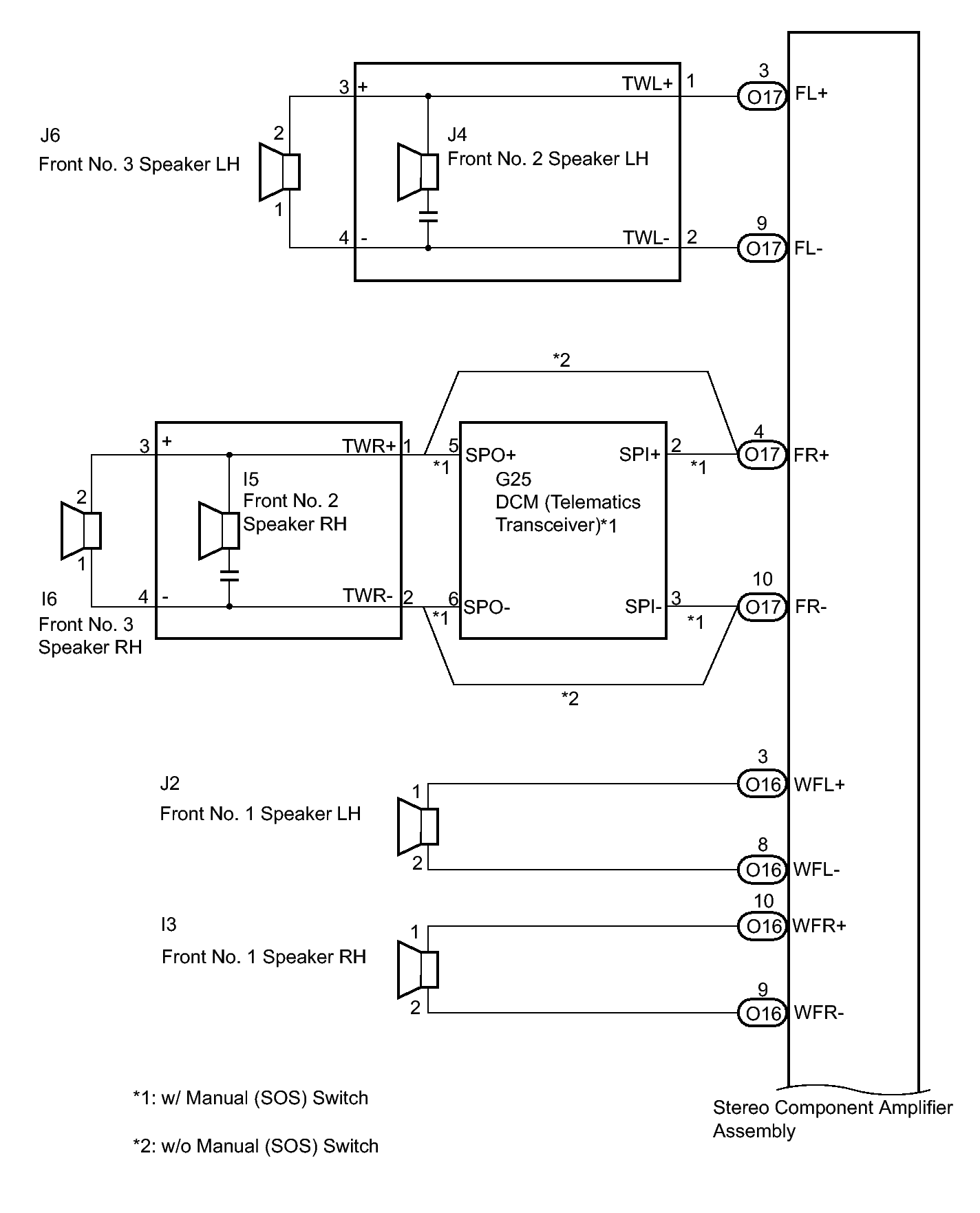

Fig 1: Identifying Speaker Output Wiring Diagram (1 Of 2)
GTY277633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

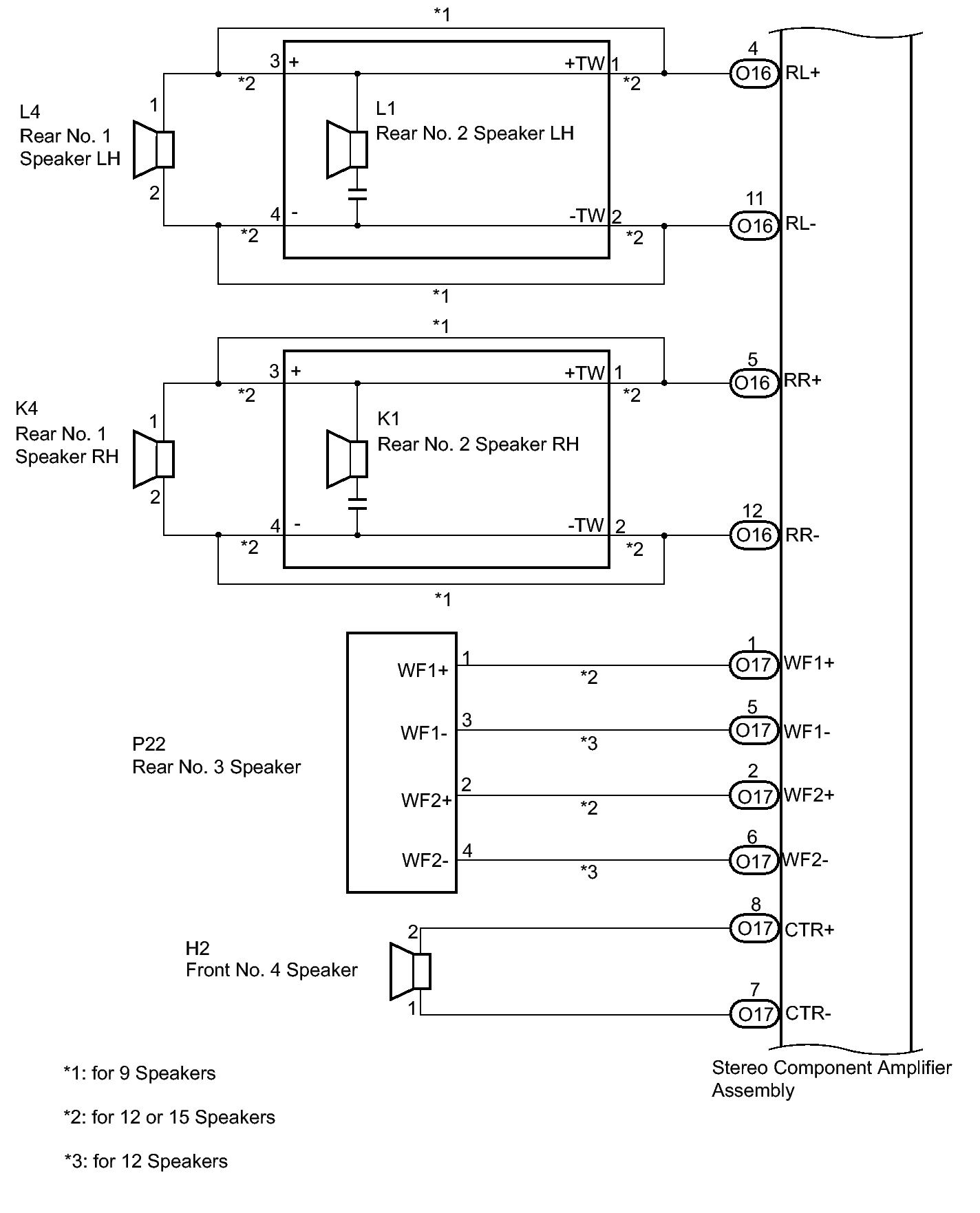

Fig 2: Identifying Speaker Circuit Wiring Diagram (2 Of 3)
GTY278003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

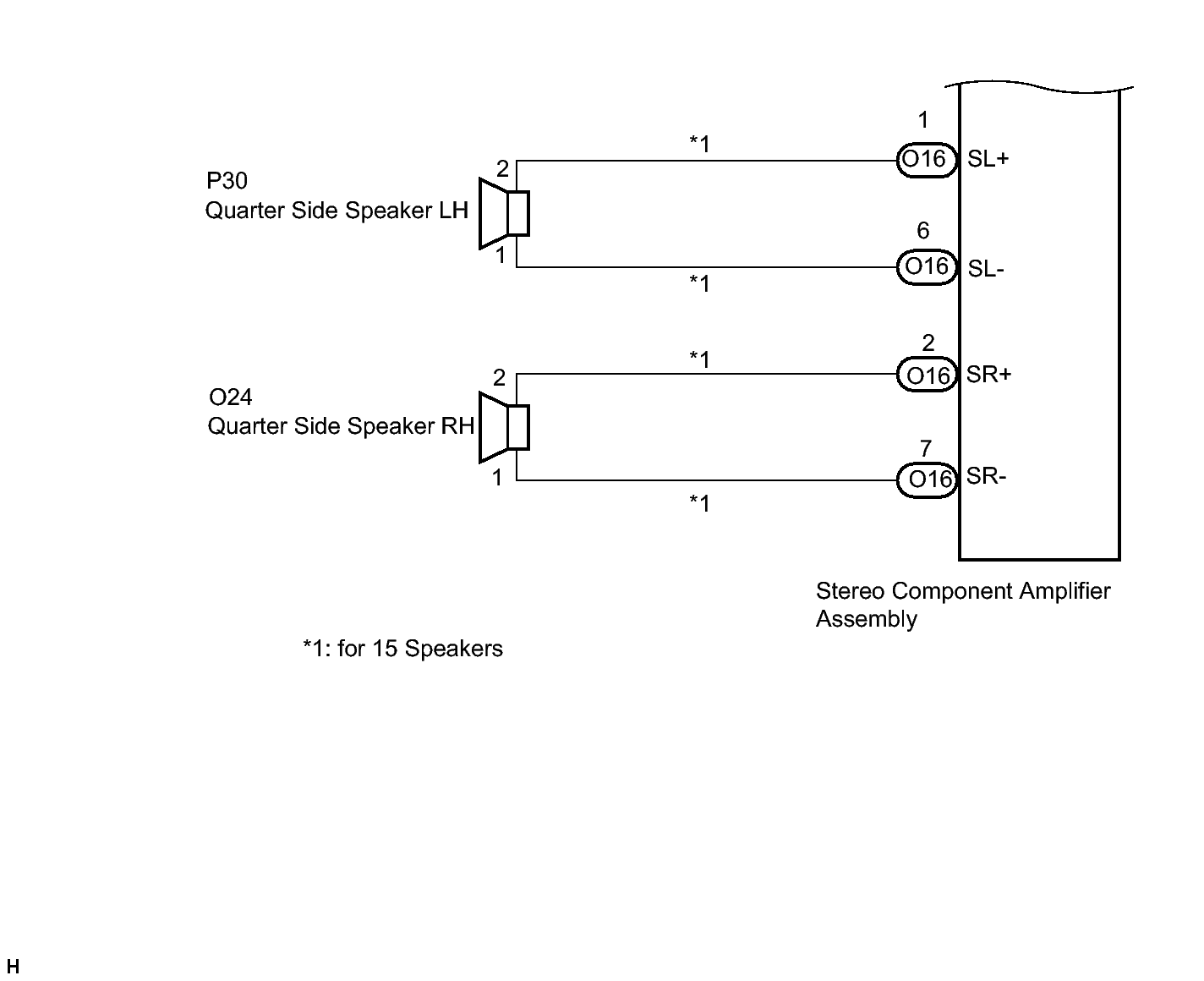

Fig 3: Identifying Speaker Circuit Wiring Diagram (3 Of 3)
GTY356166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
